Anti Terrorist Vehicle Scanning Inspection System For Checkpoints / Police / Border

Anti Terrorist Vehicle Scanning Inspection System For Checkpoints / Police / Border
Anti Terrorist Vehicle Scanning Inspection System For Checkpoints / Police / Border
video play

Large Image :  Anti Terrorist Vehicle Scanning Inspection System For Checkpoints / Police / Border

Product Details:
Place of Origin: CHINA
Brand Name: SECUPLUS
Certification: CE, ISO9001, FCC, ROHS
Model Number: SPV-3300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: wooden box
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 set per month
Detailed Product Description
Material: Stainless Steel Water Proof: IP68
Function: To Check Bomb In Vehicles Scanning Image: B/W, Color
Software: Multi-language Support Camera: Color
Technical Training: Free Warranty: 18 Months
High Light:

under vehicle inspection systems

,

under vehicle monintor machine

Anti Terrorist Vehicle Scanning Inspection System For Checkpoints / Police / Border

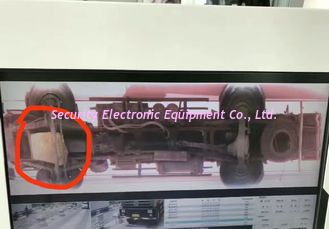

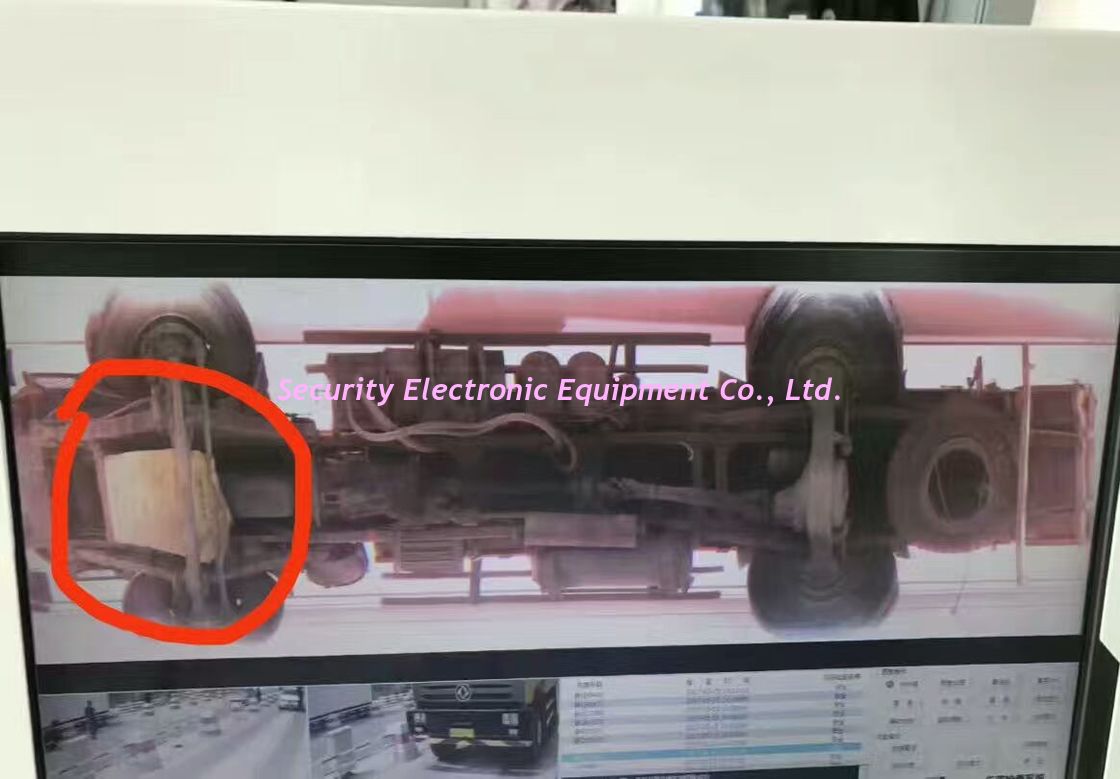

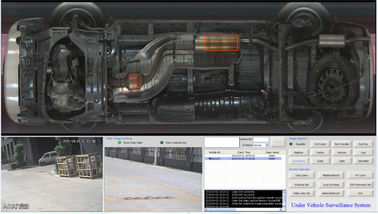

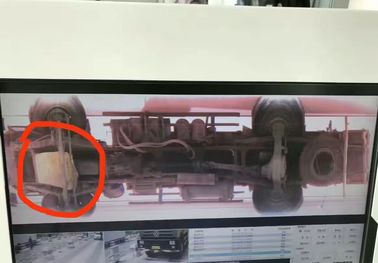

     SECUPLUS SPV-3300 Under Vehicle Inspection System is the fixed solution for the fully identification of threats or modifications to a vehicle's undercarriage.  It can quickly and accurately identify threats , contraband objects and stowaway who are hidden at the bottom. Vehicles drive over the embedded scanning units while SECUPLUS 's systems compile high-resolution images of a vehicle's undercarriage to create the vehicle's fingerprint."




Coloured under vehicle scanning camera:



Vertical resolution of the image: 2048 pixels
Check the width viewing angle: not less than 4 meters
Speed of vehicle: 30~75km/h
Effective FOV: not less than 170°
Auxiliary light: 100W
Bearing weight: more than 50T
Waterproof grade: IP68 meet the condition of working around the clock
Scanning device weight: 18KG
Scanning device volume: 410mm×370mm×93mm
Communication interface: RS232/RS422
Operating Temperature: -10ºC to 55ºC
Storage temperature: -40ºC to +75ºC
Operating voltage: 110-240V AC, 50-60HZ



Color under vehicle scanning unit :

Camera: Sensor line scans CCD
Resolution: 5000*2048 pixels
Power Supply 24VDC, 3A
Pixel : 2096 x3 ; Type:Color
Horizontal Frequency : 9K
Min operate time : 110us
The length of the line array : 29mm
Pixel size : 14um x 14um
Sampling bits wide : 8bit
Dynamic Range : 76db
Sensitivity : 15,21,37V/uJ/cm2(wave
Transmission mode : (Gigabit Ethernet) /100m
Power Dissipation : less 8W,12V
Working Temperature: 0ºC to 60ºC



Our Services:

1. Free training in our factory

2. Accept arrange engineer to your country with additonal cost

3. After-sales service online 18/24 hours

4. Remote control the machine for maintenance diagnosing

5. Free spare parts supply during the warranty

6. Exclusive agent protection and special support for market

7. OEM and ODM service accept



Optional :
*  ALPR-Automatic License Plate Recognition software : via IP Camera captures license plate, ALPR software processing and automatically presents license plate on screen
*  Driver Face Capture Camera : Provides picture of driver and/or view of vehicle. Image is presented on screen along with under vehicle images.
*  Screen Video display/DVR: displays live video feed from overview camera on operator terminal screen.



FAQ :

 Any interest, welcome to contact me for details .

Sunny ZHOU

Skype ID: secuscan03

Whatsapp/viber : +86-13510514294

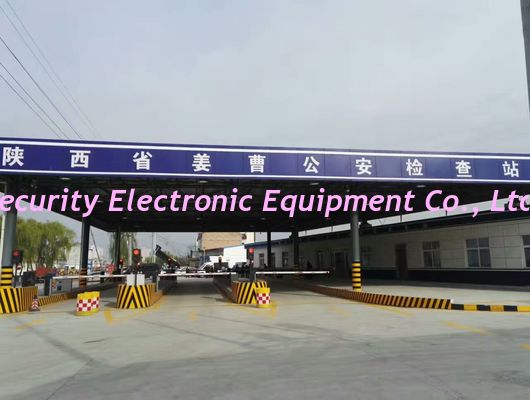

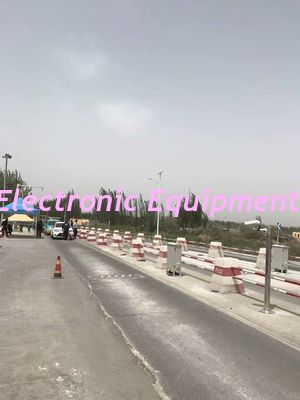

SPV-3300 fixed UVSS/UVIS workshops
