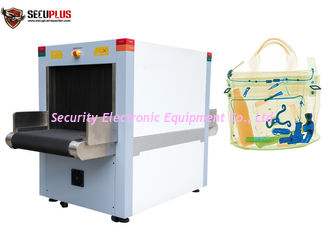

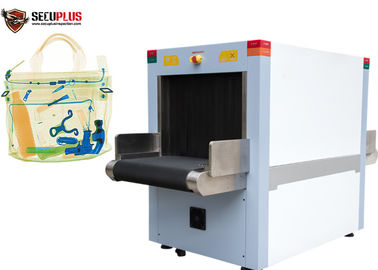

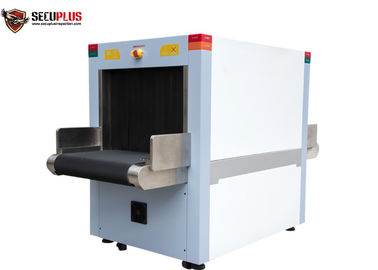

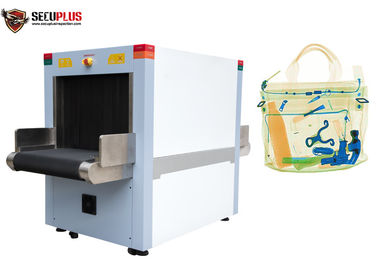

X ray Baggage Scanner SPX6040 Handbag security scanner for airport school

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

X ray Baggage Scanner SPX6040 Handbag security scanner for airport school

X ray Baggage Scanner SPX6040 Handbag security scanner for airport school
X ray Baggage Scanner SPX6040 Handbag security scanner for airport school X ray Baggage Scanner SPX6040 Handbag security scanner for airport school X ray Baggage Scanner SPX6040 Handbag security scanner for airport school

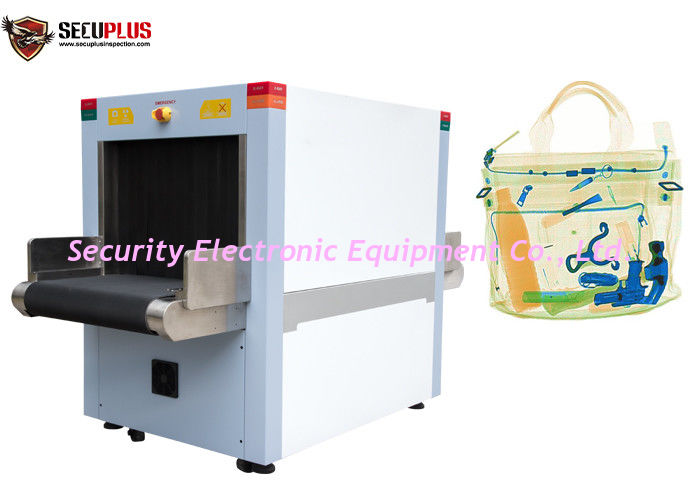

Large Image :  X ray Baggage Scanner SPX6040 Handbag security scanner for airport school

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO FCC ROHS
Model Number: SPX6040
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: Within 7 working days after get your payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Tunnel Size: 600(W)*400(H)mm Conveyor Max Load: 170kg
Penetration: 28-32mm Steel Have In Stock: About 15 Units
Conveyor Speed: 0.22m/s OEM: Accept
Baggage Counter: Yes
High Light:

security screening equipment

,

airport baggage scanner

X ray Baggage Scanner SPX6040 Handbag security scanner for airport school



Top Scanning ability Stable and reliable: each machine had strict high and low temperature test, high humidity test, anti-shock test, MTBF 10000 hours
Automatic sensor roller (Optional)
Upgrade quality solution (Optional)



X-ray Generator



Beam direction Diagonal
Generate angle 80 degree
Anode Voltage 140Kv
Anode power 0.4 to 0.5mA
Cooling / Duty Cycle Oil Cooling /100%



Image System

  •  X-ray Sensor: L-Shaped Photodiode Array(multi-energetic) , 12bit Deep
  •  Monitor: High Resolution Color, LCD Accord, 17 inch
  •  Image Processing: Edge enhancement, image strengthening, image lightening,reducing darkening, image returning, image retrieval.
  •  Image Grey Level: 4096
  •  Image Processing: 24bit for processing real time
  •  Image storage: Storage 100000 pictures in real time
  •  Zoom: 64Times Enlarge, Whole screen continuous observation
  •  Assist of detecting organic and inorganic items such as weapons,explosives and narcotics using different colour show

General Specification



Tunnel Size 600(W)*400(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 170kg
Wire Resolution 32AWG to 40AWG
Spatial resolution horizontal:1.3 or 1.0mm, vertical: 1.3 or 1.0mm
Penetration 28 to 32 mm Steel
Film Safety Guarantee ISO1600 Film
Pass rate 720 bags per hour
X-ray Leakage <1 μSv/h (at a distance of 5cm from external housing)



Installation Data


Operation temperature/Humidity------------0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity----------- -20℃-60℃/20%-95%(non-condensing)
Operation Power------------220VAC(±10%)50±3Hz
Power Consumption---------1.0 KW (max), 0.7KW(working)
Noise---------<58db



Computer Character:


CASE: IPC7132
Power: 250W/ATX
Main board: AIMB 501G2
CPU: G1610 2.6G
Storage: 2GB 1600MHz DDR3 Innodisk
Hard Disk: SEAGATE 500G 3.5”



Other Characters:



Detect PCB board: UK brand Sensortech
Extension Rollers: customize size length
Support card reader operator access
CD DVR/RW unit: Optional
Computer system: XP system
Console optional: 17 inch DELL brand one or two monitor
