Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 500mm×300mm | Conveyor Speed: | 0.22m/s |
|---|---|---|---|
| Conveyor Height: | 663mm | Conveyor Max Load: | 130kg |
| Penetration: | 38mm Steel Guarantee ,40mm Steel Typical | Film Safety: | Guarantee ASA/ISO1600 Film |
| Anode Voltage: | 140-160kv(adjustment) | Detect PCB Board: | UK Brand Sensortech |
| High Light: | security screening equipment,airport baggage scanner |
||

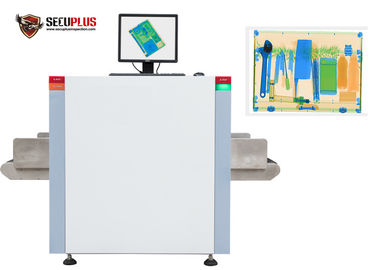

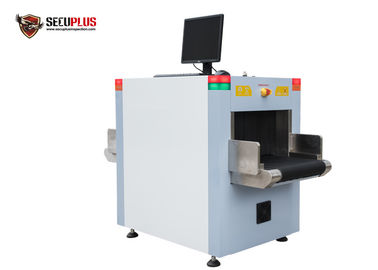

SPX5030B X Ray Baggage Scanner SECUPLUS Parcels Inspection Machine
General Specification
Tunnel Size: 500mm×300mm
Conveyor Speed: 0.22m/s
Conveyor height : 663mm
Conveyor Max Load:130kg
X ray Dose per inspection <2.7μSv
Wire Resolution: 40 AWG typical
Spatial resolution Level: dia1.0mm,Vertical: dia1.0mm
Penetration: 38mm steel guarantee ,40mm steel typical
Penetration Resolution: guarantee 34AWG, 36mm steel typical
Film Safety :Guarantee ASA/ISO1600 Film
X-ray Leakage: <1.0 μSv/h (at a distance of 5cm From external housing)
Image System
| Technical Principle | Dual-energy X-ray Imaging |
| X-ray Sensor | L-Shaped Photodiode Array (multi-energetic), 12bit Deep |
| Monitor | High Resolution Color, LCD Accord, 17inch |
| Image Display | High resolution of 1024 * 1280 pixel |
| Image Grey Level | 65536 |
| Image Enhancement |
1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc. |
| Help detect Explosives & Narcotics | Explosives & narcotics alarm and highlight according to atomic number signature |
| High Density Region Alarm |
Impenetrable region alarm and highlight, for possible concealing of threats and contrabands |
| Threat Image Projection |
Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image Archive |
Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats |
| Miscellaneous Functions |
ime/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc. |
| Network Applications |
Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) |
| Images process |
24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536 |
Operating Environment
Operation temperature/Humidity: 5℃-40℃/10%-95%(non-condensing)
Storage Temperature/Humidity: -20℃to 60℃/ 5%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.0KW (max), 0.7KW(working)
Noise: <58db
Dimension Size
Dimensions (L×W×H) :1660mm x746mm x1165 mm
X Ray Scanner N. Weight: 350Kg
G.Weight: 540Kg
Packing Volume: 3.15CBM
Computer Character
CASE: GT6058
Power: 300W/ATX
Main board: H61 SYM76993VGGA
CPU: G1610 2.6G
Storage: 2GB 1600MHz DDR3 Innodisk
Hard Disk: SEAGATE 500G 3.5”
X-ray Generator
Anode Voltage: 140-160kv(adjustment)
Anode power: 0.2-1.2mA(adjustment)
Generate angle: 80 degree upward
Brand: SPELLMAN USA brand
Generate direct: from bottom to top
Cooling / Duty Cycle: Oil Cooling /100%
Other Characters
Detect PCB board: UK brand Sensortech
Extension Rollers: customize size length
Support card reader operator access
CD DVR/RW unit: Optional
Computer system: XP system
UPS : 15mins, 30mins, 60mins etc, optional
SPX5030B scan image
