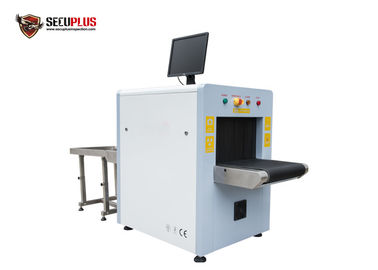

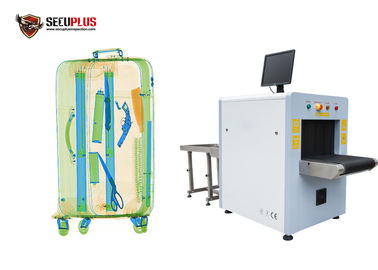

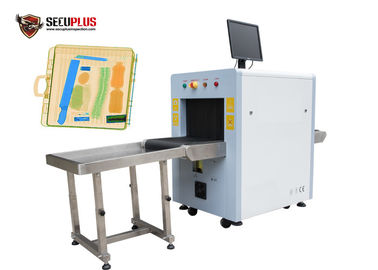

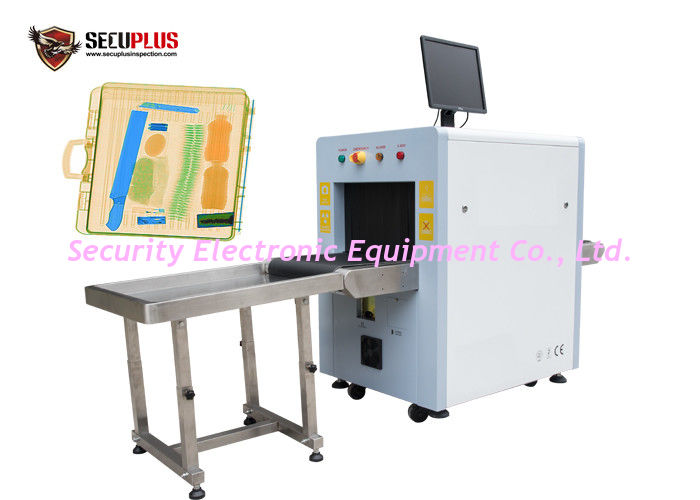

Stock Baggage X-ray Scanner for Factory parcel inspection SPX5030C SECUPLUS

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

Stock Baggage X-ray Scanner for Factory parcel inspection SPX5030C SECUPLUS

Stock Baggage X-ray Scanner for Factory parcel inspection SPX5030C SECUPLUS
Stock Baggage X-ray Scanner for Factory parcel inspection SPX5030C SECUPLUS Stock Baggage X-ray Scanner for Factory parcel inspection SPX5030C SECUPLUS Stock Baggage X-ray Scanner for Factory parcel inspection SPX5030C SECUPLUS

Large Image :  Stock Baggage X-ray Scanner for Factory parcel inspection SPX5030C SECUPLUS

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE, ISO, FCC, ROHS
Model Number: SPX5030C
Brand: OEM accepted
Business Type: Manufacturer
Conveyor Speed;: 0.22m/s
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Within 7 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/year
Detailed Product Description
Tunnel Size: 500mm*300mm Conveyor Max Load: 150KG
Penetration: 28-32mm Steel Film Safety: Guarantee ISO1600 Film
Have In Stock: Yes Certificate: CE ISO
Automic Scanning: Yes Bidirectional Scanning: Yes
High Light:

airport screening machines

,

security screening equipment

Stock Baggage X-ray Scanner for Factory parcel inspection SPX5030C SECUPLUS



General Specification

Tunnel Size:

500(W)*300H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

150kgs

Wire Resolution:

32AWG to 38 AWG

Spatial resolution:

horizontal:1.3 or 1.0mm,
vertical: 1.3 or 1.0mm

Penetration:

28-32 mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<1μGy/h (at a distance of 5cm From external housing)

Pass rate:  720 bags per hour

Beam direction:

Diagonal

Generate angle:

80 degree

Anode Voltage:

140Kv

Anode power:

0.4 to 1.2mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  12bit Deep

Monitor:

High Resolution LCD Accord, 17 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening,

reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 768 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 100000 pictures in real time

 Zoom:

64 Times Enlarge, Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

1 KW (max)

Noise:

<60db



The SECUPLUS X Ray Baggage Scanner offers another way to see inside of handbags,briefcases. It popular accepted as a nonintrusively optimize security measure .

SPX5030C give you innovative and costeffective solutions. It's a great help to exclude the threats and contraband.

SPX5030C is friendly operation system, and easy to maintenance .

SECUPLUS is together with you to antiterrorism


Applications:

01. railway station
02. Transport terminals,
03. Buildings,
04. Factories (to find needle in clothing,  shoes,  bags),
05. Courthouses,
06. Embassies,
07. Military installations,
08. Prisons,
09. Hotels,
10. Schools ,
11. Convention centers,
12. Security checkpoints
13. Special events location



Related products

Stock Baggage X-ray Scanner for Factory parcel inspection SPX5030C SECUPLUS 0

Stock Baggage X-ray Scanner for Factory parcel inspection SPX5030C SECUPLUS 1



Detailed Product Description:


1 SECU PLUS offers a modern technology to secure entry checkpoints for important locations like airports, transport terminals, buildings, and so on.



2 Our systems screen baggage and parcel, to detect contraband, weapons, dangerous and illegal items. Model SPX100100 easily accommodates the inspection of big size baggage and parcels.



3 SECU PLUS is based on user-friendly design with ergonomic operator control panel and adjustable control panel stand. It is easy to installation and maintenance. Over 100 systems per month installed in china and abroad.



4 SECU PLUS branded products received certifications of CE, Test report from China Ministry of Public Security and Copyright for image Operation software SPHOTO.


As a manufacturer SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LTD has gotten the certificate ISO, CE, FCC, ROHS certified company. We have Radiation Safety license from China Environmental Protection Administration.
SECU PLUS X-ray Scanner is a professional security solution provider, a wise choice to governments and partners.
