AT3000 automatic under vehicle inspection system , under vehicle scanning system

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

AT3000 automatic under vehicle inspection system , under vehicle scanning system

AT3000 automatic under vehicle inspection system , under vehicle scanning system
AT3000 automatic under vehicle inspection system , under vehicle scanning system AT3000 automatic under vehicle inspection system , under vehicle scanning system AT3000 automatic under vehicle inspection system , under vehicle scanning system AT3000 automatic under vehicle inspection system , under vehicle scanning system

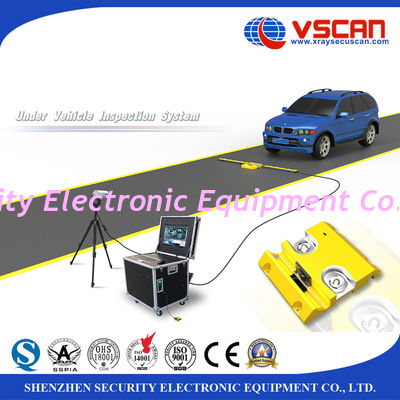

Large Image :  AT3000 automatic under vehicle inspection system , under vehicle scanning system

Product Details:
Place of Origin: China
Brand Name: V-SCAN
Certification: ISO CE
Model Number: AY3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden pallet
Delivery Time: within 10 working days
Payment Terms: T/T, Western Union,, L/C
Supply Ability: 500 sets per month
Detailed Product Description
Vertical Resolution Of The Image: 5000*2048 Pixels Check The Width Viewing Angle: < 4 Meters
Effective Field Of View(FOV): Less Than 170° Auxiliary Light: 100W
Weight Capacity: <20T Water-proof Grade: Ip68
Scanning Device Weight: 24KG Memory: 2G( Optional 4G)
High Light:

under vehicle inspection systems

,

under vehicle monintor machine



AT3000 automatic under vehicle inspection system , under vehicle scanning system



Features:

  1.  Automatic digital line scan camera, with high-resolution and clarity of the image.
  2.  The complete image of under vehicle scanning, without any omissions,
  3.  and the image is clear, complete, no distortion, can be clearly observed that
  4.  the object is not less than 2mm in diameter.
  5.  Preparation of inspection processes to meet a variety of on-site needs.
  6.  Multiple scene image monitoring, recording function.
  7.  Multi-language user interface design.
  8.  Strong scalability to easily achieve a variety of system linkage control.
  9.  (Optional)ALPR(Automatic Licence Plate Recognition)
  10.  Optional Multiple devices networked control functions

System Host:

  • Brand: Grantech (UFO6377H-SP1-953)
  • CPU: Intel® Core(TM) 2 Duo CPU P8600@2.4GHz or higher
  • Memory:2G( optional 4G)
  • Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine
  • Hard Disk:SATA2 Hard Disk 500G
  • Dual LAN (At least one Intel Gigabit)
  • USB2.0 (Up to 4 pieces)
  • Monitor: 22inch LCD, resolution up to 1920*1080

Technical parameters:

Vertical resolution of the image 5000*2048 pixels
Check the width viewing angle < 4 meters
Speed of vehicle

< 30km/h with ALPR(Automatic Licence Plate Recognition)

< 70km/h without ALPR(Automatic Licence Plate Recognition)

Effective Field of View(FOV) less than 170°
Auxiliary light 100W
Weight capacity <20T
  1. Water-proof grade: Ip68
  2. Scanning device weight: 24KG
  3. Scanning device volume: 450mm×400mm×88mm
  4. Communication interface: RS232/RS422
  5. Operating Temperature: -10℃ to 55℃
  6. Storage temperature: -40℃ to +75℃
  7. Operating voltage: 110-240V AC, 50-60HZ



Work shop:

AT3000 automatic under vehicle inspection system , under vehicle scanning system 0AT3000 automatic under vehicle inspection system , under vehicle scanning system 1



Scan Image:

AT3000 automatic under vehicle inspection system , under vehicle scanning system 2

AT3000 automatic under vehicle inspection system , under vehicle scanning system 3



Shipping and Packing

AT3000 automatic under vehicle inspection system , under vehicle scanning system 4AT3000 automatic under vehicle inspection system , under vehicle scanning system 5



Company Profile

SEE(Security Electronic Equipment Co., Limited), is a high-tech company integrating R&D, manufacturing, engineering,training and services. We run SECU SCAN as the top brand. As a reliable supplier, we continue produce good quality products, give professional technical support.
SEE gradually establishes a very comprehensive product range covering X-ray machines with different tunnel size, Walk through Metal Detector, Hand-held Metal Detector, Dangerous Liquid Scanner, Explosive/Narcotics Trace Detector, Under Vehicle System and etc.
SEE security systems have been used in different countries and regions in airports, seaports,customs, railway stations, long-distance bus stations, jail houses, courts yard, and many other security-related applications.
With ISO9001 management system, SEE always keeps running with high efficiency by balancing development on her product R&D, manufacturing, quality control and service according to ISO strict international standard requirements.
With global marketing strategy, SEE provides innovative and dependable security solutions to our global customers and makes every effort to continually exceed our customers' expectations.
Life is precious SEE puts its efforts on public security solution.

Our Service
All products purchased in our company are guaranteed to keep in good repair for one year.
If quality problems happen in guarantee period, our company will maintain for free.
Additionally, our company provides technical support and fittings for life.
After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
If you are caught in some problems when using our products, welcome to contact us at any time.
