SPV-3300 Under Vehicle Surveillance System With CCD line camera for security check

SPV-3300 Under Vehicle Surveillance System With CCD line camera for security check
SPV-3300 Under Vehicle Surveillance System With CCD line camera for security check
video play

Large Image :  SPV-3300 Under Vehicle Surveillance System With CCD line camera for security check

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: ISO CE, FCC, ROHS
Model Number: SPV-3300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden pallet
Delivery Time: within 10 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 sets/month
Detailed Product Description
Input: 2 Channels Induction Coil Output: 1 Channel Switch Type 12VDC
Camera: Sensor: Line Scans CCD Resolution: 5000*2048 Pixels
Have In Stock: Yes Illumination: LED
Size: 1200mm X 350mm
High Light:

under vehicle monintor machine

,

car surveillance system


SPV-3300 UVSS Under Vehicle Surveillance System With CCD line camera for security check

SECUPLUS Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom. UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.

Highlight:
Special air-drying circulation system
With intelligent alarm
Weather proof scanning unit(IP 68)
Anti-fog function
To connect anti-collision system, barrier,etc,
To compatibly packing management solution


Features:

  1. Multi entrance management model, management, and statistics of entering and exiting vehicles

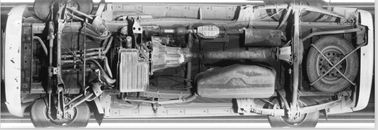

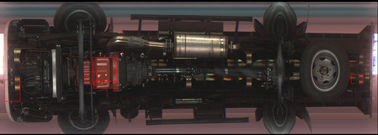

  2. Auto digital line scan, high-resolution undercarriage imaging.
  3. High automation, easy to be used
  4. Applicable to variety of vehicles, wide vision.
  5. Test will be completed during the vehicle maneuvers
  6. without stopping, adapted to different speed.
  7. Undercarriage image can be stored, retrieved, searched or compared with other images.
  8. Avariety of image processing methods: enlarge, stretching and cutting.
  9. (Optional)ALPR-Automatic License Plate Recognition and RFID technology. associative storage of various
  10. vehicle information and undercarriage images.

Embedded Screening Part:

Camera Sensor: line scans CCD
Resolution 5000*2048 pixels
Power Supply 24VDC, 3A
  • Illumination: LED
  • Power Supply: 24VDC,150W
  • Size: 1200mm x 350mm
  • Operating Temperature Range: -20 degree to +70 degree

Controller:
● Input: 2 channels induction coil
● Output: 1 Channel switch type 12VDC
● Communication port: RS485, Ethernet(Optional)
● Operating Temperature: -10℃ to 55℃


System Host:

Brand Grantech (SYM76941VGGA)
CPU Intel(R)Celeron(R)CPU
Memory 2G( optional 4G)



  • E3400@2.6GHz 2.59 GHz
  • Graphics:512M
  • Hard Disk: SATA2 Hard Disk 500G
  • Dual LAN (At least one Intel Gigabit)
  • USB2.0 (Up to 2 pieces)
  • Monitor: 22 inch LCD, resolution up to 1920*1080
  • Scene Video Record: 4 channel, Compression algorithm of scene video: H264

Work shop:
SPV-3300 Under Vehicle Surveillance System With CCD line camera for security check 0SPV-3300 Under Vehicle Surveillance System With CCD line camera for security check 1
SPV-3300 Under Vehicle Surveillance System With CCD line camera for security check 2SPV-3300 Under Vehicle Surveillance System With CCD line camera for security check 3

Company Profile
SEE(Shenzhen Security Electronic Equipment Co., Limited), is a high-tech company integrating R&D, manufacturing, engineering,training and services. We run SECU PLUS as the top brand. As a reliable supplier, we continue produce good qualityproducts, give professional technical support.


SEE gradually establishes a very comprehensive product range covering X-ray machines with different tunnel size, Walk through Metal Detector, Hand-held Metal Detector, Dangerous Liquid Scanner, Explosive/Narcotics Trace Detector, Under Vehicle System and etc.
SEE security systems have been used in different countries and regions in airports, seaports,customs, railway stations, long-distance bus stations, jail houses, courts yard, and many other security-related applications.
With ISO9001 management system, SEE always keeps running with high efficiency by balancing development on her product R&D, manufacturing, quality control and service according to ISO strict international standard requirements.
With global marketing strategy, SEE provides innovative and dependable security solutions to our global customers and makes every effort to continually exceed our customers' expectations.
Life is precious SEE puts its efforts on public security solution.


Our service

  • All products purchased in our company are guaranteed to keep in good repair for one year.
  • If quality problems happen in guarantee period, our company will maintain for free.
  • Additionally, our company provides technical support and fittings for life.
  • After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  • If you are caught in some problems when using our products, welcome to contact us at any time.
