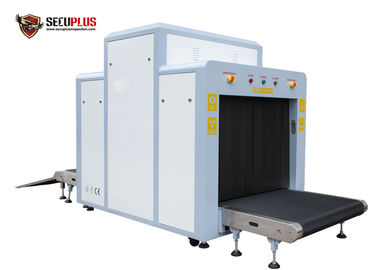

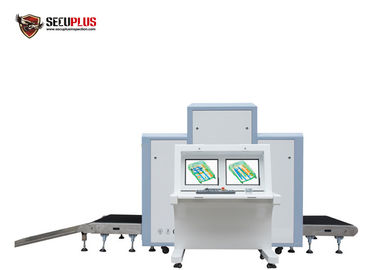

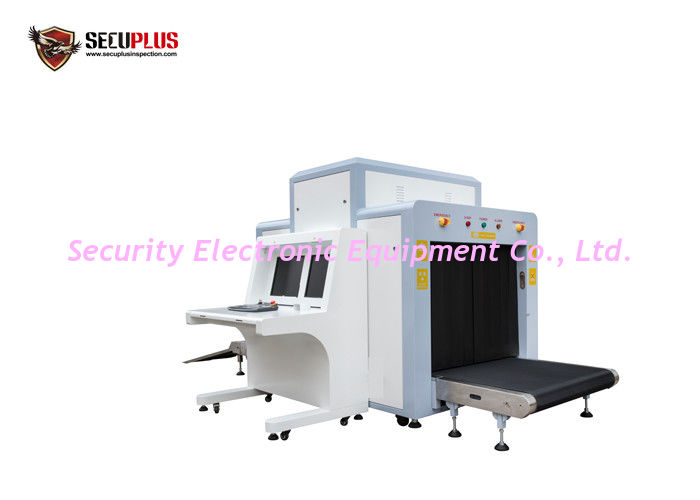

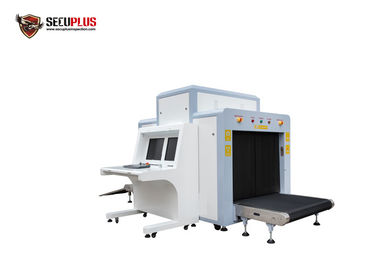

Luggage AT10080 security x ray machine with Baggage counter for Station use

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

Luggage AT10080 security x ray machine with Baggage counter for Station use

Luggage AT10080 security x ray machine with Baggage counter for Station use
Luggage AT10080 security x ray machine with Baggage counter for Station use Luggage AT10080 security x ray machine with Baggage counter for Station use Luggage AT10080 security x ray machine with Baggage counter for Station use

Large Image :  Luggage AT10080 security x ray machine with Baggage counter for Station use

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE, ISO
Model Number: SPX10080
Warranty: one year free spare parts
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Within 7 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets/month
Detailed Product Description
Tunnel Size: 1000*800mm Conveyor Loading: 200KG
Have In Stock: More Than 20 Units OEM: Accept
Certificate: CE ISO FCC ROHS Automic Scanning: Yes
Bidirectional Scanning: Yes Penetration: 28-32 Mm
High Light:

airport screening machines

,

security screening equipment

Luggage SPX10080 security x ray machine with Baggage counter for Station use

General Specification :


X ray Dose per inspection<1.5μSv
Wire Resolution38AWG Guarantee 40 AWG typical
Penetration28-32 mm
Tunnel Size1000mm×800mm
Conveyor Speed0.22m/s
Conveyor height 338.5mm
Conveyor Max Load200kg
Penetration Resolution30AWG guarantee, 32AWG typical
Film SafetyGuarantee ASA/ISO1600 Film
X-ray Leakage<0.5 μSv/h (at a distance of 5cm From external housing)


Image System :


Image Displayhigh resolution of 1024 * 1280 pixel
Image Grey Level65536
Threat Image ProjectionInserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability


Technical Principle---------- Dual-energy X-ray Imaging;
X-ray Sensor---------- L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor---------- High Resolution Color, LCD Accord, 17inch
Image Enhancement---------- 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall---------- All preceding images recallable, retrieval.
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number
signature
High Density Region Alarm---------- Impenetrable region alarm and highlight, for possible concealing of
threats and contrabands
Network Applications---------- Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and
network TIP, etc ( Optional) .
Images process---------- 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536


X-ray Generator:


Anode Voltage140kv
Anode power0.2-1.2mA
Cooling / Duty CycleOil Cooling /100%


Other Characters:

Detect PCB board---------- UK brand Sensortech
Extension Rollers---------- customize size length
Support card reader operator access
CD DVR/RW unit---------- Optional
Computer system---------- XP system
Monitor---------- 17 inch DELL two monitors

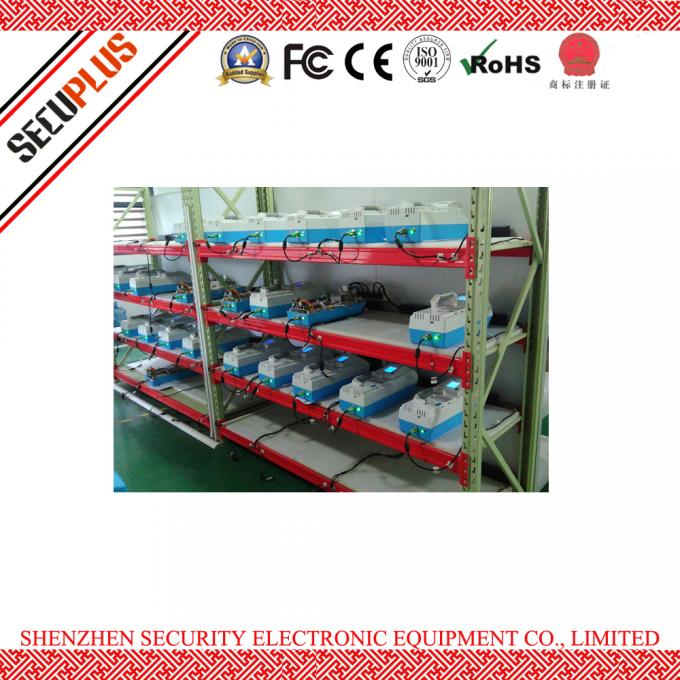

Our Work Shop

Luggage AT10080 security x ray machine with Baggage counter for Station use 0
Luggage AT10080 security x ray machine with Baggage counter for Station use 1
Luggage AT10080 security x ray machine with Baggage counter for Station use 2

Our Service

Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support


Company profile​


A good supplier will save you money and be free from trouble.
Quality means a lot for a security products wholesaler like you.
To be safe from customer complaints, you may need a very reliable supplier to count on.
SECUPLUS has already 13 years professional experience in
X ray Baggage Scanner

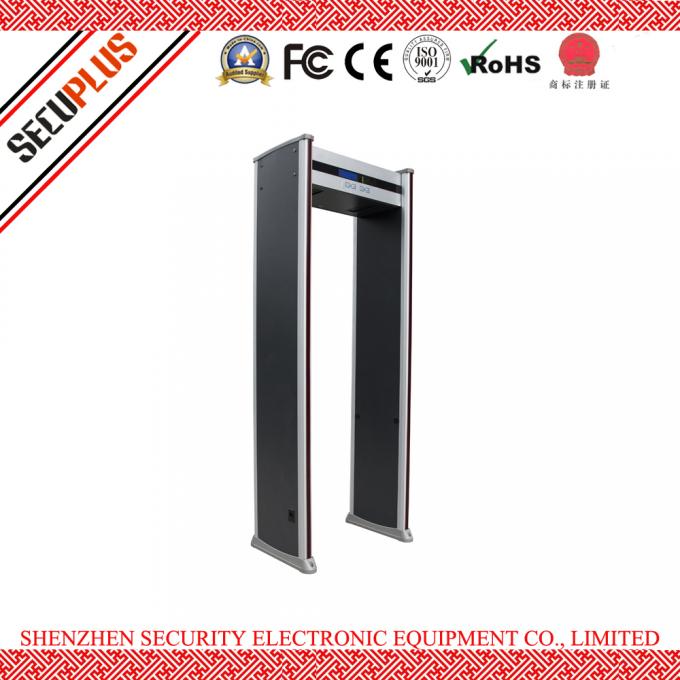

Walk Through Metal Detector
Under Vehicle Surveillance System

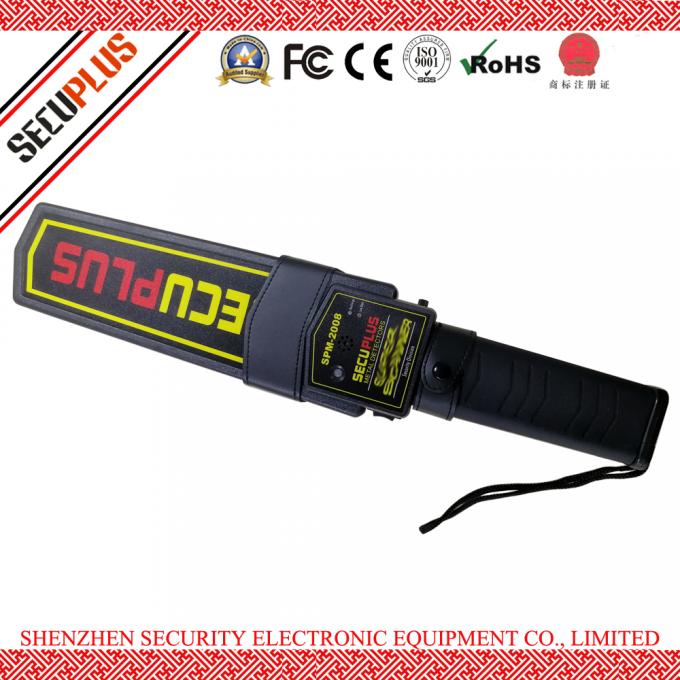

Hand Held Metal Detector
Explosives Trace Detection
Dangerous Liquid Scanner
We would very much welcom your enquiry, surely you will get our best price.
