Effective Security Metal Detector Gate Asset Protection In Industry , Hospitals

small.img.alt small.img.alt small.img.alt small.img.alt

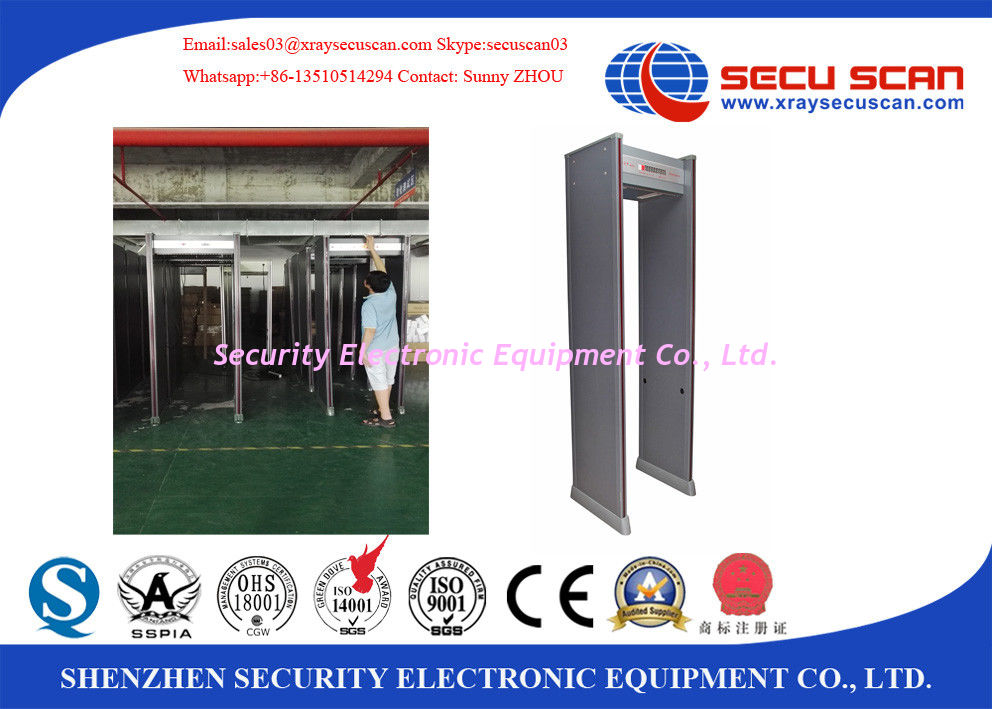

Large Image :  Effective Security Metal Detector Gate Asset Protection In Industry , Hospitals

Product Details:
Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO9001
Model Number: AT-IIID
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden pallet
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 300 units per month
Detailed Product Description
Zones: 6,12,18 Zones Frame Material: Fire And Shock Proof
Alarm: Audio And Visual Alarm Tamp Proof: Password Protection
Sensitivity: Detect A Paper Clip Technical Training: Providing
Installation Tools: Providing Company Type: Manufacturer
Display: LCD Screen Warranty: 18 Months
High Light:

metal detectors at airports


door frame metal detector


Effective Security Metal Detector Gate Asset Protection In Industry , Hospitals



  • High sensitivity, economic model
  • Suit for Factories and Entertainment environments
  • 6,12,18 zones adjustment

Technical specification :

  • Electric current: AC100V~240V 50/60Hz
  • Power: 10W
  • Work environment: -20℃~+45℃
  • Gross Weight: 70kg
  • Outer frame: 2220mm (h) x 820mm (w) X 500mm (d)
  • Inner frame: 2000mm (h) X 700mm (w) X 500mm (d)


  • 6/12/18 Pinpoint zones to precisely identify multiple target locations from head to toe
  • Advanced broadband detection technology: can detect ferrous and non-ferrous articles.
  • Sensitivity adjustable from Level 0 to 299 (300 levels)
  • High: Can detect a pin
  • Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.
  • Shock proof to avoid false alarm
  • Sound and light alarm
  • Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
  • Four LED light bars on both door panels: gives alarm corresponding to the height or human body.
  • Tamper-Proof: operate program is protected by password.
  • Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources
  • Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
  • Harmless to pregnant woman and heart pacemaker.
  • Modular structure to easy after service
  • LCD display
  •  Remote control unit ( Optional )
  • Adjustable frequency & 8 different volume tunes


  • In accordance with: EN60950, WN50081-1, EN50082-1
  • CE Certificate; ISO 9001:2008 Certificate, National standard
  • National standard


1. CE Certificate

2. ISO9001 Certificate

3. ISO14001 Certificate

4. OHSMS18001 Certificate

5.  USFDA Certificate

6. Radiation Safety Certificate From Chinese Government

7. Test Report From Inspection Center Of State Security Ministry


Our Services :


1. Operation training program for end users

2. Free of factory training for engineer from agents to end user

3. Provide on-site trainning when customer requires

4. If quality problems happen in guarantee period, our company will maintain for free.

5. One year free spare parts and life time technical support

6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems     immediately after receiving telephone and hear feedback idea of users and deal with them in time.

7. If you are caught in some problems when using our products, welcome to contact us at any time.
