Product Details:
Payment & Shipping Terms:
|
| Body Material: | Stainless Steel | Tunnel Size: | 65*50mm |
|---|---|---|---|
| Conveyor Load: | 170kg | Software: | Multi-language |
| TIP: | Threat Image Protection | Wire Resolution: | 0.8mm |
| Warranty: | 12 Months | Display: | 17 Inch LCD |
| Technical Support: | Life Time | Alarm: | Audio And Visual |
| Highlight: | baggage x ray scanner,xray scanner airport |
||

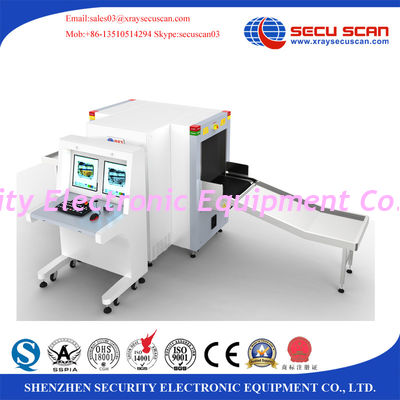

Duel View X Ray Security Scanning Equipment To Detect Needle Inside Sport Shoes
General Specification:
| Tunnel Size: | 650mm×500mm |
| Conveyor Speed: | 0.2m/s |
| Conveyor height : | 670mm |
| Conveyor Max Load: | 150kg |
| X ray Dose per inspection | <0.5uGy |
| Wire Resolution: | 0.8mm |
| Spatial resolution Level: | dia1.0mm,Vertical: dia1.0mm |
| Penetration: | 38 mm steel |
| Penetration Resolution : | 32AWG ,the wire visible below 22mm thick aluminum |
| Film Safety : | Guarantee ASA/ISO1600 Film |
| X-ray Leakage: | <0.5 μGVy/h (at a distance of 5cm From external housing) |
Image System:
| Technical Principle: | Dual-energy X-ray Imaging; Double L Shaped Array |
| Image Enhancement: | 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc. |
| Image Display: | High resolution of 1280×1024 |
| Image Recall: | All preceding images recallable |
| Explosives & Narcotics Detection: | Explosives & narcotics alarm and highlight according to atomic number signature |
| High Density Region Alarm: | Impenetrable region alarm and highlight, for possible concealing of threats and contrabands |
| Threat Image Projection: | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image Archive: | Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP,PNG and other general formats |
| Miscellaneous Functions : | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training,self-diagnostic etc. |
| Network Applications: | Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc. |
Images process: |
24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536 |
X-ray Generator
| Beam direction: | vertical and Horizontal |
| Anode Voltage: | 160KV operating |
| Cooling / Duty Cycle: | Oil Cooling /100% |
Computer Character
| CASE: | chassis ATX/Matx chassis |
| Power: | 80+bronze ps/2 sps 300w ATX(DELTA)ROHS |
| Main board: | H61,LAG 1155 Micro ATX,2VGA/LVDS/(DVI optional)/10*com/1*LPT/2GeLAN/PCI/ PCIe/AMP/10*USB |
| CPU: | Celeron 2.5G 3m 1155p G540(G) |
| Storage: | 2G DDR3-1333 240PIN 256X8 HYX(g)TS 5KNN 28100-3Y |
| Hard Disk : | SEAGATE 500G 3.5” IDE 5KRPM(G) |
Other Characters optional
1 Computer system: XP system or windows 7
2 UPS camera system and photographic system Optional
3 Support card reader operator access (optional)
4 CD DVR/RW unit: Optional
5 Extension Rollers: Optional (50cm length roller)
6 Monitor optional: 17 inch DELL brand or 19inch monitor
Operating Environment
| Operation temperature/Humidity: | 0℃-45℃/20%-95%(non-condensing) |
| Storage Temperature/Humidity: | -40℃~+60℃ / 5%~95% (non-condensing) |
| Operation Power: | 220VAC(±10%)50±3Hz (100VAC,110VAC,120VAC,200VAC) |
| Power Consumption: | 1.0KW(working) |
| Noise: | <58db |
Why choose us?
1.CE Certificate
2.ISO9001 Certificate
3.ISO14001 Certificate
4.OHSMS18001 Certificate
5. USFDA Certificate
6.Radiation Safety Certificate From Chinese Government
7.Test Report From Inspection Center Of State Security Ministry
Patents:
1. Security equipment image data transmission system(patent no.: 201020700244.8)
2. One key switch off device for x ray device(patent no.: 201020700256.0)
3. Sensors device for security inspection(patent no.: 201020700245.2)
4. Dangerous liquid detecting circuit(patent no.: 201120107219.5)
1.Operation training program for end users
2.Free of factory training for engineer from agents to end user
3.Provide on-site trainning when customer requires
4.If quality problems happen in guarantee period, our company will maintain for free.
5.One year free spare parts and life time technical support
6.After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
7.If you are caught in some problems when using our products, welcome to contact us at any time.
Shoes inside needle area:
