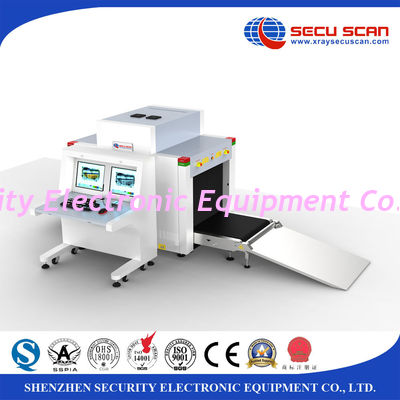

CE Certified 160kv Luggage X Ray Machines For Big Size Baggage Inspection

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

CE Certified 160kv Luggage X Ray Machines For Big Size Baggage Inspection

CE Certified 160kv Luggage X Ray Machines For Big Size Baggage Inspection
CE Certified 160kv Luggage X Ray Machines For Big Size Baggage Inspection CE Certified 160kv Luggage X Ray Machines For Big Size Baggage Inspection CE Certified 160kv Luggage X Ray Machines For Big Size Baggage Inspection CE Certified 160kv Luggage X Ray Machines For Big Size Baggage Inspection CE Certified 160kv Luggage X Ray Machines For Big Size Baggage Inspection

Large Image :  CE Certified 160kv Luggage X Ray Machines For Big Size Baggage Inspection

Product Details:
Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO
Model Number: AT8065B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets/month
Detailed Product Description
Tunnel Size: 800(W)*650(H)mm Penetration: 38mm Steel
Conveyor Speed: 0.22m/s Wire Resolution: 40AWG
Genrate Angle: 80 Degree Generate Voltage: 160kv
Training: Free Of Cost At The Factory Software: Support Multi Language
Installation: Three Wires Only Automatic Roller: Yes
High Light:

baggage x ray scanner

,

xray scanner airport

CE Certified 160kv Luggage X Ray Machines For Big Size Baggage Inspection



Model: AT-8065B



Applications:

  • Airports,
  • Transport terminals,
  • Buildings,
  • Factories (to find needle in clothing,  shoes,  bags),
  • Courthouses,
  • Embassies,
  • Military installations,
  • Prisons,
  • Hotels,
  • Schools ,
  • Convention centers,
  • Security checkpoints,
  • Special events location



Competitive Advantage:

  • Integrated,  cost Effective,  One-Key Switch off
  • Fit for Middle size Baggage and Parcel Security Inspection.
  • Increased detection capability
  • Friendly interface for ease-of-use
  • Reliable performance and uncompromising value



Specifications:



Tunnel Size:

800(W)*650(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

200kgs

Dose per Inspection:

<2.9 μGy/h

Resolution:

<0.101mm Metal Wire

Penetration:

40mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.5 μGy/h (at a distance of 5cm From external housing)

Generate direct:

Downward

Generate angle:

80 degree

Anode Voltage:

160Kv imported generator

Anode power:

0.4 to 1.2mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  12bit Deep

Monitor:

High Resolution Color,  LCD Accord,  17 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening,

reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 60000 pictures in real time

Zones & Zoom:

1-9 Image regions,  2, 4, 8, 16 Times Enlarge,

Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

1.1 KW (max),  0.3KW(working)

Noise:

<58db



Image System:



  • Technical Principle: Dual-energy X-ray Imaging;
  • X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep
  • Monitor: High Resolution Color, LCD Accord, 17inch
  • Image Display: High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
  • Image Enhancement: 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
  • Image Recall: All preceding images recallable, retrieval.
  • Help detect Explosives & Narcotics: Explosives & narcotics alarm and highlight according to atomic number signature
  • High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
  • Threat Image Projection: Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
  • Image Archive: Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
  • Miscellaneous Functions : Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log,etc.
  • Network Applications: Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
  • Images process: 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536



Advantages:

  • We have 20000 square meter factory, 4 floor, 260 employess and 5 R&D team
  • We have passed ISO9001, 16001, OHSMS18001, Health Inspection
  • We have full security product line which can meet your different needs
  • We never stop researching and will have one or two new product each year
  • We listen to our customer and solve their problems



Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.



CE Certified 160kv Luggage X Ray Machines For Big Size Baggage Inspection 0

CE Certified 160kv Luggage X Ray Machines For Big Size Baggage Inspection 1

CE Certified 160kv Luggage X Ray Machines For Big Size Baggage Inspection 2
