Product Details:
Place of Origin: China
Brand Name: VSCAN
Certification: CE, ISO9001, ISO18001
Model Number: AT3300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100 sets per month
Detailed Product Description
Image Resolution: 5000*2048 Pixels Water-proof Grade: IP68
Display: 22'' Monitor Storage Temperature: -25℃ To +75℃
Technical Training: Free Warranty: 12 Months
Operating Voltage: 110-240V AC, 50-60HZ Camera: Color CCD Line Scan
Scanning Image: Color
High Light:

under vehicle inspection systems

,

under vehicle monintor machine

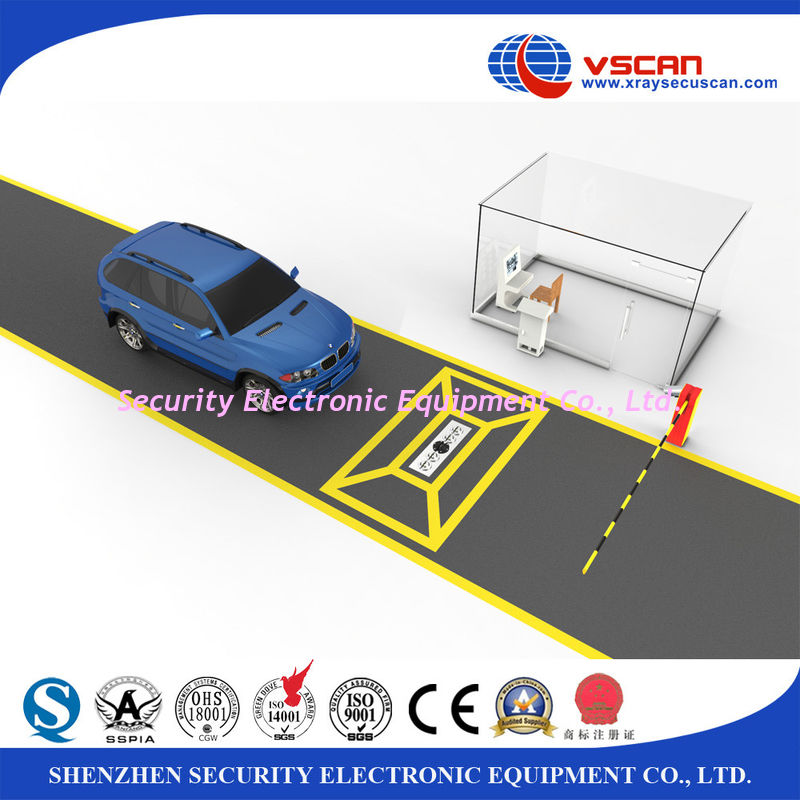

Under Vehicle Scanning System (UVSS) for airport, bus station, train station



Product Description



    VSCAN Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles.  It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom. AT3300 UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.



Range of application:

  1.  Airport, prison, custom and other government department
  2.  Large public parking spot entrance and exit
  3.  Events, exhibition

 Features:

  1. Auto digital line scan camera, with high-resolution and clarity of the image.

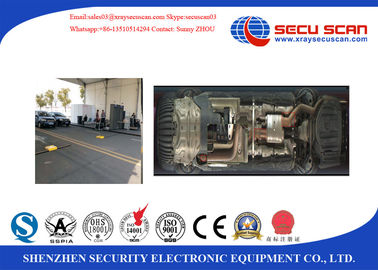

  2. The complete image of under vehicle scanning, without any omissions, and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter.
  3. IP68 high protection grade, anti-pressure shock, adapt to any climatic environments.
  4. Preparation of inspection processes to meet a variety of on-site needs.
  5. Multiple scene image monitoring, recording function.
  6. Multi-language user interface design.
  7. Support image recognition and RFID technology for vehicle identification.



Coloured  under vehicle scanning camera:



Vertical resolution of the image:

2048 pixels

Check the width viewing angle: not less than 4 meters
Speed of vehicle: 30~75km/h
Effective FOV: not less than 170°
Auxiliary light: 100W
Bearing weight:  more than 50T
Waterproof grade: IP68 meet the condition of working around the clock
Scanning device weight: 18KG
Scanning device volume: 410mm×370mm×93mm
Communication interface: RS232/RS422
Operating Temperature:  -10 to 55
Storage temperature: -40 to +75
Operating voltage:  110-240V AC, 50-60HZ



 Color under vehicle scanning camera:



Camera: Sensor line scans CCD
Resolution: 5000*2048 pixels
Power Supply 24VDC, 3A
 Pixel : 2096 x3 ;  Type:Color
Horizontal Frequency : 9K
Min operate time : 110us
The length of the line array : 29mm
Pixel size : 14um x 14um
Sampling bits wide : 8bit
Dynamic Range : 76db
Sensitivity :  15,21,37V/uJ/cm2(wave
Transmission mode :  (Gigabit Ethernet) /100m
Power Dissipation : less 8W,12V
Working Temperature: 0 to 60



Our Services:


1.  Free training in our factory

2. Accept arrange engineer to your country with additonal cost

3. After-sales service online 18/24 hours

4. Remote control the machine for maintenance diagnosing

5. Free spare parts supply during the warranty

6. Exclusive agent protection and special support for market

7. OEM  and ODM service accept



Application:  Airport, Seaport, Border, Checkpoint, Government, Bank, Hotel,building, gas station etc
