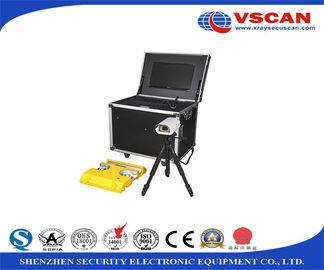

Mobile Image monitoring Under Vehicle Surveillance System , 22 Inch Lcd Monitor

Large Image : Mobile Image monitoring Under Vehicle Surveillance System , 22 Inch Lcd Monitor

Product Details:

Place of Origin:	China
Brand Name:	VSCAN
Certification:	CE,ISO
Model Number:	AT-3000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden case
Supply Ability:	300 unts/month

Contact Now

Detailed Product Description

Memory:	2G(optional 4G)	Graphics:	512M
Hard Disk:	SATA2 Hard Disk 500G	Dual LAN:	At Least One Intel Gigabit
Monitor:	22 Inch LCD	Scanning Device Weight:	24kg
CPU:	Intel Centurion Duo Or Higher	Speed Of Vehicle:	<30km/h With ALPR, <70km/h Without ALPR
Auxiliary Light:	100w	Warranty:	One Year
Highlight:	under vehicle inspection systems , under vehicle monintor machine

Mobile Image monitoring Under Vehicle Surveillance System , 22 Inch Lcd Monitor

Advantages of UVSS:

Easy to change scanning spot
Whole image display ion monitor
Operator can zoom and save image
Suitable for all vehicles, wide vision
To connect anti-collision system, barrier, etc

Main Technical Indexes:

Vertical resolution of the image:	5000*2048 pixels
Check the width viewing angle:	< 4 meters
Speed of vehicle:	< 30km/h with ALPR(Automatic Licence Plate Recognition)
	< 70km/h without ALPR(Automatic Licence Plate Recognition)
Effective Field of View(FOV):	less than 170°
Auxiliary light:	100W
Weight capacity:	<20T
Water-proof grade:	Ip68
Scanning device weight:	24KG
Scanning device volume:	450mm×400mm×88mm
Communication interface:	RS232/RS422
Operating Temperature:	-10℃ to +75℃
Storage temperature:	-40℃ to +75℃
Operating voltage:	110-240V AC, 50-60HZ

Features of UVIS:

Automatic digital line scan camera, with high-resolution and clarity of the image.
The complete image of under vehicle scanning, without any omissions,and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter.
Preparation of inspection processes to meet a variety of on-site needs.
Multiple scene image monitoring, recording function.
Multi-language user interface design.
Strong scalability to easily achieve a variety of system linkage control.
(Optional)ALPR(Automatic Licence Plate Recognition)
(E.g.: anti-collision system, barrier, etc.).
(Optional) Multiple devices networked control functions.

System Host

Brand	Grantech (UFO6377H-SP1-953)
CPU	Intel® Core(TM) 2 Duo CPU, P8600@2.4GHz or higher
Memory	2G( optional 4G)
Graphics	Inter(R) Gen 5.0 Integrated Graphics Engine
Hard Disk	SATA2 Hard Disk 500G
Dual LAN	(At least one Intel Gigabit)
USB2.0	(Up to 4 pieces)
Monitor	22inch LCD, resolution up to 1920*1080

Our service:

Professional reply for your question in time before-sales during Monday to Friday in 24 hours
All of our product already get passing the aging test to ensure reliability quality
Quality inspection department will check the machine again before packing.
One year spare parts in free for replacing the broken after delivery
Remote control the machine for diagnosing
Technic support by video and telephone
Accept your engineer come to our factory for training in free
Send engineer to your country with additional cost.
