Ip68 Weatherproof Under Vehicle Surveillance System One Year Warranty

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

Ip68 Weatherproof Under Vehicle Surveillance System One Year Warranty

Ip68 Weatherproof Under Vehicle Surveillance System One Year Warranty
Ip68 Weatherproof Under Vehicle Surveillance System One Year Warranty Ip68 Weatherproof Under Vehicle Surveillance System One Year Warranty Ip68 Weatherproof Under Vehicle Surveillance System One Year Warranty Ip68 Weatherproof Under Vehicle Surveillance System One Year Warranty Ip68 Weatherproof Under Vehicle Surveillance System One Year Warranty

Large Image :  Ip68 Weatherproof Under Vehicle Surveillance System One Year Warranty

Product Details:
Place of Origin: China
Brand Name: V-SCAN
Certification: CE,ISO
Model Number: AT3300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden case
Payment Terms: Western Union, L/C, T/T
Supply Ability: 300 units/month
Detailed Product Description
Weather-proof: IP68 Camera: Line Scan CCD
Resolution: 5000*2048 Pixels Size: 1200*350mm(for Embedding Part)
Memory: 2G(optional 4G) CPU: Intel Core(TM) 2 Duo CPU
Monitor: 22 Inch LCD, Resolution Up To 1920*1080 Warranty: One Year
High Light:

under vehicle monintor machine

,

car surveillance system

Ip68 Weatherproof Under Vehicle Surveillance System One Year Warranty



Advantages:

  1. Special air-drying circulation system for anti-fog function
  2. With Intelligent alarm
  3. Weather-proof scanning unit, IP68
  4. Connect anti-collision system, barrier, etc
  5. No need to park vehicle, can bear speed below 30km/h
  6. Whole image display ion monitor
  7. Operator can zoom and save image



Features of UVSS:

  • Auto digital line scan, high-resolution undercarriage imaging.
  • High automation, easy to be used.
  • Applicable to variety of vehicles, wide vision.
  • Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
  • Undercarriage image can be stored, retrieved, searched or compared with other images.
  • A variety of image processing methods: enlarge, stretching and cutting.
  • Multi entrance management model, management, and statistics of entering and exiting vehicles.
  • Flexible detection process can be made on site to satisfy the needs of various work conditions.
  • Option of automatic number plate recognition system available, associative storage of various vehicle information and undercarriage images.
  • Image monitoring, video recording for different scenario.
  • Suitable for all vehicles, wide vision







Main Technical Data:

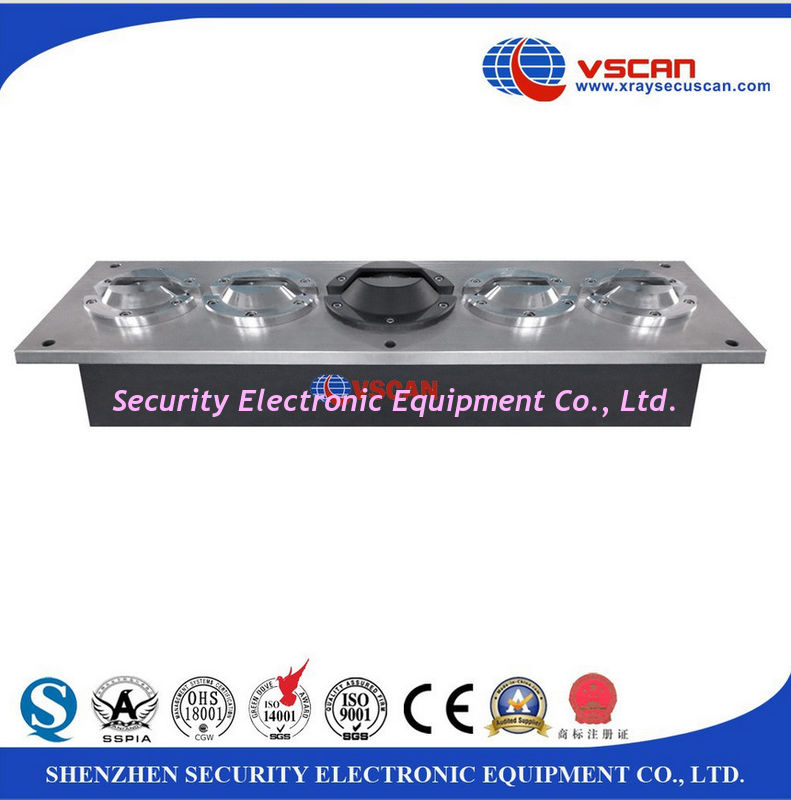

Embedded Under Vehicle Imaging Equipment:



Camera Sensor line scans CCD
Resolution 5000*2048 pixels
Power Supply 24VDC, 3A
Illumination LED
Power Supply 24VDC, 150W
Size

1200mm x 350mm

Operating Temperature Range -40 degree to +70 degree





Controller:



Input 2 channel induction coil (can optional extend to 3 channel)
Output 1 channel switch type 12VDC
Communicatoin port RS422, RS232, Ethernet (Optional)
Operating Temperature Range -10 degree to +55 degree







System host:



CPU Intel Centurion Duo or higher
Memory 2G
Hard Disk 500G
Dual LAN At least one Intel Gigabit
Display                       22” LCD, can choose a vice display to show the image independently (optional)
Scene Video Record 4 channel, Compression algorithm of scene video: H264





Our service:



  • Professional reply for your question in time before-sales during Monday to Friday in 24 hours
  • All of our product already get passing the aging test to ensure reliability quality
  • Quality inspection department will check the machine again before packing.
  • One year spare parts in free for replacing the broken after delivery
  • Remote control the machine for diagnosing
  • Technic support by video and telephone
  • Accept your engineer come to our factory for training in free
  • Send engineer to your country with additional cost.
