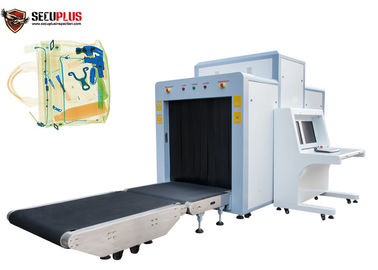

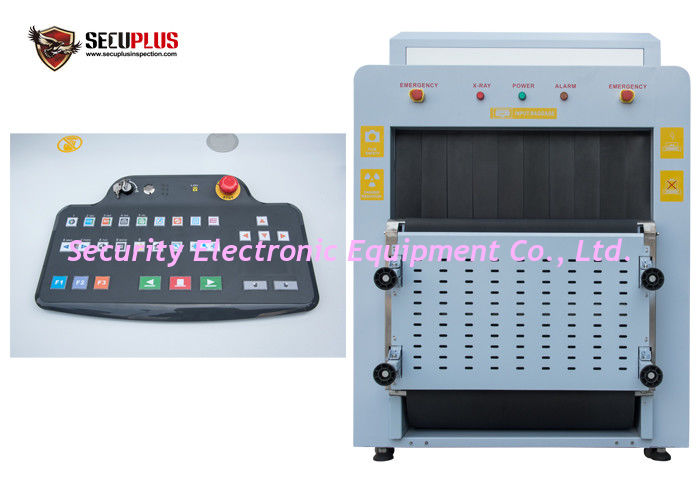

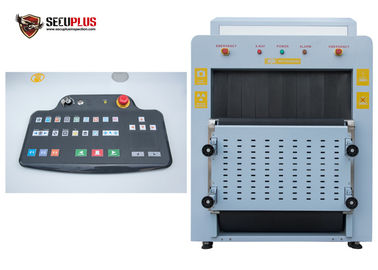

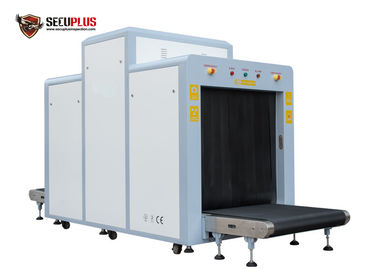

X ray scanning machine SPX100100 X Ray baggage scanner With UK PCB Board
General Specification
|
Tunnel Size:
|
1000(W)*1000(H)mm
|
|
Conveyor Speed:
|
0.22m/s
|
|
Conveyor Max Load:
|
200kgs
|
|
Wire Resolution:
|
32AWG to 38 AWG
|
|
Spatial resolution:
|
horizontal:1.3 or 1.0mm,
vertical: 1.3 or 1.0mm
|
|
Penetration:
|
28 to 34 mm Steel
|
|
Film Safety:
|
Guarantee ISO1600 Film
|
|
X-ray Leakage:
|
<1μGy/h (at a distance of 5cm From external housing)
|
| Pass rate: |
720 bags per hour |
|
Beam direction:
|
Diagonal
|
|
Generate angle:
|
80 degree
|
|
Anode Voltage:
|
100Kv to 160Kv adjustable
|
|
Anode power:
|
0.4 to 0.5mA
|
|
Cooling / Duty Cycle:
|
Oil Cooling /100%
|
|
X-ray Sensor:
|
L-Shaped Photodiode Array (mono-energetic), 12bit Deep
|
|
Monitor:
|
High Resolution Color, LCD Accord, 19 inch
|
|
Image Processing:
|
Edge enhancement, image strengthening, image lightening,
reducing darkening, image returning, image retrieval.
|
|
Image Grey Level:
|
4096
|
|
Image Max Resolution:
|
1024 * 1280 pixel
|
|
Image Processing:
|
24bit for processing real time
|
|
Image storage:
|
Storage 60000 pictures in real time
|
|
Zoom:
|
max 16 Times Enlarge, Whole screen continuous observation
|
|
Operation temperature/Humidity:
|
0℃-45℃/20%-95%(non-condensing)
|
|
Storage Temperature/Humidity:
|
-20℃-60℃/20%-95%(non-condensing)
|
|
Operation Power:
|
220VAC(±10%)50±3Hz
|
|
Power Consumption:
|
1.8 KW (max), 0.3KW(working)
|
|
Noise:
|
<58db
|
Related products:
Image System :
Technical Principle: Dual-energy X-ray Imaging; L Shaped Array,
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17inch
Image Display: High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement: 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall: All preceding images recallable, retrieval.
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number
signature
High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection: Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive: Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions : Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications: Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process: 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536
Operating Environment:
Operation temperature/Humidity: 5℃～+40℃/10%-90%(non-condensing)
Storage Temperature/Humidity: -40℃to 60℃/ 5%-95%(non-condensing)
Operation Power: 220VAC(+10%～-15%50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.3KW (max), 1KW(working)
Noise: <58db
Dimensions (L×W×H) :3638.5mm x1295mm x1916.5 mm
Device Weight: 900Kg
G. Weight: 1370Kg
Packing Volume: 10.63CBM
X-ray Generator:
Anode Voltage: 160kv
Anode power: 0.2-1.2mA
Generate angle: 80 degree
Brand: own made
Generate direct: from top to bottom
Cooling / Duty Cycle: Oil Cooling /100%
Other Characters:
Detect PCB board: UK brand Sensortech
Extension Rollers: customize size length
Support card reader operator access
CD DVR/RW unit: Optional
Computer system: XP system
Monitor: 17inch DELL
