Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 1000*800mm | Conveyor Loading: | 200KG |
|---|---|---|---|
| Have In Stock: | Yes | OEM: | Accept |
| Conveyor Max Load: | 200kg | Certificate: | CE ISO |
| High Light: | airport screening machines,security screening equipment |
||

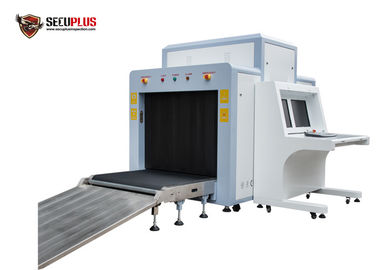

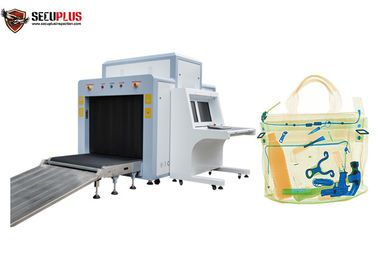

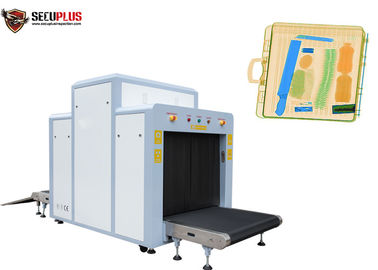

Big size X ray baggage scanner SPX10080 for Station/Hotel/Metro/Museum use x-ray scanner
General Specification :
Tunnel Size: 1000mm×800mm
Conveyor Speed: 0.22m/s
Conveyor height : 338.5mm
Conveyor Max Load:200kg
| X ray Dose per inspection | <1.5μSv |
| Wire Resolution | 38AWG Guarantee 40 AWG typical |
| Penetration | 28-32 mm |
Penetration Resolution :30AWG guarantee, 32AWG typical
Film Safety :Guarantee ASA/ISO1600 Film
X-ray Leakage: <0.5 μSv/h (at a distance of 5cm From external housing)
Image System :
| Image Display | high resolution of 1024 * 1280 pixel |
| Image Grey Level | 65536 |
| Threat Image Projection | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
Technical Principle---------- Dual-energy X-ray Imaging;
X-ray Sensor---------- L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor---------- High Resolution Color, LCD Accord, 17inch
Image Enhancement---------- 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall---------- All preceding images recallable, retrieval.
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number
signature
High Density Region Alarm---------- Impenetrable region alarm and highlight, for possible concealing of
threats and contrabands
Network Applications---------- Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and
network TIP, etc ( Optional) .
Images process---------- 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536
X-ray Generator:
| Anode Voltage | 140kv |
| Anode power | 0.2-1.2mA |
| Cooling / Duty Cycle | Oil Cooling /100% |
Other Characters:
Detect PCB board---------- UK brand Sensortech
Extension Rollers---------- customize size length
Support card reader operator access
CD DVR/RW unit---------- Optional
Computer system---------- XP system
Monitor---------- 17 inch DELL two monitors
