Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 650*500 Mm | Steel Penetration: | 38mm |
|---|---|---|---|
| Main Frame: | Stainless Steel | Wire Resolution: | 40AWG |
| Software: | Multi-language | Multi-engergy: | To Identify Organic And Inorganic Objects |
| Network: | Ethernet | Technical Support: | Life Time |
| Training: | Free | Warranty: | 18 Months |
| High Light: | Baggage checking,xray scanner airport |
||

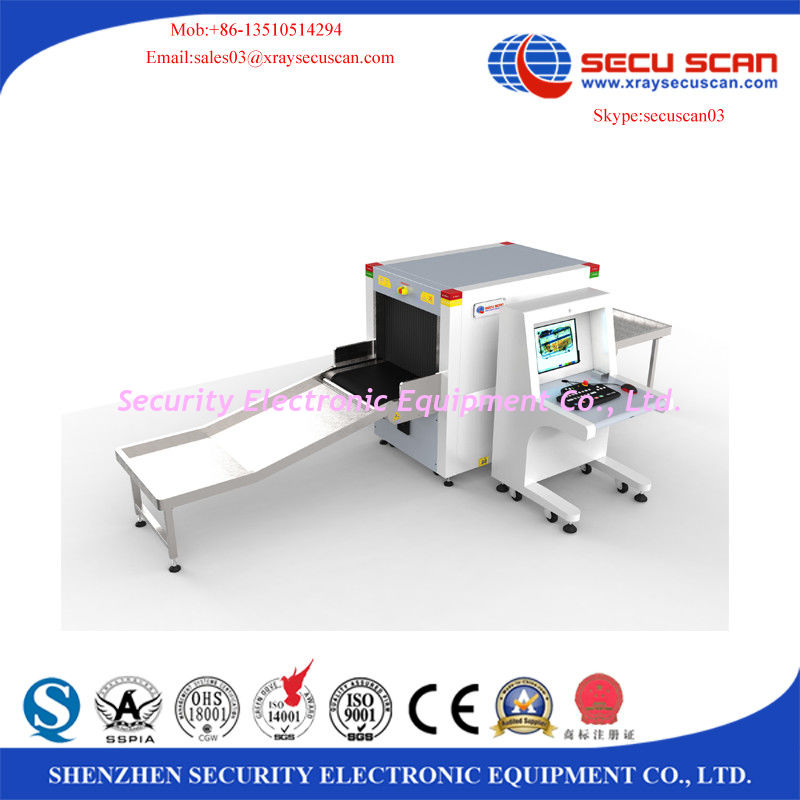

Noiseless Events Airport X Ray Machines Stainless Steel Baggage Scanner Machine
Specifications:
|
Tunnel Size: |
650(W)*500(H)mm |
|
Conveyor Speed: |
0.22m/s |
|
Conveyor Max Load: |
170kgs |
|
Dose per Inspection: |
<2.9 μGy/h |
|
Resolution: |
<0.101mm Metal Wire |
|
Penetration: |
38mm Steel |
|
Film Safety: |
Guarantee ISO1600 Film |
|
X-ray Leakage: |
<0.05 μGy/h (at a distance of 5cm From external housing) |
|
Generate direct: |
Upward |
|
Generate angle: |
80 degree |
|
Anode Voltage: |
140~160Kv |
|
Anode power: |
0.4 to 1.2mA |
|
Cooling / Duty Cycle: |
Oil Cooling /100% |
|
X-ray Sensor: |
L-Shaped Photodiode Array (mono-energetic), 16bit Deep |
|
Monitor: |
High Resolution Color, LCD Accord, 17 inch |
|
Image Processing: |
B/W, color Edge enhancement, image strengthening, image lightening, reducing darkening, image returning |
|
Image Grey Level: |
65536 |
|
Image Max Resolution: |
1024 * 1280 pixel |
|
Image Processing: |
24bit for processing real time |
|
Image storage: |
Storage 100,000 pictures in real time |
|
Zones & Zoom: |
64 Times Enlarge, Whole screen continuous observation |
|
Operation temperature/Humidity: |
0℃-45℃/20%-95%(non-condensing) |
|
Storage Temperature/Humidity: |
-20℃-60℃/20%-95%(non-condensing) |
|
Operation Power: |
187~230VAC, 50/60Hz |
|
Power Consumption: |
0.3KW(working) |
|
Noise: |
<58db |
Advantages
1. Operation training program for end users
2. Free of factory training for engineer from agents to end user
3. Provide on-site trainning when customer requires
4. If quality problems happen in guarantee period, our company will maintain for free.
5. One year free spare parts and life time technical support
6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
7. If you are caught in some problems when using our products, welcome to contact us at any time.
1. CE Certificate
2. ISO9001 Certificate
3. ISO14001 Certificate
4. OHSMS18001 Certificate
5. USFDA Certificate
6. Radiation Safety Certificate From Chinese Government
7. Test Report From Inspection Center Of State Security Ministry
Patent:
1. Security equipment image data transmission system(patent no.: 201020700244.8)
2. One key switch off device for x ray device(patent no.: 201020700256.0)
3. Sensors device for security inspection(patent no.: 201020700245.2)
4. Dangerous liquid detecting circuit(patent no.: 201120107219.5)
