Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Water-proof Grade:	IP68	Memory:	2G(optional 4G)
Graphics:	512M	Hard Disk:	SATA2 Hard Disk 500G
Dual LAN:	At Least One Intel Gigabit	Monitor:	22inch LCD
Scanning Device Weight:	24kg	CPU:	Intel Centurion Duo Or Higher
Speed Of Vehicle:	<30km/h With ALPR, <70km/h Without ALPR
High Light:	under vehicle monintor machine , car surveillance system

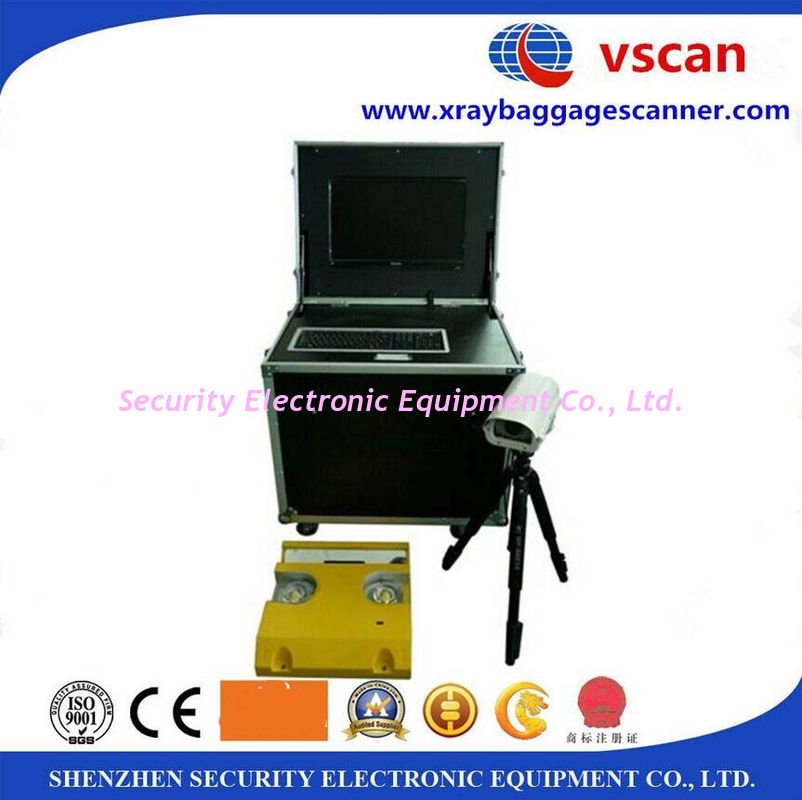

Real Time Display Under Vehicle Inspection System / under vehicle scanning system Police Use

Advantages of UVSS:

Main Technical Indexes:

Vertical resolution of the image:	5000*2048 pixels
Check the width viewing angle:	< 4 meters
Speed of vehicle:	< 30km/h with ALPR(Automatic Licence Plate Recognition)
	< 70km/h without ALPR(Automatic Licence Plate Recognition)
Effective Field of View(FOV):	less than 170°
Auxiliary light:	100W
Weight capacity:	<20T
Water-proof grade:	Ip68
Scanning device weight:	24KG
Scanning device volume:	450mm×400mm×88mm
Communication interface:	RS232/RS422
Operating Temperature:	-10℃ to +75℃
Storage temperature:	-40℃ to +75℃
Operating voltage:	110-240V AC, 50-60HZ

Features of UVIS:

Automatic digital line scan camera, with high-resolution and clarity of the image.
The complete image of under vehicle scanning, without any omissions,and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter.
Preparation of inspection processes to meet a variety of on-site needs.
Multiple scene image monitoring, recording function.
Multi-language user interface design.
Strong scalability to easily achieve a variety of system linkage control.
(Optional)ALPR(Automatic Licence Plate Recognition)
(E.g.: anti-collision system, barrier, etc.).
(Optional) Multiple devices networked control functions.

System Host
