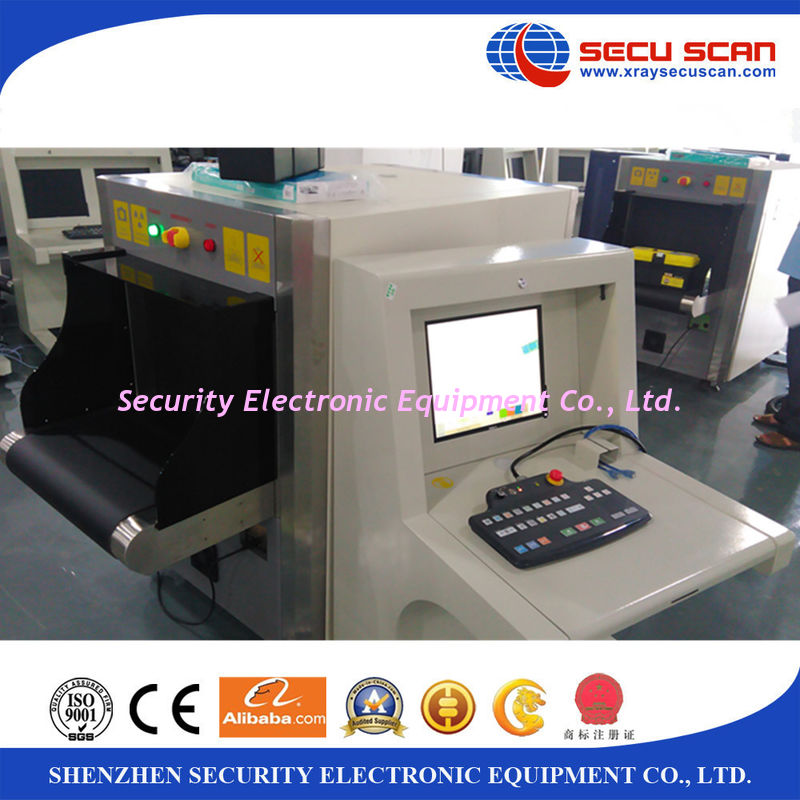

International Standard X ray baggage scanner AT6040 with high performance

International Standard X ray baggage scanner AT6040 with high performance

Top Scanning ability Stable and reliable: each machine had strict high and low temperature test, high humidity test, anti-shock test, MTBF 10000 hours
Automatic sensor roller (Optional)
Upgrade quality solution (Optional)

X-ray Generator

Image System

•  X-ray Sensor: L-Shaped Photodiode Array(multi-energetic) , 12bit Deep
•  Monitor: High Resolution Color, LCD Accord, 17 inch (19 inch optional)
•  Image Processing: Edge enhancement, image strengthening, image lightening,reducing darkening, image returning, image retrieval.
•  Image Grey Level: 4096
•  Image Processing: 24bit for processing real time
•  Image storage: Storage 60000 pictures in real time
•  Zoom: max 16 Times Enlarge, Whole screen continuous observation
•  Assist of detecting organic and inorganic items such as weapons,explosives and narcotics using different colour show

General Specification

Tunnel Size: 600(W)*400(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 170kg
Wire Resolution: 32AWG to 40AWG
Spatial resolution: horizontal:1.3 or 1.0mm, vertical: 1.3 or 1.0mm,
Penetration: 30 to 40mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <1 μSv/h (at a distance of 5cm from external housing)
Pass rate: 720 bags per hour

Installation Data

Operation temperature/Humidity:0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:-20℃-60℃/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.0 KW (max), 0.7KW(working)
Noise: <58db

Our work shop

Final commissioning before shipment

Two keyboards

Our service

All products purchased in our company are guaranteed to keep in good repair for one year.

If quality problems happen in guarantee period, our company will maintain for free.

Additionally, our company provides technical support and fittings for life.

After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.

If you are caught in some problems when using our products, welcome to contact us at any time.
