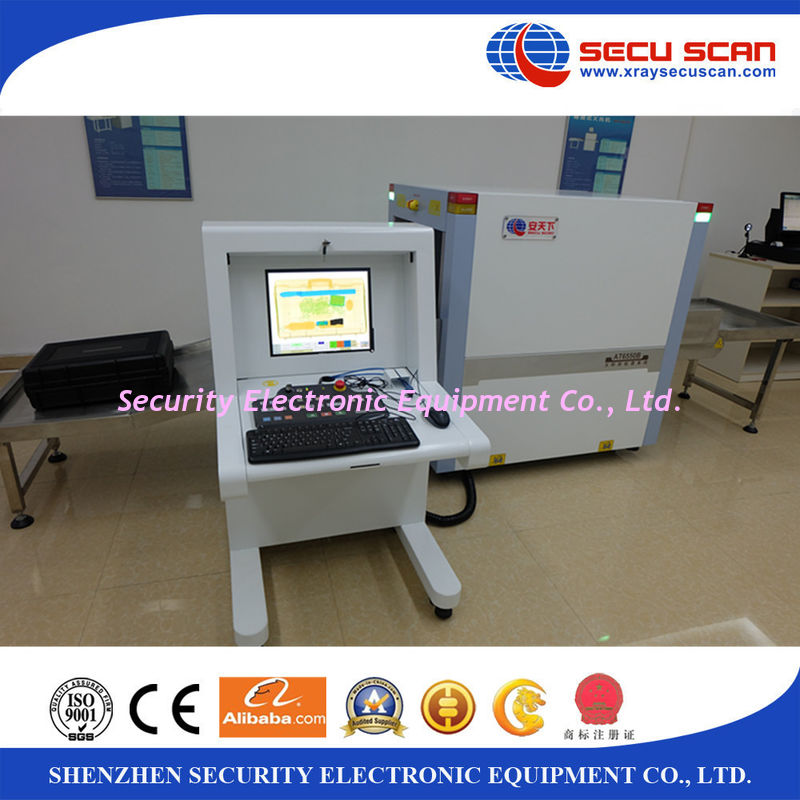

lights alarm Xray baggage scanner AT6550B with high performance

Lights alarm Xray baggage scanner AT6550B with high performance

Multi-function Keyboard

General Specification

1. Tunnel Size: 653(W)*514(H)mm
2. Conveyor Speed: 0.22m/s
3. Conveyor height : 690mm
4. Conveyor Max Load: 170kg
5. Wire Resolution:40AWG
6. Spatial resolution Level: dia1.0mm,Vertical: dia1.0mm
7. Steel Penetration: 38mm guaranteed, 40mm typical
8. Film Safety : guarantee ISO 1600 film
9. X-ray Leakage: <1.0μ Sv / hr(at a distance of 5cm From external housing)

Image System

X-ray Sensor: L-Shaped Photodiode Array ,16bit deep .

Monitor: High Resolution Color, LCD Accord, 17 inch

Image Processing: Black / white, abundant energy , variable absorptive, elimination of inanimate matter, elimination of organism, super-enhance, reversed color, high energy penetration, low energy penetration, image strengthening, image lightening, reducing darkening.

Image storage: Storage 100,000 pictures in real time

Zoom: 32X/64X Times Enlarge, Whole screen continuous observation Multi-energetic distinguish retrieval. Objects: Selective detection of Objects by atomic number, organic objects in orange, inorganic objects in blue, mixture in green.

High-energy/low energy: switch from high energy to low energy
Assist to detect drug and explosive powder

TIP function: Automatic identification of threads such as knifes guns, etc.

X-ray Generator

Computer Character

Computer CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB Little low version, Motherboards: Intel G41, Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1and 1PCI BX press *16 .

Memory: 2GB1333MHz DDR3 RAM, with Minimum2 total DIMM slots. Hard Disk drive: 500GB 7200 rpm serial ATA.

Other Characters

1. Keyboard Protection: IP43
2. Machine Protection: IP20
3. Dual direction scanning
4. Extension Rollers: Optional
5. UPS: Optional

• Support card reader operator access
• Monitor Table: one LCD monitors, made in stainless steel.
• it have vents and transparent parts
• Computer system: Window XP System LCD monitor: 19 inch (optional)
• Certificates: ISO9001:2008, CE

Operating Environment

1. Operation temperature/Humidity: 0℃-45℃/10%-95%(non-condensing)
2. Storage Temperature/Humidity: -40℃-60℃/10%-95%(non-condensing)
3. Operation Power: 220VAC (±10%), 50Hz
4. Power Consumption: 1.0 KW (max), 1.0KW (working)
5. Noise: <58db
