Middle Size X-ray Baggage Inspection System Tunnel size 600mm×400mm

I'm Online Chat Now

Middle Size X-ray Baggage Inspection System Tunnel size 600mm×400mm

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Middle Size X-ray Baggage Inspection System Tunnel size 600mm×400mm

Product Details:
Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO
Model Number: AT6040
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Case Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets/month
Detailed Product Description
UPS And Extension Roller: Optional Place Of Origin:: Shenzhen, China
Feature:: Reliable Penetration In 30-38mm Steel Optional Images Display:: 6 Color For Distinguishing Objects
Scanner Dimension: Length: 2,045 Mm Width: 850mm Height: 1,295mm Aprrox Weight: 600KG
High Light:

airport screening machines


security screening equipment

Middle Size X-ray Baggage Inspection System Tunnel size 600mm×400mm

Installation Data:

  • Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
  • Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
  • Operation Power: 220VAC(± 10%)50± 3Hz
  • Power Consumption: 1.0 KW (max), 0.7KW(working)
  • Noise: <58dB.

General Specification:


Tunnel Size 608(W)*410(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 150kg
Dose per Inspection <1.4Gy/h
Resolution < 0.0787mm Copper Wire
Spatial Resolution Level Dia1.0mm
Vertical esolution Level: Dia1.0mm
Vertical: Dial1.0mm
Penetrate resolution 40mm Steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.1 μ Gy/h (at a distance of 5cm From external housing)



X-ray Generator:


Generate direct Upward
Generate anger 80 degree
Anode Voltage 160Kv
Anode power 0.7 mA
Cooling / Duty Cycle Oil Cooling /100%

Image System:


X-ray Sensor L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Image Processing Edge enhancement, image strengthening, image lightening, , reducing darkening, image returning, image retrieval.
Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zoom 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation

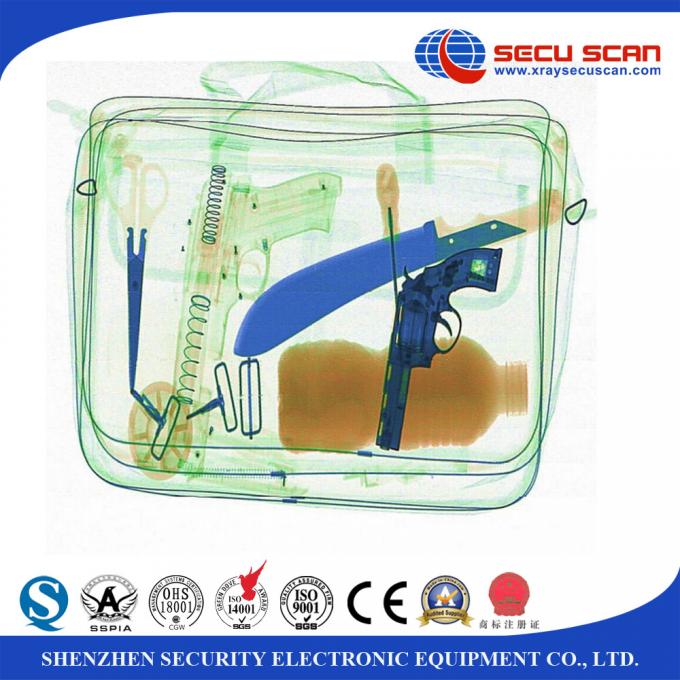

Multi-energetic distinguish objects Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy Switch from high energy to low energy
Adavantage Assist to detect drug and explosive powder


Computer Specs:

  1. CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB
  2. Motherboards: Intel G41/Nvidia chip set, 7025 or better on OEM motherboard
  3. Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1 and 1PCI BX press *16
  4. Memory: 2GB 1333MHz DDR3 RAM, with Minimum2 total DIMM slots.
  5. Hard Disk drive: 500GB 7200 rpm serial ATA HDD.
  6. Mouse: Optical
  7. Bays: 4 nos (2 nos, 5.25 inches for optical media drives and 2 nus 3.5 inches for hard disk drives)
  8. Ports: 6USB ports (with at least 2 in front), 1 serial port, parallel port, 1 ps/2 key board and 1 ps2 mouse port, audio ports for microphone and headphone in front.
  9. Cabinet: Mini Tower
  10. DMI: DMI 2.0 compliance and support.
  11. CD-R/RW Drive: CD Writer
  12. Networking facility: 10/100/1000 on board integrated network port with remote booting facility remote system installation, remote wake up, out of bad management using any standard management software.
  13. Operating System: Windows XP, Business reloaded with Media and documentation and certification of authenticity
  14. OD Certification: Win Logo Vista Business OS/Windows XP and Linux Certifications.
  15. Power Management: Screen blanking, hard disk and system idle mode in power on, set up password, power supply SMPS surge protected
  16. Preloaded software: Norton, MCAfee, E-trust of equivalent Antivirus (latest version) with one year license.

Company information:


Sebrina,from Security Electronic Equipment Co.,Ltd(SEE) .

The biggest manufacturer of threats detecting device in South of China.
With professional R&D engineer team are specialized in:
  • Under vehicle inspection system(new)-mirror & camera
  • Explosive and Drug trace detection(new)
  • Dangerous liquid scanner(new)
  • X-ray screening system for baggage
  • Walk through metal detectors
  • Hand held metal detector

Welcome send me inquiry for more detail and competitive price.

Middle Size X-ray Baggage Inspection System Tunnel size 600mm×400mm 0

Middle Size X-ray Baggage Inspection System Tunnel size 600mm×400mm 1
