Payment & Shipping Terms:
|Vertical Resolution:||5000*2048 Pixels||Water-proof Grade:||IP68|
|Vehicle Scanning Image:||B/W, Color||Enterprise:||Factory|
|Operating Voltage:||110-240V AC, 50-60HZ||Storage Temperature:||-20℃ To +75℃|
|Warranty:||18 Months||Camera Angle:||170 Degree|

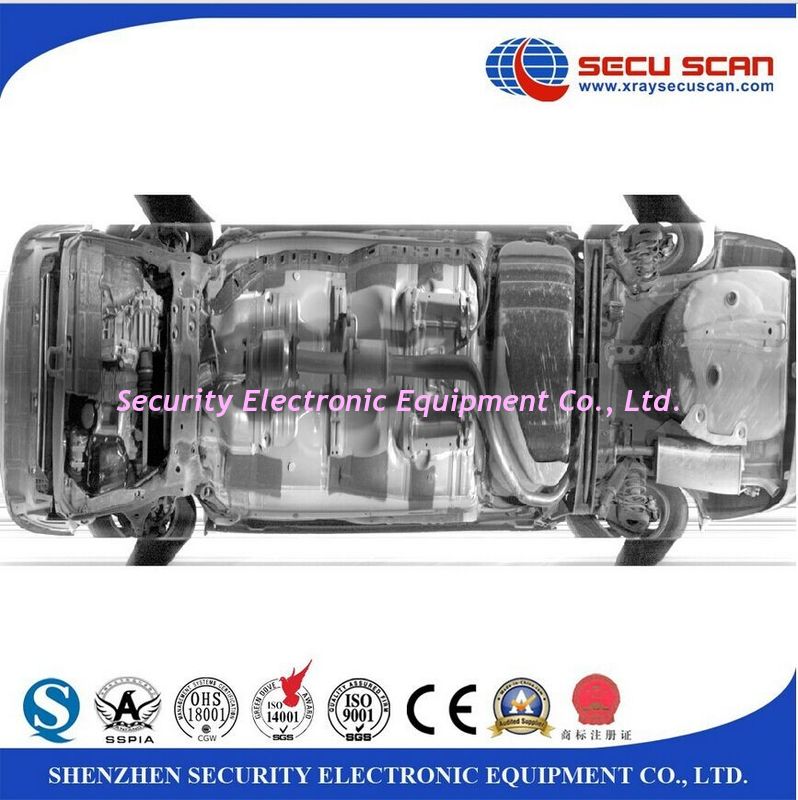

Airport Under Vehicle Inspection System , under vehicle scanner 170 Degree Camera Angle
VSCAN Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom. AT3000 UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.
Range of application:
Black and white under vehicle scanning camera:
|Vertical resolution of the image:||
|Check the width viewing angle:||not less than 4 meters|
|Speed of vehicle:||1~65km/h|
|Effective FOV:||not less than 170°|
|Bearing weight:||more than 30T|
|Waterproof grade:||IP68 meet the condition of working around the clock|
|Scanning device weight:||18KG|
|Scanning device volume:||410mm×370mm×93mm|
|Operating Temperature:||-10℃ to 55℃|
|Storage temperature:||-40℃ to +75℃|
|Operating voltage:||110-240V AC, 50-60HZ|
Color under vehicle scanning camera:
|Camera: Sensor||line scans CCD|
|Power Supply||24VDC, 3A|
|Pixel : 2096 x3 ;||Type:Color|
|Horizontal Frequency :||9K|
|Min operate time :||110us|
|The length of the line array :||29mm|
|Pixel size :||14um x 14um|
|Sampling bits wide :||8bit|
|Dynamic Range :||76db|
|Transmission mode :||(Gigabit Ethernet) /100m|
|Power Dissipation :||less 8W,12V|
|Working Temperature:||0℃ to 60℃|
1. Free training in our factory
2. Accept arrange engineer to your country with additonal cost
3. After-sales service online 18/24 hours
4. Remote control the machine for maintenance diagnosing
5. Free spare parts supply during the warranty
6. Exclusive agent protection and special support for market
7. OEM and ODM service accept
Welcome join SECU SCAN to become our distributor in your country.
We have lots of policy to support you be stronger in your market.
Why will you cooperate with us?
1. SECU SCAN as the brand of our security equipments and entered into international market since 2008.
2. And we have entered into the security industry for more than 15 years.
3. Professional engineer group accept your suggest for customized design.
4. 24 Hours after sales service support
5. Professional sales reply you with any questions you have in time
