Multi Language X Ray Luggage Scanner 80 Degree Generate Angle

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

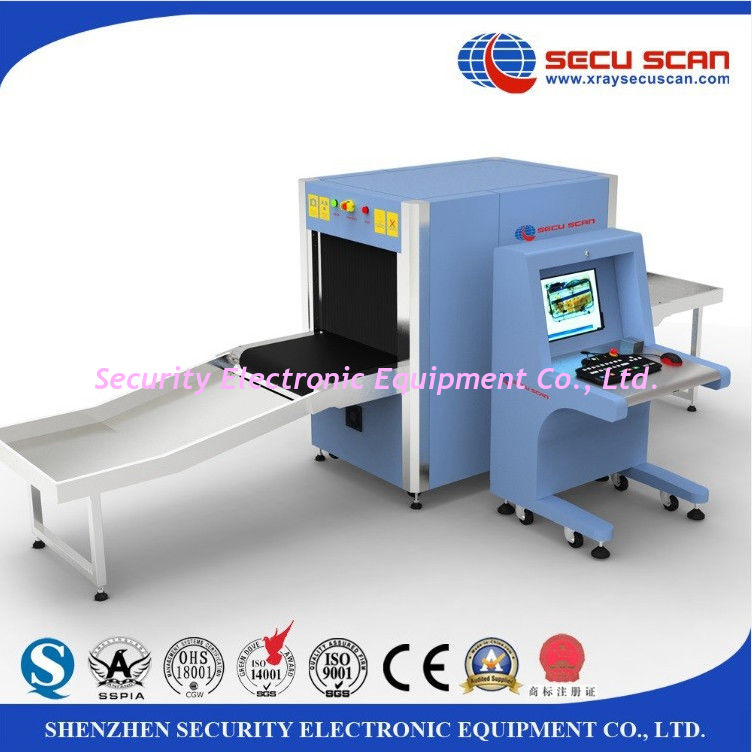

Multi Language X Ray Luggage Scanner 80 Degree Generate Angle

Multi Language X Ray Luggage Scanner 80 Degree Generate Angle
Multi Language X Ray Luggage Scanner 80 Degree Generate Angle Multi Language X Ray Luggage Scanner 80 Degree Generate Angle Multi Language X Ray Luggage Scanner 80 Degree Generate Angle Multi Language X Ray Luggage Scanner 80 Degree Generate Angle

Large Image :  Multi Language X Ray Luggage Scanner 80 Degree Generate Angle

Product Details:
Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO, US.FDA, SGS
Model Number: AT6040
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: 7 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Detailed Product Description
Tunnel Size: 615*418 Mm Steel Penetration: 38mm
Main Frame: Stainless Steel Wire Resolution: 40AWG
Software: Multi-language Multi-engergy: To Identify Organic And Inorganic Objects
Network: Ethernet Technical Support: Life Time
Training: Free Warranty: 18 Months
High Light:

Baggage checking

,

baggage x ray scanner



Multi Language X Ray Luggage Scanner 80 Degree Generate Angle



Specifications:



Tunnel Size:

615(W)*418(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

170kgs

Dose per Inspection:

<2.9 μGy/h

Resolution:

<0.101mm Metal Wire

Penetration:

38mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.05 μGy/h (at a distance of 5cm From external housing)

Generate direct:

Upward

Generate angle:

80 degree

Anode Voltage:

140~160Kv

Anode power:

0.4 to 1.2mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  16bit Deep

Monitor:

High Resolution Color,  LCD Accord,  17 inch

Image Processing:

B/W, color Edge enhancement,  image strengthening, image lightening,  reducing darkening,  image returning

Image Grey Level:

65536

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 100,000 pictures in real time

Zones & Zoom:

64 Times Enlarge,  Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

187~230VAC, 50/60Hz

Power Consumption:

 0.3KW(working)

Noise:

<58db



Advantages

  • We have 20000 square meter factory, 4 floor, 260 employess and 5 R&D team
  • We have passed ISO9001, 16001, OHSMS18001, Health Inspection
  • We have full security product line which can meet your different needs
  • We never stop researching and will have one or two new product each year
  • We listen to our customer and solve their problems
Our Services :



1. Operation training program for end users

2. Free of factory training for engineer from agents to end user

3. Provide on-site trainning when customer requires

4. If quality problems happen in guarantee period, our company will maintain for free.

5. One year free spare parts and life time technical support

6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.

7. If you are caught in some problems when using our products, welcome to contact us at any time.





Certifications :

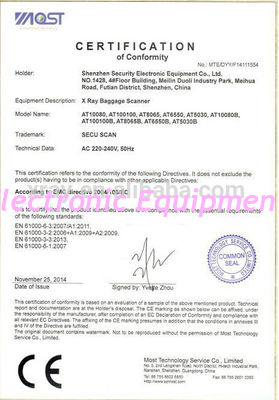

1. CE Certificate

2. ISO9001 Certificate

3. ISO14001 Certificate

4. OHSMS18001 Certificate

5.  USFDA Certificate

6. Radiation Safety Certificate From Chinese Government

7. Test Report From Inspection Center Of State Security Ministry



Patent:



1. Security equipment image data transmission system(patent no.: 201020700244.8)

2. One key switch off device for x ray device(patent no.: 201020700256.0)

3. Sensors device for security inspection(patent no.: 201020700245.2)

4. Dangerous liquid detecting circuit(patent no.: 201120107219.5)
