Auto Alarm 0.22 M / S Security X Ray Machines Multi - Language Support

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

Auto Alarm 0.22 M / S Security X Ray Machines Multi - Language Support

Auto Alarm 0.22 M / S Security X Ray Machines Multi - Language Support
Auto Alarm 0.22 M / S Security X Ray Machines Multi - Language Support Auto Alarm 0.22 M / S Security X Ray Machines Multi - Language Support Auto Alarm 0.22 M / S Security X Ray Machines Multi - Language Support Auto Alarm 0.22 M / S Security X Ray Machines Multi - Language Support

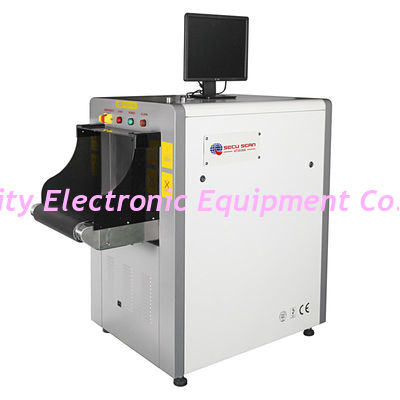

Large Image :  Auto Alarm 0.22 M / S Security X Ray Machines Multi - Language Support

Product Details:
Place of Origin: CHINA
Brand Name: SECUSCAN
Certification: CE, ISO9001, FDA, TSA
Model Number: AT5030A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden box
Payment Terms: Western Union, L/C, T/T
Supply Ability: 300 set per month
Detailed Product Description
Alarm: Auto Alarm For Weapons Image: Color, B/W
Service: Globla Service Center Network Service: Globla Service Center Network
Airport: USA TSA Approvel Airport: USA TSA Approvel
Software: Multi-language Support Software: Multi-language Support
TIP: Threat Image Protection TIP: Threat Image Protection
Roller: Input And Output Tunnel Roller: Input And Output Tunnel
Techincal Training: Free Techincal Training: Free
Warranty: 18 Months Warranty: 18 Months
High Light:

airport security x ray machine

,

airport x ray machine



Auto Alarm 0.22 M / S Security X Ray Machines Multi - Language Support





Model: AT-5030C



General Specification :



Dimension: 1660(L)*746(W)*1165(H)mm
  Tunnel Size:  500(W)*300(H)mm
Conveyor Speed:  0.22m/s
 Conveyor Max Load: 150kg
Conveyor Height:  663mm
Wire Resolution:  38AWG standard, 40AWG typical
Steel Penetration:   32mm typical
 Film Safety:  Guarantee ISO1600 Film
 X-ray Leakage: <1 μSv/h (at a distance of 5cm From external housing)





X-ray Generator :



Generate direct: Upward

Generate anger: 80 degree

Anode Voltage: 80Kv

Anode power: 0.3mA

Cooling / Duty Cycle: Oil Cooling /100%



Image System :



X-ray Sensor: L-Shaped Photodiode Array ,16bit deep .

* X ray detector board : United kingdom import

* Monitor: High Resolution Color, LCD Accord, 17 inch

* Image Processing: Black / white, Color

* Memory gray level : 65536

* Image Max Resolution: 1024 * 1280 pixel Image

* Processing: 24bit for processing real time

* Image storage: Storage 100,000 pictures in real time

* Zoom: 32 Times Enlarge, Whole screen continuous observation

* Standard parts: menu, electricity testing, date/time display, auto-counting of objects detected, operator license  number, maintenance record, system start up/ x ray generator, radial beam timing, operating mode display



* TIP function: Dangerous goods image is provided by the insert function (TIP), which can be convenient for training and assessing the operator’s image and recognition ability.



* Network transmission



Computer :



· CPU: Intl Core 2 Duo 3400, 2.6GHz,

. Memory: 2GB, 1333MHz

· Hard Disk drive: 500GB.

· Operating System: Windows XP



 Operating Environment :



* Operation temperature/Humidity: 0℃-45℃/10%-95%(non-condensing)

* Storage Temperature/Humidity: -40℃-60℃/10%-95%(non-condensing)

* Operation Power: 220VAC(±10%), 50/60Hz Power

* Consumption: 0.8 KW Noise: <58db



Certifications



1. CE Certificate

2. ISO9001 Certificate

3. ISO14001 Certificate

4. OHSMS18001 Certificate

5.  USFDA Certificate

6. Radiation Safety Certificate From Chinese Government

7. Test Report From Inspection Center Of State Security Ministry



Patent:



1. Security equipment image data transmission system(patent no.: 201020700244.8)

2. One key switch off device for x ray device(patent no.: 201020700256.0)

3. Sensors device for security inspection(patent no.: 201020700245.2)

4. Dangerous liquid detecting circuit(patent no.: 201120107219.5)
