24 Zones Alert Metal Detection Systems For Gold Mine Comapny

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  24 Zones Alert Metal Detection Systems For Gold Mine Comapny

Product Details:
Place of Origin: CHINA
Brand Name: SECUSCAN
Certification: CE, ISO9001, ISO18001
Model Number: AT300C
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: wooden pallet
Payment Terms: D/P, Western Union, L/C, D/A, T/T
Supply Ability: 300 units per month
Detailed Product Description
Power: 8 W Technology: Updated DSP Technology
Setting Security: Key Lock And Two Level Of Access Codes Frequency: 4000~8000 Adjustable
Water Proof: IP55 Resistant Construction: Aluminum Case
Alarm: LED Alarm Show Weapon Location Display: Big LCD Screen
Warranty: 18 Months Network: By WIFI Connection
High Light:

metal detector door


door frame metal detector

24 Zones Alert Metal Detection Systems For Gold Mine Comapny



Model No.: AT-300C


    SECUSCAN Walk through Metal Detector can easily detect metal weapons, such as knife and gun, and any metal article which is hidden in human body.


   Levels adjustable sensitivity for better detection of hazardous metals. This model allows a height on person “display actually indicates, by means of LED light bar, the position of the weapons on the person and give alarm”. Extremely anti-interference enable max 100pcs WTMD work side by side.


★ Updated DSP technology
★ Automatically Calibration
★ Perfect immunity to external interferences
★ High Reliability and speed of detection
★ Single zone, 8,16,24 detecting zones optional to the clients
★ Water proof (optional)

Installation Data :


   Input electric current: 100VAC to 240VAC, 50-60 Hz.

  Output power: 15V, 6A

   Power: 8W

   Operating Temperature: -20℃~+45℃

●  Storage Temperature:-20℃~+45℃

●   Relative humidity: - 10 º C to + 65 C; 0 to 95% (without condensation)

   Gross Weight: 80kg

   Outer frame: 2220mm (h) x 820mm (w) X 610mm (d)

   Inner frame: 2000mm (h) X 700mm (w) X 610mm (d)


Alarm Modes Visible signals:


1)  multi-zone display bar for “height on person” location

2)  Green and red metering signals proportional to the mass of the object detected Audible signals: high acoustic intensity alarm signal




  Each function is be programmable and controlled by microprocessor
●  High sensitivity, accurate alarm
●  User Programmable Processor

●  Adjustable Zone Sensitivity

  Self-diagnostic procedures

 LED light bar on both door panel for “height on person” location.

  Tell the problem in words

  Input MBSU battery backup, in time power transfer. (optional)

  300 sensitivity level adjustable

  Friendly LCD operate interface, local language support.

  Modular structure to easy after service

  Auto Scan environmental interference at site.

  Automatically adapt to the working environment.

  Good performance in anti-interference ability.

  Calculate traffic flow and resultant alarms

  Security Password protection

  Tamper-Proof: operate program is protected by password.

  Harmless to pregnant women, people with pacemakers and / or any other vital device

  Command to other device like barrier, turnstile, etc (Optional)


★  In accordance with: EN60950, WN50081-1, And EN50082-1
★  CE Certificate; ISO 9001:2008 Certificate, National standard

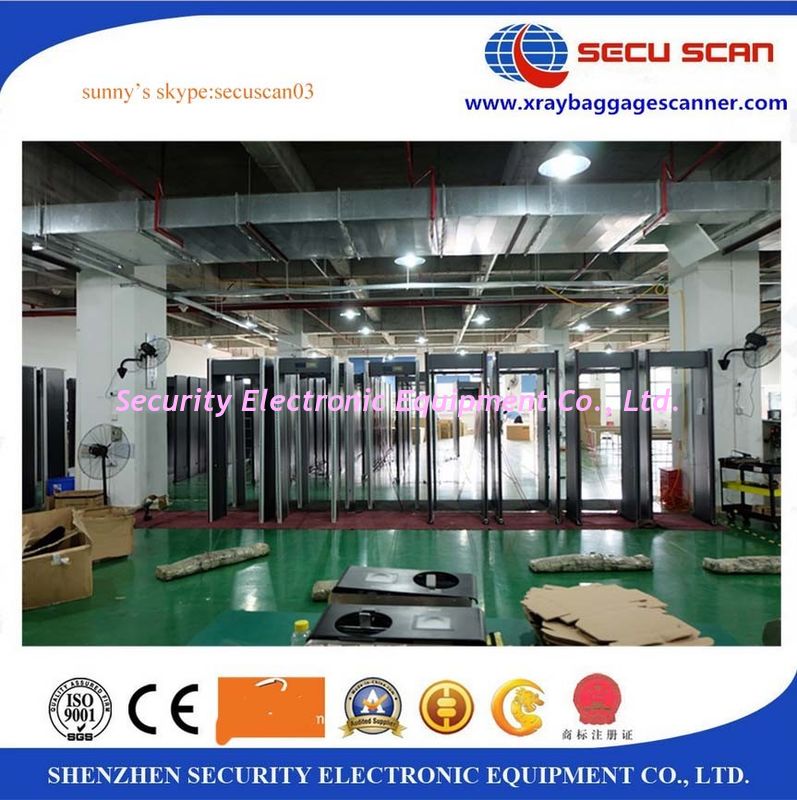

SECUSCAN metal detector gate workshop
