Cargo X Ray Luggage Scanner / Baggage Scanners At An Airport

Cargo X Ray Luggage Scanner / Baggage Scanners At An Airport
Cargo X Ray Luggage Scanner / Baggage Scanners At An Airport Cargo X Ray Luggage Scanner / Baggage Scanners At An Airport Cargo X Ray Luggage Scanner / Baggage Scanners At An Airport Cargo X Ray Luggage Scanner / Baggage Scanners At An Airport

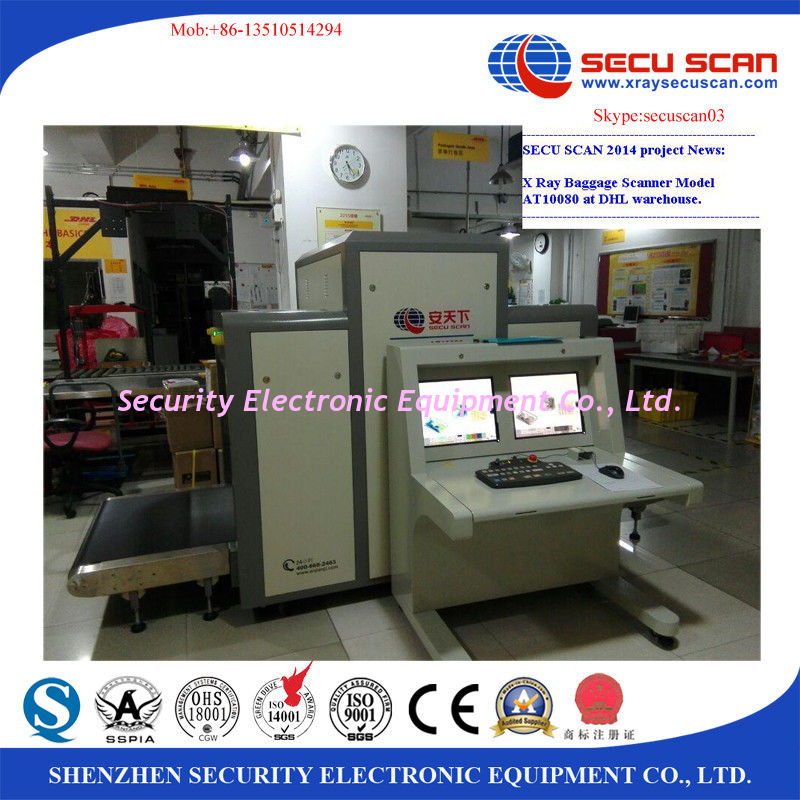

Large Image :  Cargo X Ray Luggage Scanner / Baggage Scanners At An Airport

Product Details:
Place of Origin: CHINA
Brand Name: SECUSCAN
Certification: US.FDA, CE, ISO9001, TSA
Model Number: AT10080
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden box
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 300 sets per month
Detailed Product Description
Material: Stainless Steel Main Frame Tunnel Sime: 1000*800 Mm
Detector Board: UK Import X Ray Generator: USA Spellman
Belt Load: 200kg Density Objects: Alarm
Software: Mulit-language Support Technical Training: Free
Warranty: 18 Months
High Light:

airport screening machines

,

security screening equipment



Cargo X Ray Luggage Scanner / Baggage Scanners At An Airport





  General Specification :



  Tunnel Size:   1000(W)*800(H)mm
  Conveyor Speed:    0.22m/s
  Conveyor Max Load:    200kg
  Wire Resolution:   40AWG
  Spatial resolution:    horizontal:1.3 or 1.0mm,   vertical: 1.3 or 1.0mm
  Penetration:    38mm Steel
  Film Safety:    Guarantee ISO1600 Film
  X-ray Leakage:   <1 μSv/h (at a distance of 5cm from external housing)
  Pass rate:   720 bags per hour



Installation Data :



 Operation temperature/Humidity:

  0℃-45℃/20%-95%(non-condensing)
  Storage Temperature/Humidity:   -20℃-60℃/20%-95%(non-condensing)
  Operation Power:   187~240VAC, 50/60Hz
  Power Consumption:     0.9KW(working)
  Noise:   <58db



X-ray Generator :



  Beam direction: Diagonal    Diagonal

  Generate angle:

  80 degree
  Anode Voltage:   160Kv
  Anode power:    0.6 to 1.0mA
   Cooling / Duty Cycle:    Oil Cooling /100%



Image System :



  X-ray Sensor:    L-Shaped Photodiode Array  (multi-energetic) , 12bit Deep
  Monitor:    High Resolution Color, LCD Accord, 17 inch
 Image Processing:    Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning,image  retrieval.
Image Grey Level:   4096
 Image Processing:   24bit for processing real time
  Image storage:   Storage 100,000 pictures in real time
 Zoom:   max 64 Times Enlarge, Whole screen continuous observation



Assist of detecting organic and inorganic items such as weapons, explosives and narcotics using different colour show :



Cargo X Ray Luggage Scanner / Baggage Scanners At An Airport 0

Cargo X Ray Luggage Scanner / Baggage Scanners At An Airport 1



Our Services

  1.  Free training in our factory
  2. Technic support by telepone or video
  3. Accept arrange engineer to your country with additonal cost
  4. After-sales service online 18/24 hours
  5. Remote control the machine for maintenance diagnosing
  6. Free spare parts supply during the warranty
  7. Exclusive agent protection and special support for market
  8. OEM  and ODM service accept
