Home ProductsUnder Vehicle Surveillance System

Car bomb detector/Under Vehicle Inspection System AT3300 High Resolution UVSS/UVIS for airport use

China SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

Car bomb detector/Under Vehicle Inspection System AT3300 High Resolution UVSS/UVIS for airport use

Car bomb detector/Under Vehicle Inspection System AT3300 High Resolution UVSS/UVIS for airport use
Car bomb detector/Under Vehicle Inspection System AT3300 High Resolution UVSS/UVIS for airport use
video play

Large Image :  Car bomb detector/Under Vehicle Inspection System AT3300 High Resolution UVSS/UVIS for airport use

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: ISO CE, FCC, ROHS
Model Number: SPV-3300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 2 week/1 month
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 sets per month
Detailed Product Description
Input: 2 Channels Induction Coil Output: 1 Channel Switch Type 12VDC
Camera: Sensor: Line Scans CCD Resolution: 5000*2048 Pixels
Have In Stock: Yes Illumination: LED
Size: 1200mm X 350mm
High Light:

under vehicle monintor machine

,

car surveillance system

Car bomb detector Under Vehicle Inspection System SPV-3300 High Resolution UVSS/UVIS for airport use

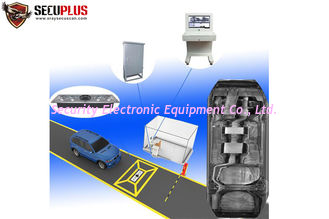

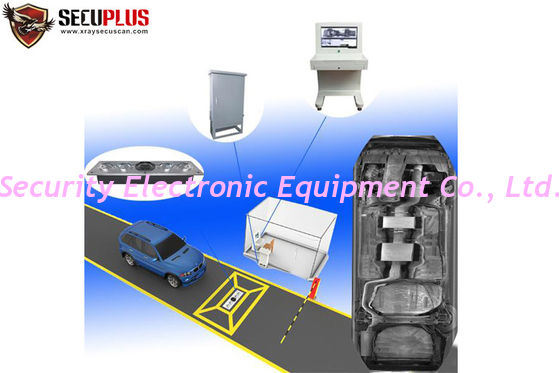

SECUPLUS  Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom. UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.



Highlight:



Special air-drying circulation system
With intelligent alarm
Weather proof scanning unit(IP 68)
Anti-fog function
To connect anti-collision system, barrier,etc,
To compatibly packing management solution



Features:

  1. Multi entrance management model, management, and statistics of entering and exiting vehicles
  2. Auto digital line scan, high-resolution undercarriage imaging.
  3. High automation, easy to be used
  4. Applicable to variety of vehicles, wide vision.
  5. Test will be completed during the vehicle maneuvers
  6. without stopping, adapted to different speed.
  7. Undercarriage image can be stored, retrieved, searched or compared with other images.
  8. Avariety of image processing methods: enlarge, stretching and cutting.
  9. (Optional)ALPR-Automatic License Plate Recognition and RFID technology. associative storage of various
  10. vehicle information and undercarriage images.

Embedded Screening Part:

Camera Sensor: line scans CCD
Resolution 5000*2048 pixels
Power Supply 24VDC, 3A
  • Illumination: LED
  • Power Supply: 24VDC,150W
  • Size: 1200mm x 350mm
  • Operating Temperature Range: -20 degree to +70 degree

Controller:



● Input: 2 channels induction coil
● Output: 1 Channel switch type 12VDC
● Communication port: RS485, Ethernet(Optional)
● Operating Temperature: -10℃ to 55℃



System Host:

Brand Grantech (SYM76941VGGA)
CPU Intel(R)Celeron(R)CPU
Memory 2G( optional 4G)



  • E3400@2.6GHz 2.59 GHz
  • Graphics:512M
  • Hard Disk: SATA2 Hard Disk 500G
  • Dual LAN (At least one Intel Gigabit)
  • USB2.0 (Up to 2 pieces)
  • Monitor: 22 inch LCD, resolution up to 1920*1080
  • Scene Video Record: 4 channel, Compression algorithm of scene video: H264

Work shop:



Car bomb detector/Under Vehicle Inspection System AT3300 High Resolution UVSS/UVIS for airport use 0

Car bomb detector/Under Vehicle Inspection System AT3300 High Resolution UVSS/UVIS for airport use 1

Car bomb detector/Under Vehicle Inspection System AT3300 High Resolution UVSS/UVIS for airport use 2
