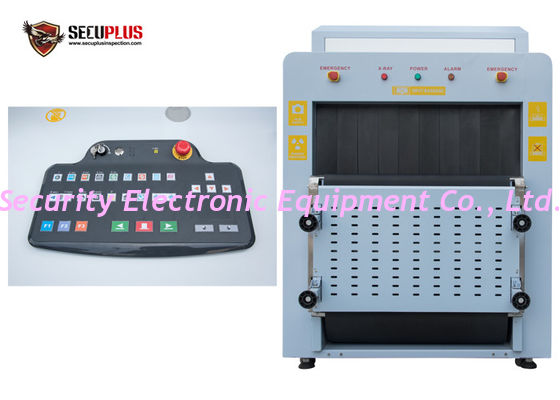

High Performance X Ray Baggage Scanner SPX100100 X Ray Security Scanner

High Performance X Ray Baggage Scanner SPX100100 X Ray Security Scanner

General Specification

●  Tunnel Size: 1000(W)*1000(H)mm
●  Conveyor Speed: 0.22m/s
●  Conveyor Max Load: 200kg
●  Dose per Inspection < 1.7μGy/h
●  Resolution: 32AWG to 40AWG
●  Spatial resolution: Level: dia1.3mm, Vertical:dia1.0mm
●  Penetrate resolution: 24WG to 34AWG
●  Penetration: 27mm to 40mm Steel
●  Film Safety: Guarantee ISO1600 Film
●  X-ray Leakage: <0.1 μGy/h (at a distance of 5cm From external housing)

X-ray Generator

●  Generate direct: Downward
●  Generate anger: 80 degree
●  Anode Voltage: 100~160Kv
● Anode power: 0.4 to 1.2mA
●  Cooling / Duty Cycle: Oil Cooling /100%

Image System

●  X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
●  Monitor: High Resolution Color, LCD Accord, 17 or 19inch
●  Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
●  Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
●  Image Processing: 24bit for processing real time
●  Image storage: Storage 60000 pictures in real time
●  Zoom: 2,4,8,16 Times Enlarge, Whole screen continuous observation
●  Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
●  High-energy/low energy : switch from high energy to low energy
●  Assist to detect drug and explosive powder

Installation Data

● Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
● Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
● Operation Power: 220VAC(±10%)50±3Hz
● Power Consumption: 1.0 KW (max), 1.0KW(working)
● Noise: <58db
