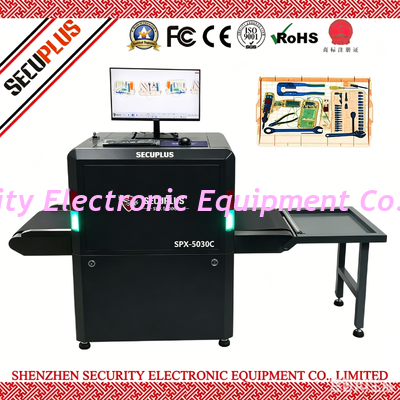

Dual-Energy 100kV X-ray Security Scanner, Model SPX-5030C – for Small Parcel & Baggage Screening

All Products

X Ray Baggage Scanner (394)

Baggage And Parcel Inspection (257)

Walk Through Metal Detector (156)

Under Vehicle Surveillance System (174)

Explosives Detector (64)

Non Linear Junction Detector (5)

Road Safety Equipment (23)

Bottle Liquid Scanner (32)

Metal Detector Gate (78)

Portable Metal Detectors (20)

Luggage X Ray Machines (83)

EOD Equipment (20)

X Ray Scanning Machine (81)

X Ray Security Scanner (92)

Walk Through Scanner (47)

Handheld Body Scanner (18)

Hand Held Metal Detector (28)

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification

I'm Online Chat Now

Dual-Energy 100kV X-ray Security Scanner, Model SPX-5030C – for Small Parcel & Baggage Screening

Large Image : Dual-Energy 100kV X-ray Security Scanner, Model SPX-5030C – for Small Parcel & Baggage Screening

Product Details:

Place of Origin:	China
Brand Name:	SECU PLUS
Certification:	CE ISO
Model Number:	SPX-5030C

Payment & Shipping Terms:

Minimum Order Quantity:	Minimum Order Quantity: 1 set
Price:	Unit Price: Negotiable
Packaging Details:	Packaging: Plywood Pallet
Delivery Time:	Lead Time: 14 working days
Payment Terms:	Payment Terms: L/C, T/T, Western Union
Supply Ability:	Production Capacity: 300 sets per month

Contact Now

Detailed Product Description

Tunnel Dimension:	504 × 320 Mm (W × H)	Steel Penetration Capacity:	14–16 Mm
X-ray Generator Anode Voltage:	100 KV	Operating Platform:	Windows 7
Display:	22” Monitor, 1920 × 1080 Resolution	Warranty Period:	1 Year
Highlight:	100kV X-ray security scanner , dual-energy baggage screening scanner , SPX-5030C parcel scanner

Dual-Energy 100kV X-ray Security Scanner — Model SPX-5030C

The SPX-5030C is a compact, dual-energy 100kV X-ray scanner engineered for small parcel and baggage screening. It combines high-resolution imaging with an independent industrial PC and Windows 7 OS, delivering reliable threat detection for briefcases, hand luggage, postal parcels, and similar small packages.

Key Selling Points

100kV dual-energy X-ray generator for material discrimination
Multifunctional professional operation keyboard
Automatic storage of scanned images
User-friendly image processing interface
Windows 7 operating system
Independent industrial PC for stable performance

Technical Merits

Cutting-edge radiation protection technology
TIP (Threat Image Projection) for operator training and vigilance
32× maximum image zoom for detailed inspection
Integrated compact structure with a refined appearance
High-clarity, easily distinguishable X-ray images

X-Ray Generator Specifications

Anode Voltage	100 kV
Cooling / Duty Cycle	Oil cooling / 100% continuous operation
Dose per Inspection	<0.16 μSv

System & Mechanical Specifications

Tunnel Size	504 × 320 mm (W × H)
Conveyor Speed	0.20 m/s
Conveyor Height	693 mm
Max Load	100 kg
Wire Resolution	38 AWG
Spatial Resolution	Vertical & Horizontal: 1.0 mm diameter
Steel Penetration	14–16 mm steel plate

X-ray Imaging Functions

Image Modes	Pseudo-color / B&W / Negative / High penetration / Super enhancement / Histogram equalization; auto image saving; image backward/forward review
Zoom	Continuously adjustable up to 32×
Image Check	Sequential backward review
Storage	>100,000 images
Single-Scan Dose	<0.125 μSv
Radiation Leakage	<0.4 μSv/h @ 5 cm from frame; fully compliant with international radiation safety standards
Film Safety	ASA/ISO1600 film safe
System Functions	Programmable keys, high-density alarm, TIP, baggage counting, user management, power-on self-test, image search, auto diagnosis, image training
Optional	Video surveillance, LED display, voltage stabilizer, UPS backup power

Installation Parameters

Overall Dimension	1199 × 728 × 1197 mm (L × W × H)
Net Weight	280 kg
Operating Environment	-3°C to +40°C ±2°C, RH 5%–95% (non-condensing)
Storage Environment	-43°C to +60°C ±2°C, RH 5%–95% (non-condensing)
Power	220VAC ±10%, 50Hz ±3Hz
Power Consumption	0.6 kVA
Noise	<55 dB

Applications

Entertainment venues, tourist attractions, office buildings, shopping malls, and factories
Inspection of briefcases, hand luggage, postal parcels, and other small packages

Service Commitment

User operation training available
Free factory training for agent engineers
On-site training on request
Free repair for quality issues within warranty
1-year complimentary spare parts supply + lifetime technical support
Responsive after-sales service: technical team handles customer feedback and calls promptly
24/7 consultation for product operation problems
