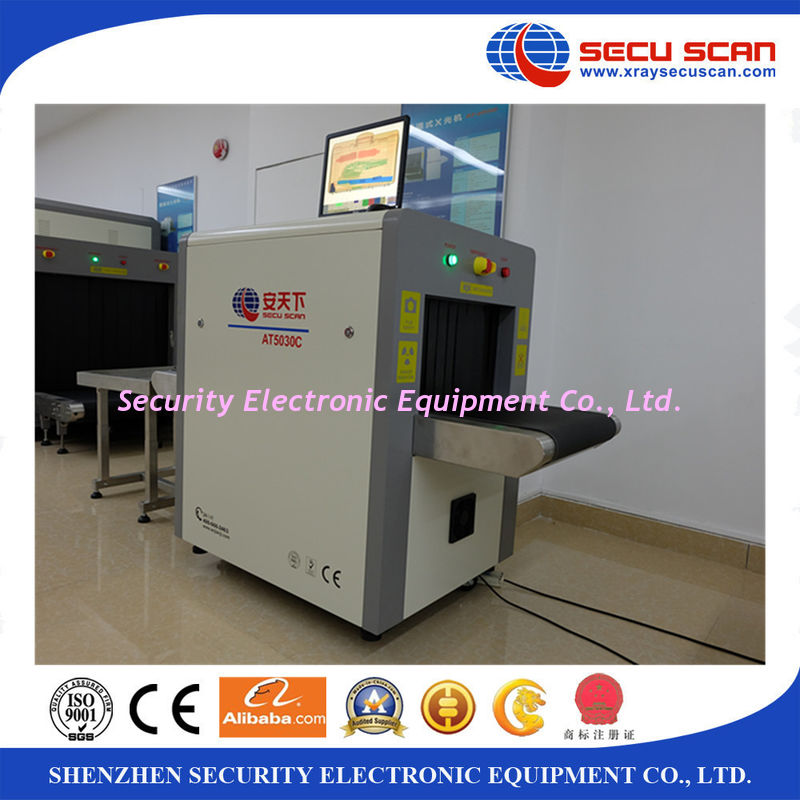

Railway station baggage x ray scanner with high performance

Railway station baggage x ray scanner with high performance

General Specification

● Tunnel Size: 500(W)*300(H)mm
● Conveyor Speed: 0.22m/s
● Conveyor Max Load: 150kg
● Dose per Inspection: <2.9μGy/h
● Resolution: 34AWG to 40AWG
● Spatial resolution: Level: dia1.0mm, Vertical:dia1.3mm
● Penetrate resolution: 24WG to 34AWG
● Penetration: 30mm to 40mm Steel
● Film Safety: Guarantee ISO1600 Film
● X-ray Leakage:<0.1 μGy/h (at a distance of 5cm From external housing)

X-ray Generator

Image System

● X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
● Monitor: High Resolution Color, LCD Accord, 17 inch
● Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
● Image Grey Level: 4096

● Image Max Resolution: 1024 * 1280 pixel
● Image Processing: 24bit for processing real time
● Image storage : Storage 60000 pictures in real time
● Zoom: 2,4,8,16 Times Enlarge, Whole screen continuous observation
● Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
● High-energy/low energy: switch from high energy to low energy
● Assist to detect drug and explosive powder

Installation Data

1.  Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
2.  Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
3.  Operation Power: 220VAC(±10%)50±3Hz
4.  Power Consumption: 1.0 KW (max), 0.3KW(working)
5.  Noise: <55db

Our Service

All products purchased in our company are guaranteed to keep in good repair for one year.

If quality problems happen in guarantee period, our company will maintain for free.

Additionally, our company provides technical support and fittings for life.

After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.

If you are caught in some problems when using our products, welcome to contact us at any time.
