Product Details:
Place of Origin: CHINA
Brand Name: SECUSCAN
Certification: CE, ISO9001
Model Number: AT3300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: wooden box
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 set per month
Detailed Product Description
Material: Stainless Steel Water Proof: IP68
Function: To Check Bomb In Vehicles Scanning Image: B/W, Color
Camera: Color CCD Camera Software Interface: Multi Language Support
Computer System: Window XP Technical Support: Life Time
Warranty: 18 Months Alarm: Display Alarm
High Light:

under vehicle inspection systems

,

under vehicle monintor machine

vehicle chassis security scanning system to connect barrier with alerts for warehouse, gas station

Model : AT3300

         It can quickly and accurately identify threats , contraband objects and stowaway who are hidden at the bottom. Vehicles drive over the embedded scanning units while VSCAN's systems compile high-resolution images of a vehicle's undercarriage to create the vehicle's fingerprint."

    It's easy to see any threatening objects that may be hidden on top of an axel or crossbeam. An overview/driver camera captures the normal view of car/driver and displays this on the high-resolution monitor




Technical Specification :



Embedded Frame :

1) Material : stainless steel
2) Dimension: 1200mm x 350mm

3) Water-proof grade: IP68

4) Load bearing Weight: 50T

5) Image resolution: 12000*6144



Color CCD Line Scan camera :



1) Resolution: 5000* 2048 pixels,

2) Camera view: > 170° & Pixels size: 14μm*14μm



LED Illumination: LED light for clear image in day and night



1) Power Supply: 24VDC, 320W

2) LED light service life: 50,000 hours
3) Operating Temperature Range: -35 ℃ to +60 ℃



Computer :


1 . Brand: Grantech (SYM76941VGGA)

2 . CPU: Intel(R)Celeron(R)CPU  E3400@2.6GHz 2.59 GHz
3 . Memory:2G( optional 4G)
4 . Graphics:512M
5 . Hard Disk:SATA2 Hard Disk 500G
6 . Dual LAN (At least one Intel Gigabit)
7 . USB2.0 (Up to 2 pieces)
8 . Monitor: 22inch LCD, resolution up to 1920*1080
9 . Scene Video Record: 4 channel, Compression algorithm of scene video: H264

 Optional :

* ALPR-Automatic License Plate Recognition software : via IP Camera captures license plate, ALPR software processing and automatically presents license plate on screen

* Driver Face Capture Camera : Provides picture of driver and/or view of vehicle. Image is presented on screen along with under vehicle images.

* Screen Video display/DVR: displays live video feed from overview camera on operator terminal screen.

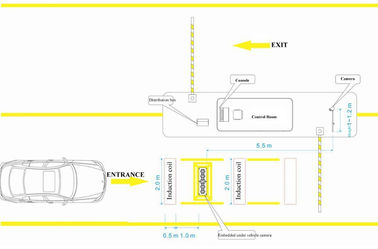

AT3300 fixed UVSS/UVIS installation in Saidu Arabia
