Color camera vehicle security scanners with ALPR software to capture vehicle plate number

Color camera Under Vehicle Surveillance System with automatic alarm for weapons, bombs

Model : AT3300

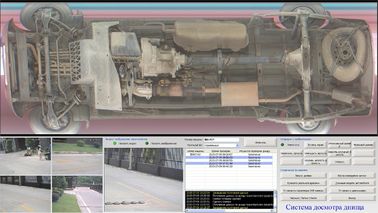

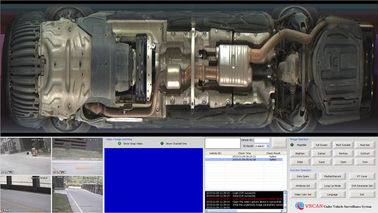

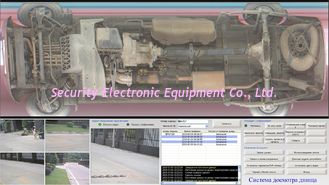

         It can quickly and accurately identify threats , contraband objects and stowaway who are hidden at the bottom. Vehicles drive over the embedded scanning units while VSCAN's systems compile high-resolution images of a vehicle's undercarriage to create the vehicle's fingerprint."

    It's easy to see any threatening objects that may be hidden on top of an axel or crossbeam. An overview/driver camera captures the normal view of car/driver and displays this on the high-resolution monitor

Technical Specification :

Embedded Frame :

1) Material : stainless steel
2) Dimension: 1200mm x 350mm

3) Water-proof grade: IP68

4) Load bearing Weight: 50T

5) Image resolution: 12000*6144

Color CCD Line Scan camera :

1) Resolution: 5000* 2048 pixels,

2) Camera view: > 170° & Pixels size: 14μm*14μm

LED Illumination: LED light for clear image in day and night

1) Power Supply: 24VDC, 320W

2) LED light service life: 50,000 hours
3) Operating Temperature Range: -35 ℃ to +60 ℃

Computer :

1 . Brand: Grantech (SYM76941VGGA)
