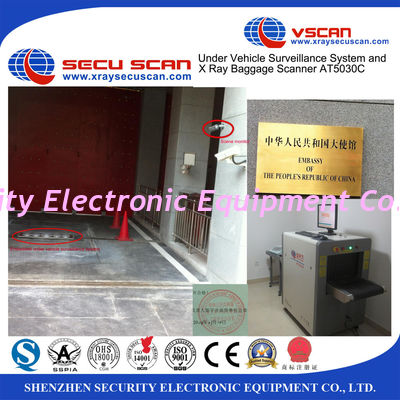

IP68 under vehicle surveillance system, under vehicle scanning system security
Advantage of UVIS under vehicle scanner:
1. No need to park vehicle, can bear speed below 30km/h
2. Whole image display ion monitor
3. Operator can zoom and save image
1. Multi entrance management model, management, and statistics of entering and exiting vehicles
2. Auto digital line scan, high-resolution undercarriage imaging.
3. High automation, easy to be used
4. Applicable to variety of vehicles, wide vision.
5. Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
6 . Undercarriage image can be stored, retrieved, searched or compared with other images.
7. Avariety of image processing methods: enlarge, stretching and cutting.
8. ALPR-Automatic License Plate Recognition and RFID technology. associative storage of various vehicle information and undercarriage images.(Optional)
Main TechnicaIndexes of under vehicle system:
Embedded Screening Part
1. Camera: Sensor: line scans CCD, Resolution:
5000*2048 pixels, Power Supply: 24VDC, 3A
2. Illumination: LED, Power Supply: 24VDC,150W
3. Size: 1200mm x 350mm
4. Operating Temperature Range:-20 degree to +70 degree
1 Input: 2 channels induction coil
2 Output: 1 Channel switch type 12VDC
3 Communication port: RS485, Ethernet(Optional)
4 Operating Temperature: -10 degree to 50 degree
1 . Brand: Grantech (SYM76941VGGA)
2 . CPU: Intel(R)Celeron(R)CPU E3400@2.6GHz 2.59 GHz
3 . Memory:2G( optional 4G)
4 . Graphics:512M
5 . Hard Disk:SATA2 Hard Disk 500G
6 . Dual LAN (At least one Intel Gigabit)
7 . USB2.0 (Up to 2 pieces)
8 . Monitor: 22inch LCD, resolution up to 1920*1080
9 . Scene Video Record: 4 channel, Compression algorithm of scene video: H264
1 VSCAN Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles.
2 It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom.
3 UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.
VSCAN AT3300 UNDER VEHICLE INSPECTION SYSTEM FOR AIRPORT
