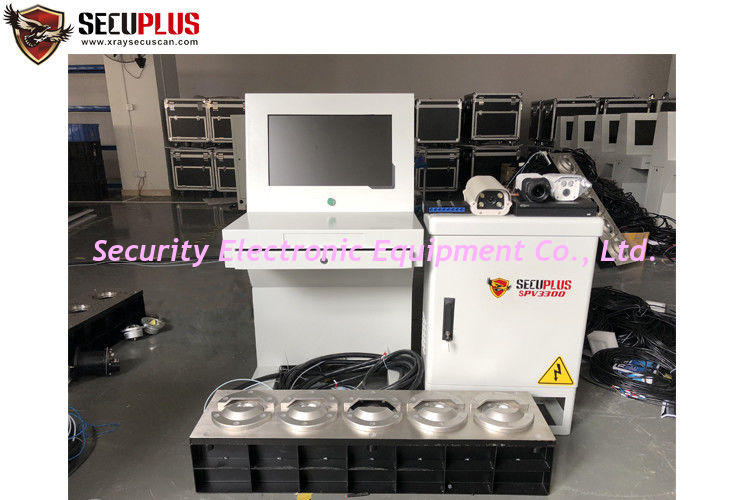

Weatherproof Under Vehicle Surveillance System for Border , Building entrance and Banks Model SPV-3300
SECUPLUS SPV-3300 Under Vehicle Inspection System is the fixed solution for the fully identification of threats or modifications to a vehicle’s undercarriage. It can quickly and accurately identify threats , contraband objects and stowaway who are hidden at the bottom.
Features:
Auto digital line scan, high-resolution undercarriage imaging.
High automation, easy to be used.
Applicable to variety of vehicles, wide vision.
Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
Undercarriage image can be stored, retrieved, searched or compared with other images.
Flexible detection process can be made on site to satisfy the needs of various work conditions.
Image monitoring, video recording for different scenario
Technical Specification:
| Camera | CCD Line scan camera |
| Resolution | 5000* 2048 pixels |
| Pixels size | 14μm*14μm |
| linear array | 28mm |
| ADC Resolution | 12 bit |
| Image | Black/white (color optional) |
| Power Supply | 24VDC |
| Transfer interface/distance | Gigabit Ethernet/100m |
| LED Illumination Power Supply | 24VDC, 150W |
| Embedded scanning part size | 1200mm x 350mm |
| Water-proof grade | IP68 |
| Operating Temperature | -20 ℃ to +70 ℃ |
Computer :
| Brand | Grantech (SYM76941 VGGA) |
| CPU | Intel (R) Celeron (R) CPU E3400, 2.6GHz /2.59GHz |
| Memory | 2G (optional 4G) |
| Graphics | 512M |
| ard Disk | SATA2 Hard Disk 500G |
| USB | 2.0 (Up to 2 pieces) |
| Monitor | 21.5” LCD, resolution up to 1920*1080 |
| Scene Video Record | 4 channels |
| Compression algorithm of scene video | H264 |
| Operational system | Windows XP, Windows 7 (32 bit) |
