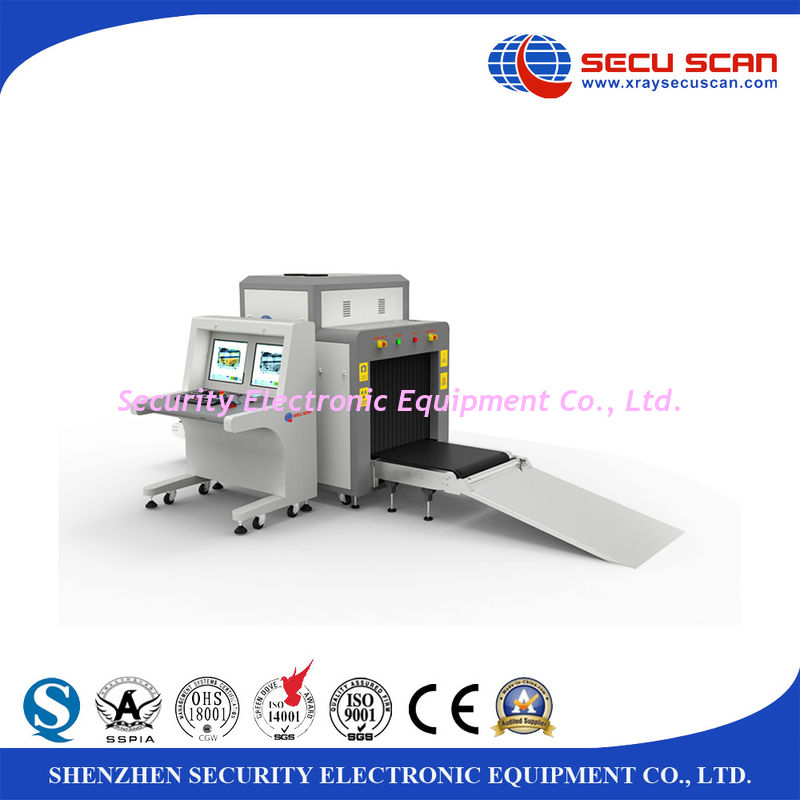

Dual View Airport X Ray Scanning Machine Multi Language Oil Cooling

Dual View Airport X Ray Scanning Machine Multi Language Oil Cooling
Dual View Airport X Ray Scanning Machine Multi Language Oil Cooling

Large Image :  Dual View Airport X Ray Scanning Machine Multi Language Oil Cooling

Product Details:
Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO
Model Number: AT10080D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
X Ray Generator: Two, 160kv Conveyor Max Weight: 200kg
Training: Free Training In The Factory Installation: Very Easy
Operatoin: User Maual Attached With Machine Warranty: One Year Free Spare Parts, Life Time Technic Support
Penetration: 34-36mm Steel Software Interface: Support Multi Language
Highlight:

Airport X Ray Scanning Machine

,

Dual View X Ray Scanning Machine

,

AT10080D airport baggage scanning equipment



Dual view big size x ray machine at airport security with two 160kv x ray generator





Specification





Tunnel Size                                    1000(W)*800(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 200kg
Dose per Inspection <1.5Gy/h
Resolution < 0.0787mm Copper Wire
Spatial Resolution Level Dia1.0mm
Vertical esolution Level: Dia1.0mm
Vertical: Dial1.0mm
Penetrate resolution 34-36mm, dual view
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.5 μ Gy/h (at a distance of 5cm From external housing)





X Ray Generator:



Beam direction Downward, side
Beam angle 80 degree
Anode voltage 160kv
Anode power 0.5mA
Cooling / Duty Cycle Oil Cooling /100%





X Ray Image:



X-ray Sensor L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Image Processing Edge enhancement, image strengthening, image lightening, , reducing darkening, image returning, image retrieval.
Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zoom 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy Switch from high energy to low energy
Adavantage Assist to detect drug and explosive powder







Installation Data:



Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
Operation Power:

220VAC(± 10%)50± 3Hz
Power Consumption: 1.0 KW (max), 0.7KW(working)
Noise:

<58dB.









Advantages:

  • We have 20000 square meter factory, 4 floor, 260 employess and 5 R&D team
  • We have passed ISO9001, 16001, OHSMS18001, Health Inspection
  • We have full security product line which can meet your different needs
  • We never stop researching and will have one or two new product each year
  • We listen to our customer and solve their problems



Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.
