Product Details:
Payment & Shipping Terms:
|
| Operation System: | Linux | Tunnel Size: | 504*320mm (w*h) |
|---|---|---|---|
| Max Load: | 100kgs | Penetration: | 8-10mm Steel Panel |
| X-ray Generator Anode Voltage: | 80kV | Type: | Conveying X-ray Detector |
| Conveyor Speed: | 0.22m/S | Application: | Security Check |
| Customized: | Yes | Alarm Form: | Display Or Alarm |
| High Light: | 80kV X Ray Baggage Scanner,SECUPLUS X Ray Baggage Scanner,SECUPLUS X Ray Scanning Machine |
||

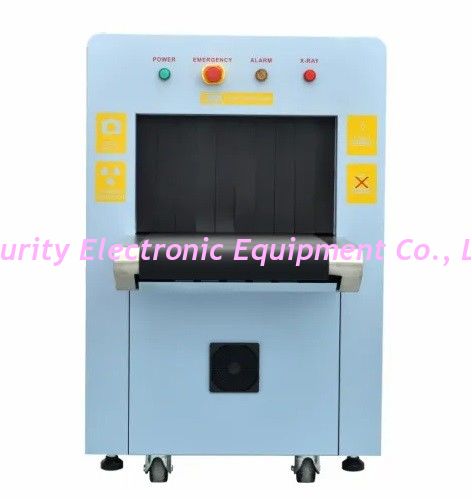

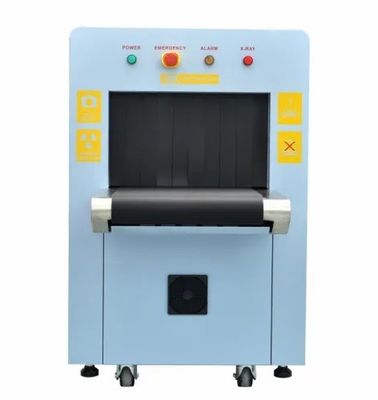

SecuPlus small size 5030A X-ray Baggage Scanner for Security Inspection
Product highlights
* Linux operation system
* ARM CPU
* Digital signal and processor
* Continous hard work for 10000 hours
* Energy saving design
* High penetration
* Good quality images
Technical parameters
| Tunnel size | 504*320mm (w*h) |
| Conveyor speed | 0.20m/s |
| Conveyor height | 668mm |
| Max Load | 100kgs |
| Wire Resolution | 38AWG |
| Spatial resolution | vertical:diameter 1.0mm,horizontal:diameter 1.0mm |
| Penetration | 8-10mm steel panel |
| Monitor | 17inch,resolution 1280*1024 |
| X Ray generator anode voltage | 80kV |
| Cooling/operation cycle | Oil Cooling /100% |
| X ray Dose per inspection | <0.16 μSv |
| Image processing | Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image |
| Zoom | Variable zoom up to X32, support continuous magnification. |
| Image Checking | Continuous check back image |
| Storage capacity | Can store more than 100000 image |
| Dose per inspection | <0.125 μSv |
| Radiation leakage | <0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements. |
| Film safety | In accordance with ASA/ISO1600 film safe standard |
| System function | F programmable key,high density alarm,TIP；date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
| Optional function | Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up |
| Unit Weight | 250kg |
| Gross Weight | 320kg |
| Unit size (mm) | 1660(L)*746(W)*1165(H) |
| Packing size(mm) | 1800(L)*880(W)*1380mm(H) |
| Environment temperature/humidity | - 3℃～+40℃±2℃ / 5%～95%(non-condensing) |
| Storage temperature/humidity | -43℃～+60℃±2℃ / 5%～95%(non-condensing) |
| Power | 220VAC (+/-10%) 50+/-3HZ |
| Consumption | 0.6KvA |
| Noise Level | <55db |
Application field
Technical characteristics
