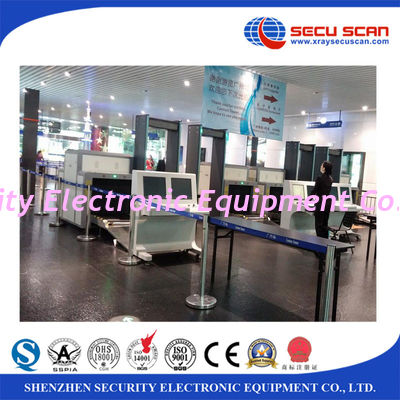

0.22m / S Speed 1m X 1m Baggage X Ray Scanner With 40 AWG Resolution

Tunnel Size:

1000(W)*1000(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

200kgs

Wire Resolution:

40 AWG

Steel Penetration:

34mm

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.1μGy/h (at a distance of 5cm From external housing)

Generate direct:

downward

Generate angle:

80 degree

Anode Voltage:

100-160Kv

Anode power:

0.4 to 1.2mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  16bit Deep

Monitor:

High Resolution Color,  LCD Accord,  duel 19 inch

Image Processing:

B/W, Color Edge enhancement,  image strengthening,  image lightening,

reducing darkening,  image returning,  image retrieval.

Image Grey Level:

65536

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 100,000 pictures in real time

 Zoom:

32 Times Enlarge,  Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

0.8 KWA

Noise:

<58db
