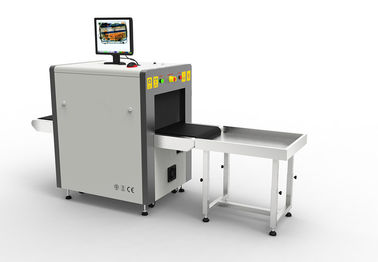

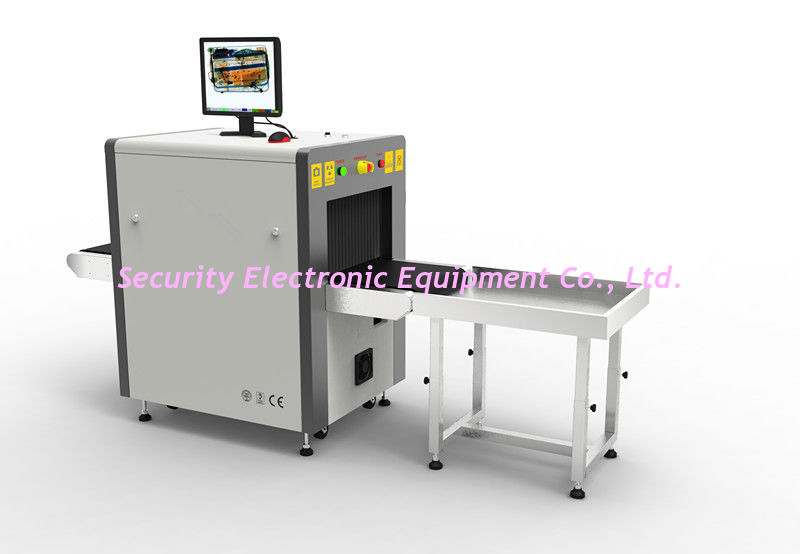

Passengers Baggages Xray Scanner Airport with High Resolution

small.img.alt small.img.alt

Large Image :  Passengers Baggages Xray Scanner Airport with High Resolution

Product Details:
Place of Origin: China
Brand Name: SECU SCAN
Certification: CE ISO TSA
Model Number: AT5636
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 7-15days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100units/month
Detailed Product Description
Software: Multi Functions And Language Images: High Clear Color And B/W
Detection: Explosive ,drugs ,knife ,guns Extention Roller: 50cm Or 100cm Optional
Material: Stainless Steel TIP: Including
High Light:

airport screening machines


airport baggage scanner


Passengers Baggages Xray Scanner Airport with High Resolution

General Specification:

  • Tunnel Size: 560mm×360mm
  • Conveyor Speed: 0.22m/s
  • Conveyor height : 670mm
  • Conveyor Max Load:170kg
  • X ray Dose per inspection <0.5uGy
  • Wire Resolution:38AWG Guarantee 40 AWG tapical
  • Spatial resolution Level: dia1.0mm,Vertical: dia1.0mm
  • Penetration: 34 mm steel guarantee
  • Penetration Resolution :32AWG ,the wire visible below 22mm thick aluminum
  • Film Safety :Guarantee ASA/ISO1600 Film
  • X-ray Leakage: <0.1 μGVy/h (at a distance of 5cm From external housing)

Image System:

  • Technical Principle: Dual-energy X-ray Imaging; Double L Shaped Array,448 detectors
  • Image Display: High resolution of 1280×1024;
  • Image Enhancement: 1- 64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
  • Image Recall: All preceding images recallable
  • Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number signature ,Atomic Z-Number Measurement.
  • High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
  • Threat Image Projection: Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
  • Image Archive: Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
  • Miscellaneous Functions : Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
  • Network Applications: Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc.
  • Images process:24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536 ,switchable to B/W.

X-ray Generator

  • Generate direct: from bottom to top
  • Anode Voltage: 140kv
  • Cooling / Duty Cycle: Oil Cooling /100%

Computer Character

  • CASE: chassis ATX/Matx chassis
  • Power: 80+bronze ps/2 sps 300w ATX(DELTA)ROHS
  • Main board: H61,LAG 1155 Micro ATX,2VGA/LVDS/(DVI optional)/10*com/1*LPT/2GeLAN/PCI/
  • PCIe/AMP/10*USB
  • CPU: Celeron 2.5G 3m 1155p G540(G)
  • Storage: 2G DDR3-1333 240PIN 256X8 HYX(g)TS 5KNN 28100-3Y
  • Hard Disk: SEAGATE 500G 3.5” IDE 5KRPM(G)
  • Other Characters
  • Extension Rollers: Optional (50cm length roller)
  • UPS camera system and photographic system Optional
  • Support card reader operator access (optional)
  • CD DVR/RW unit: Optional
  • Computer system: XP system
  • Monitor optional: 17 inch DELL brand or 19inch monitor

Operating Environment

  • Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
  • Storage Temperature/Humidity: -40℃~+60℃ / 5%~95% (non-condensing)
  • Operation Power: 220VAC(±10%)50±3Hz (100VAC,110VAC,120VAC,200VAC)
  • Power Consumption: 1.4 KW (max), 1.0KW(working)
  • Noise: <58db
  • Dimension Size
  • Dimensions (L×W×H) :1662mm x 750mm x1160mm
  • Weight: 355Kg
