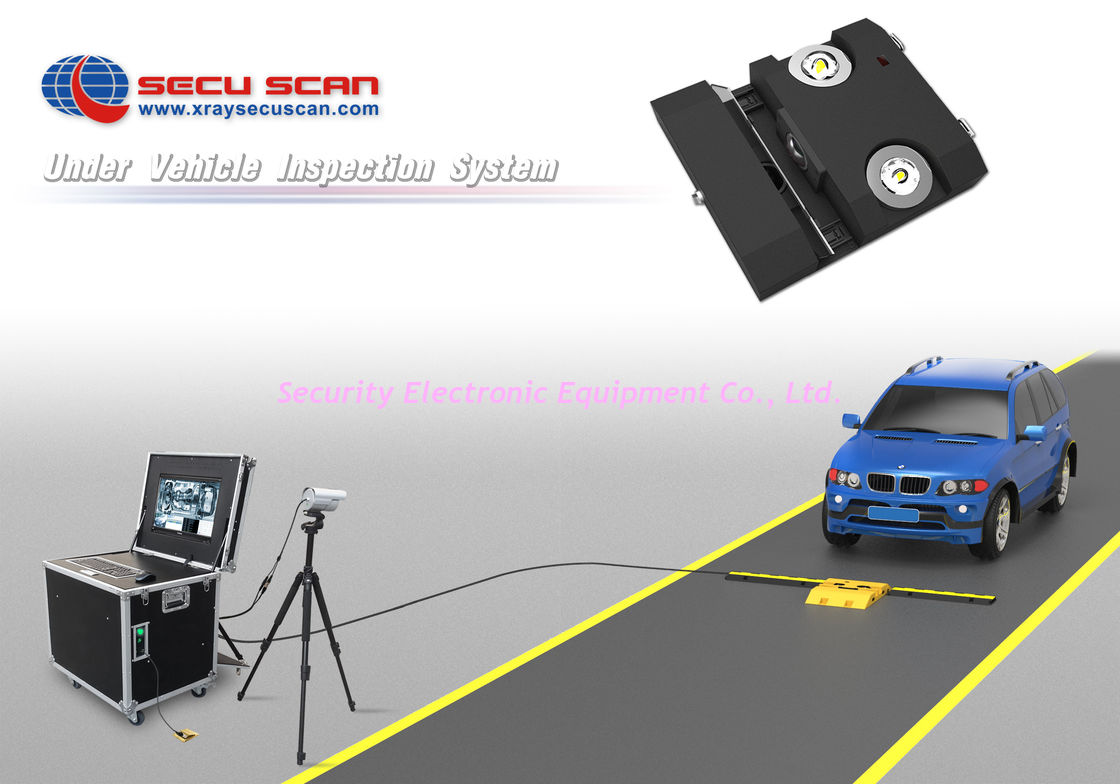

Inspection Security Under Vehicle Surveillance System with Light

Inspection Security Under Vehicle Surveillance System with Light
Inspection Security Under Vehicle Surveillance System with Light

Large Image :  Inspection Security Under Vehicle Surveillance System with Light

Product Details:
Place of Origin: China
Brand Name: VSCAN
Certification: CE,ISO
Model Number: AT3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 4-7 work day
Supply Ability: 300 sets per month
Detailed Product Description
Operating Temperature :: -10 Degree To 55 Degree Scanning Device Weight:: 24KG
Resolution:: 5000*2048 Pixels Power Supply:: 24VDC, 3A
Illumination:: LED Corporation Way: OEM,ODM,and Agent
Price: Negotiable
High Light:

under vehicle monintor machine

,

car surveillance system



Inspection Security Under Vehicle Surveillance System with Light







To find the threats/contraband beneath vehicle Portable Model: AT3000



Quick Details



Technical parameters



  1 Vertical resolution of the image: 5000*2048 pixels
  2 Check the width viewing angle: < 4 meters
  3 Speed of vehicle: < 30km/h with ALPR(Automatic Licence Plate Recognition)
                                 < 70km/h without ALPR(Automatic Licence Plate Recognition)
  4 Effective Field of View(FOV):less than 170°
  5  Weight capacity: <20T
  6  Auxiliary light: 100W
  7 Water-proof grade: Ip68
  8 Scanning device weight: 24KG
  9 Scanning device volume: 450mm×400mm×88mm
 10 Communication interface: RS232/RS422
 11 Operating Temperature: -10℃ to 55℃
 12 Storage temperature: -40℃ to +75℃
 13 Operating voltage: 110-240V AC, 50-60HZ





 System Host



 1 Brand: Grantech (UFO6377H-SP1-953)
 2 CPU: Intel® Core(TM) 2 Duo CPU
    P8600 2.4GHz or higher
 3 Memory:2G( optional 4G)
 4 Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine
 5 Hard Disk:SATA2 Hard Disk 500G
 6 Dual LAN (At least one Intel Gigabit)
 7 USB2.0 (Up to 4 pieces)
 8 Monitor: 22inch LCD, resolution up to 1920*1080





 Features



  1 Automatic digital line scan camera, with high-resolution and clarity of the image.
  2 The complete image of under vehicle scanning, without any omissions,
     and the image is clear, complete, no distortion, can be clearly observed that
     the object is not less than 2mm in diameter.
  3 Preparation of inspection processes to meet a variety of on-site needs.
  4 Multiple scene image monitoring, recording function.
  5 Multi-language user interface design.
  6 Strong scalability to easily achieve a variety of system linkage control.
  7 (Optional)ALPR(Automatic Licence Plate Recognition)
     (E.g.: anti-collision system, barrier, etc.).
  8 (Optional) Multiple devices networked control functions.





Functions





1 VSCAN Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom.

 2 UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.
