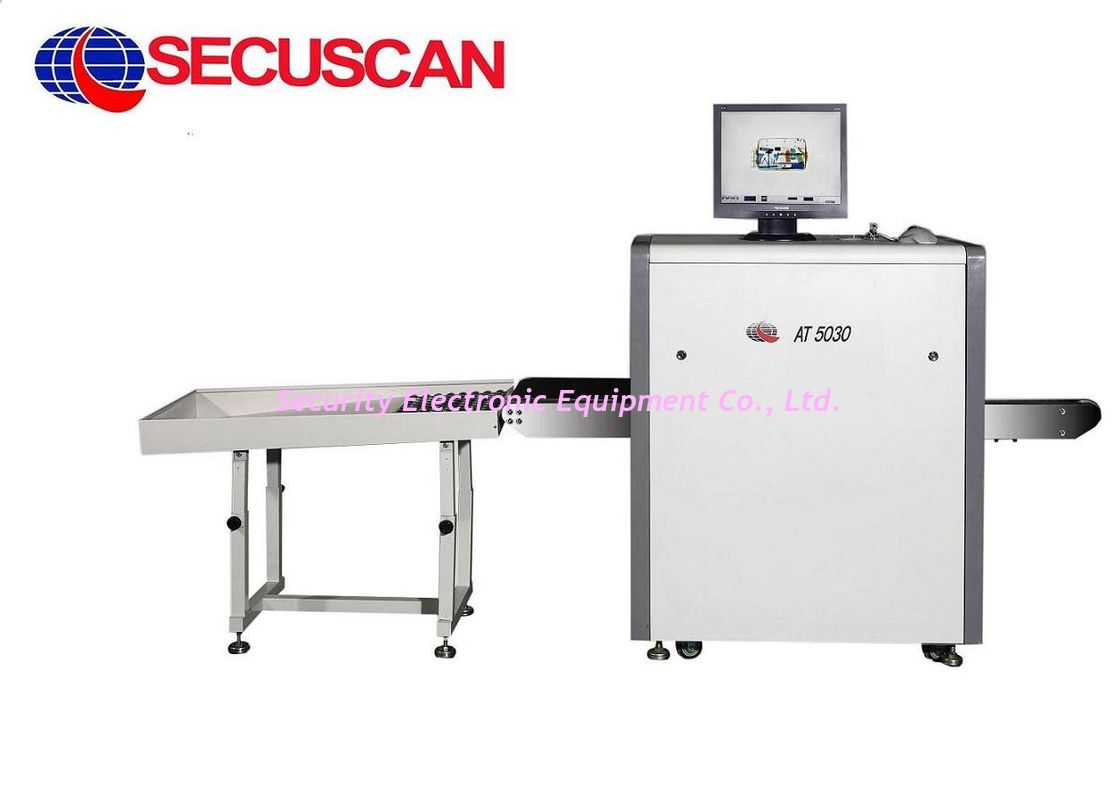

Diagonal X Ray Baggage Inspection System for Security Access Control

Diagonal X Ray Baggage Inspection System for Security Access Control
Diagonal X Ray Baggage Inspection System for Security Access Control

Large Image :  Diagonal X Ray Baggage Inspection System for Security Access Control

Product Details:
Place of Origin: China
Brand Name: SECU SCAN
Certification: CE,ISO
Model Number: AT5030C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 4-7 work days
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Conveyor Speed:: 0.22m/s Wire Resolution:: 32AWG To 40AWG
Corporation Way: OEM,ODM And Agent Radiation: Safe
Conveyor Max Load: 150kg Image Storage: 60000 Pictures
Cooling / Duty Cycle:: Oil Cooling /100%
Highlight:

security screening equipment

,

airport baggage scanner

Diagonal X Ray Baggage Inspection System for Security Access Control







X Ray Baggage Inspection Scanner Model AT5030C



Quick Details



  General Specification





  Tunnel Size:   500(W)*300(H)mm
  Conveyor Speed:    0.22m/s
  Conveyor Max Load:    150kg
  Wire Resolution:    32AWG to 40AWG


   Spatial resolution:


    horizontal:1.3 or 1.0mm,
   vertical: 1.3 or 1.0mm
  Penetration:    30 to 40mm Steel


 Film Safety:

    Guarantee ISO1600 Film
  X-ray Leakage:   <1 μSv/h (at a distance of 5cm
   from external housing)
  Pass rate:   720 bags per hour







Installation Data



 Operation temperature/Humidity:

   0℃-45℃/20%-95%(non-condensing)
  Storage Temperature/Humidity:   -20℃-60℃/20%-95%(non-condensing)
  Operation Power:   220VAC(±10%)50±3Hz
  Power Consumption:    1.0 KW (max), 0.3KW(working)
  Noise:   <65db





X-ray Generator



  Beam direction: Diagonal    Diagonal

  Generate angle:

   80 degree
  Anode Voltage:   140Kv or (100Kv to 160Kv adjustable)
  Anode power:    0.4 to 0.5mA
   Cooling / Duty Cycle:    Oil Cooling /100%





Image System



  X-ray Sensor:    L-Shaped Photodiode Array  (multi-energetic) , 12bit Deep
  Monitor:    High Resolution Color, LCD Accord, 17 inch
   (19 inch optional)
  Image Processing:    Edge enhancement, image strengthening, image
   lightening,, reducing darkening, image returning,image          retrieval.
  Image Grey Level:   4096
  Image Processing:   24bit for processing real time
  Image storage:   Storage 60000 pictures in real time
  Zoom:   max 16 Times Enlarge, Whole screen continuous observation





Assist of detecting organic and inorganic items such as
weapons, explosives and narcotics using different colour show



Diagonal X Ray Baggage Inspection System for Security Access Control 0Diagonal X Ray Baggage Inspection System for Security Access Control 1Diagonal X Ray Baggage Inspection System for Security Access Control 2
