UVSS Automatic Under Vehicle Surveillance System with high technology

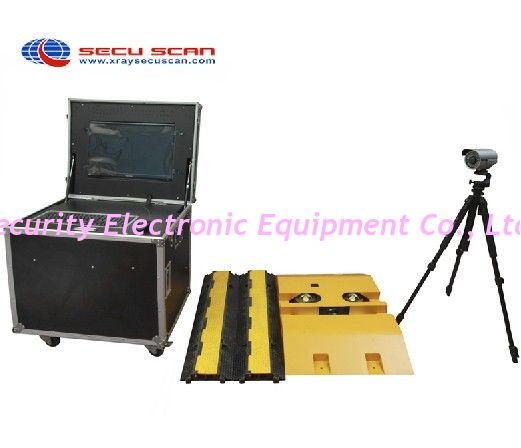

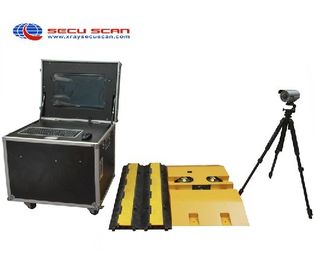

To find the threats/contraband beneath vehicle Portable Model: AT3000
1 Vertical resolution of the image: 5000*2048 pixels
2 Check the width viewing angle: < 4 meters
3 Speed of vehicle: < 30km/h with ALPR(Automatic Licence Plate Recognition)
< 70km/h without ALPR(Automatic Licence Plate Recognition)
4 Effective Field of View(FOV):less than 170°
5 Weight capacity: <20T
6 Auxiliary light: 100W
7 Water-proof grade: Ip68
8 Scanning device weight: 24KG
9 Scanning device volume: 450mm×400mm×88mm
10 Communication interface: RS232/RS422
11 Operating Temperature: -10℃ to 55℃
12 Storage temperature: -40℃ to +75℃
13 Operating voltage: 110-240V AC, 50-60HZ
1 Brand: Grantech (UFO6377H-SP1-953)
2 CPU: Intel® Core(TM) 2 Duo CPU
P8600 2.4GHz or higher
3 Memory:2G( optional 4G)
4 Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine
5 Hard Disk:SATA2 Hard Disk 500G
6 Dual LAN (At least one Intel Gigabit)
7 USB2.0 (Up to 4 pieces)
8 Monitor: 22inch LCD, resolution up to 1920*1080
1 Automatic digital line scan camera, with high-resolution and clarity of the image.

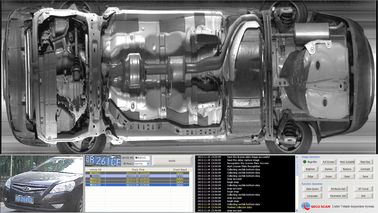

2 The complete image of under vehicle scanning, without any omissions,
and the image is clear, complete, no distortion, can be clearly observed that
the object is not less than 2mm in diameter.
3 Preparation of inspection processes to meet a variety of on-site needs.
4 Multiple scene image monitoring, recording function.
5 Multi-language user interface design.
6 Strong scalability to easily achieve a variety of system linkage control.
7 (Optional)ALPR(Automatic Licence Plate Recognition)
(E.g.: anti-collision system, barrier, etc.).
8 (Optional) Multiple devices networked control functions.
1 VSCAN Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom.
2 UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.
