SECUPLUS Under Vehicle Surveillance System for Hotel Security Check
●Multi entrance management model, management, and statistics of entering and exiting vehicles

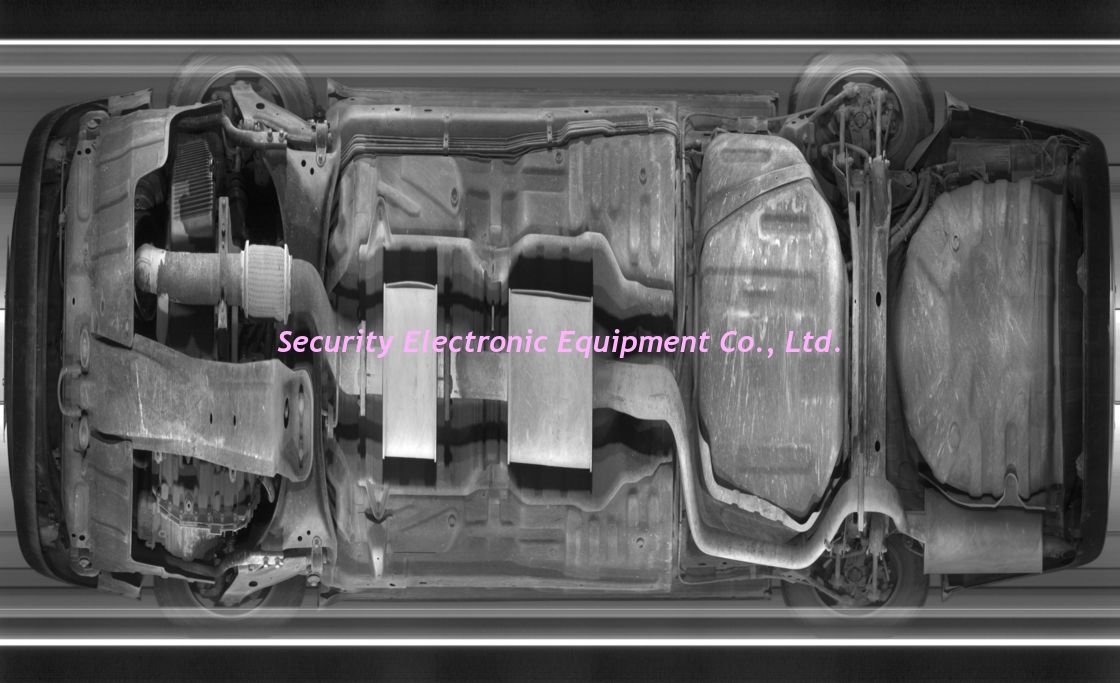

●Auto digital line scan, high-resolution undercarriage imaging.
●High automation, easy to be used
●Applicable to variety of vehicles, wide vision.
●Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
●Undercarriage image can be stored, retrieved, searched or compared with other images.
●Avariety of image processing methods: enlarge, stretching and cutting.
●(Optional)ALPR-Automatic License Plate Recognition and RFID technology. associative storage of various vehicle information and undercarriage images.
Embedded Screening Part
●Camera: Sensor: line scans CCD, Resolution: 5000*2048 pixels, Power Supply: 24VDC, 3A
●Illumination: LED, Power Supply: 24VDC,150W
●Size: 1200mm x 350mm
●Operating Temperature Range: -20 degree to +70 degree
●Input: 2 channels induction coil
●Output: 1 Channel switch type 12VDC
●Communication port: RS485, Ethernet(Optional)
●Operating Temperature: -10℃ to 55℃
●Brand: Grantech (SYM76941VGGA)
E3400@2.6GHz 2.59 GHz
●Memory:2G( optional 4G)
●Hard Disk:SATA2 Hard Disk 500G
●Dual LAN (At least one Intel Gigabit)
●USB2.0 (Up to 2 pieces)
●Monitor: 22inch LCD, resolution up to 1920*1080
●Scene Video Record: 4 channel, Compression algorithm of scene video: H264
