| Operation System: | Windows 7 System | Tunnel Size: | 1010mm*1005mm (W*H) |
|---|---|---|---|
| Maximum Load: | 200kgs (evenly Distributed) | Display: | 21.5inch Color LCD Monitor |
| X Ray Generator Anode Voltage: | 160Kv (working At 150Kv) | Xray Generator: | 2 Sets |
| Highlight: | Baggage checking,xray scanner airport |
||

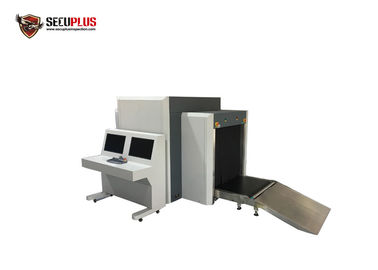

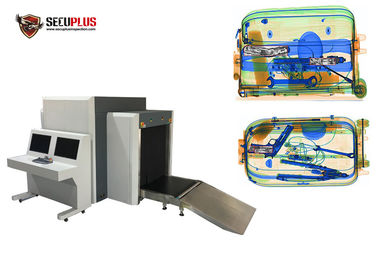

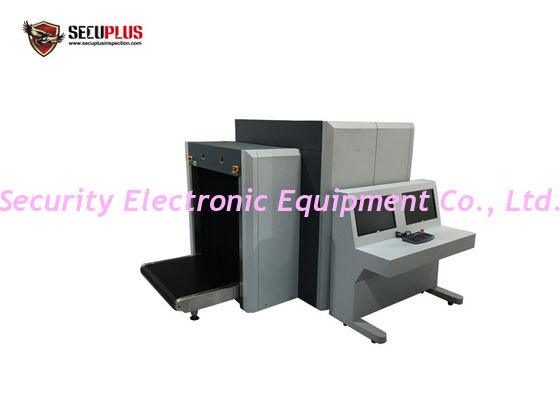

Dual-view X-ray Baggage Scanner SPX100100DV Luggage X ray Machines for airport
| Tunnel size | 1010mm*1005mm (W*H) |
| Conveyor speed | 0.20m/s |
| Conveyor height | 300mm |
| Maximum load | 200kgs (evenly distributed) |
| Wire resolution | 40AWG (dia 0.0787mm wire) |
| Spatial resolution | Level: dia1.0mm copper wire, Vertical: dia1.0mm copper wire |
| Penetration(steel) | 38mm guarantee, 40mm typical |
| Penetration resolution | 32AWG(0.202mm) |
| Display | 21.5inch color LCD monitor, high resolution: 1280*1024 |
| X Ray generator anode voltage | 160Kv (working at 150Kv) |
| Cooling cycle | Oil Cooling /100% |
| X ray dose per inspection |
<1.0 μSv |
| X ray generator | 2 sets |
| Beam direction | Top/side |
| Image process | Black and white / color, anti-color, High energy penetration, super enhancement, histogram equalization, forced scanning, magnifying glass, image pull back / front pull, image storage |
| Material classification | Organic: orange; Inorganic: blue; Mixed and light metal: green; |
| Section and magnification | Any area selection, 64 times magnification, support continuous amplification |
| Image pull back | Unlimited |
| Storage capacity | Can store at least 150000 pcs image |
| X ray leakage | <0.5 μSv /h(at a distance of 5cm From external housing), meet all international and domestic health and safety standards |
| Film safety | Guarantee ASA/ISO1600 Film |
| Software system |
F1, F2, F3 programmable key, high density alarm, TIP; Date/time display, Baggage Count, User management, System work timing, Radiation timing, Self-inspection while power on, save and search image, Automatically maintenance and diagnosis system, Image recognition training. |
| Optional function |
Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up |
| Physical size | 3595.5*1685*1795mm (L*W*H) |
| Weight | 1480kgs |
| Operation temperature/Humidity | 0℃+/-3℃～+60℃+/-2℃ 5%～95%(non-condensing) |
| Storage Temperature/Humidity | -20℃+/-3℃～+60℃+/-2℃ 5%～95%(non-condensing) |
| Operation power | 220VAC (+/-10%) 50+/-3HZ |
| Power consumption | 2.0KvA |
| Noise | Less than 55db |
