Diagonal Beam 32AWG 1KW X Ray Baggage Scanner For Cargo

Diagonal Beam 32AWG 1KW X Ray Baggage Scanner For Cargo
Diagonal Beam 32AWG 1KW X Ray Baggage Scanner For Cargo Diagonal Beam 32AWG 1KW X Ray Baggage Scanner For Cargo

Large Image :  Diagonal Beam 32AWG 1KW X Ray Baggage Scanner For Cargo

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE
Model Number: SPX-8065
Port: Shenzhen
OEM: accepted
In stock: Yes
Business Type: Manufacturer
Lead time: within 5 woking days after receving your payment
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: Within 5 working days after receving your payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 units per month
Detailed Product Description
Tunnel Size: 800mm*650mm Penetration: 28-30mm
Anode Voltage: 140KV(160KV Optional) Bi-directional Scan: Yes
Conveyor Max Load: 200Kg Detect PCB Board: UK Brand
Language: English, Russian, Turkish, French, Etc Warranty: One Year
High Light:

1KW X Ray Baggage Scanner

,

32AWG X Ray Baggage Scanner

,

Diagonal Beam Baggage Inspection Scanner

Large Size Airport X Ray Baggage Scanner For Cargo , Luggage Inspection

Model: SPX-8065



Features:



1. Dual Energy, high performance

2. Intelligent software, clear image

3. Energy save design

3. TIP function to assist to find the explosive, drug

4. Continuous working for 10000h



General Specification



Tunnel Size:

800(W)*650(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

200kgs

Wire Resolution:

32AWG to 38 AWG

Spatial resolution:

horizontal:1.3 or 1.0mm,
vertical: 1.3 or 1.0mm

Penetration:

27 to 32 mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<1μGy/h (at a distance of 5cm From external housing)

Pass rate:  720 bags per hour

Beam direction:

Diagonal

Generate angle:

80 degree

Anode Voltage:

140Kv

Anode power:

0.4 to 0.5mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  12bit Deep

Monitor:

High Resolution Color, LCD Accord, 19 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening,

reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage100000 pictures in real time

 Zoom:

64 Times Enlarge, Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

1.8 KW (max),  0.3KW(working)

Noise:

<58db



Image System :



Technical Principle: Dual-energy X-ray Imaging; L Shaped Array,
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17inch
Image Display: High resolution of 1024 * 1280 pixel;

Image Grey Level: 65536
Image Enhancement: 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall: All preceding images recallable, retrieval.
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number
signature
High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection: Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive: Up to 100,00 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions : Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications: Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc.
Images process: 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536



Operating Environment:



Operation temperature/Humidity: 5℃~+40℃/10%-90%(non-condensing)
Storage Temperature/Humidity: -40℃to 60℃/ 5%-95%(non-condensing)
Operation Power: 220VAC(+10%~-15%50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.3KW (max), 1KW(working)
Noise: <58db
Dimensions (L×W×H) :3638.5mm x1295mm x1916.5 mm
Device Weight: 900Kg
G. Weight: 1370Kg
Packing Volume: 10.63CBM



Computer Character:



CASE: IPC7132
Power: 250W/ATX
Main board: AIMB 501G2
CPU: G1610 2.6G
RAM: 2GB 1600MHz DDR3
Hard Disk: SEAGATE 500G 3.5”



X-ray Generator:



Anode Voltage: 140kv
Anode power: 0.2-1.2mA
Generate angle: 80 degree
Brand: Own made
Generate direct: from top to bottom
Cooling / Duty Cycle: Oil Cooling /100%

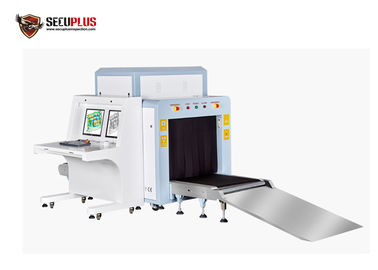

Diagonal Beam 32AWG 1KW X Ray Baggage Scanner For Cargo 0

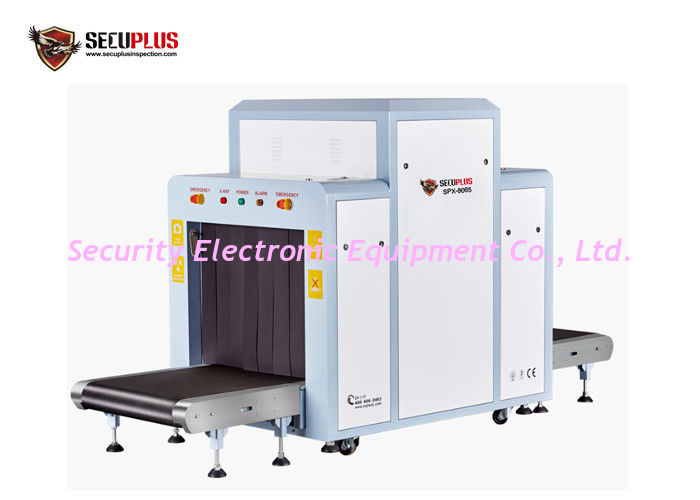

Diagonal Beam 32AWG 1KW X Ray Baggage Scanner For Cargo 1
