38AWG 0.3KW 0.22m/s Baggage And Parcel Inspection Windows 7

38AWG 0.3KW 0.22m/s Baggage And Parcel Inspection Windows 7
38AWG 0.3KW 0.22m/s Baggage And Parcel Inspection Windows 7 38AWG 0.3KW 0.22m/s Baggage And Parcel Inspection Windows 7 38AWG 0.3KW 0.22m/s Baggage And Parcel Inspection Windows 7 38AWG 0.3KW 0.22m/s Baggage And Parcel Inspection Windows 7

Large Image :  38AWG 0.3KW 0.22m/s Baggage And Parcel Inspection Windows 7

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE, ISO
Model Number: SPX-6040
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets/month
Detailed Product Description
Tunnel Size: 600mm(W)*400mm(H) Penetration: 34mm Guarantee, 38mm Typical
Language: English, Russian, French, United Arabian,etc Warranty: One Year
Conveyor Height: 680mm Conveyor Speed: 0.22m/s
Conveyor Load: 170kgs
High Light:

0.22m/s Baggage And Parcel Inspection

,

0.3KW Baggage And Parcel Inspection

,

38AWG Airport X Ray Scanner

Airport X Ray Scanner Baggage And Parcel Inspection With Windows 7 System

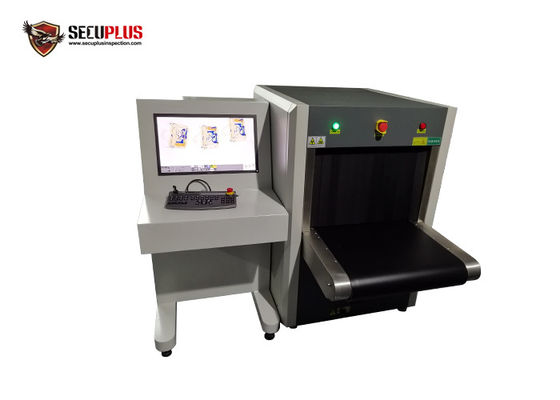

Model: SPX-6040

SPX-6040 Multi-energy X-ray security baggage scanner system is ideal for use in mailrooms, railway stations, mass transit, highway system, conference centers and many other security sensitive areas, where inspection of baggage, mail, parcels, handbags, briefcases, packages is required. SPX-6040 Multi-energy x-ray screening system also enjoys great market share worldwide, which as a baggage scanner, is favored by most of our customers.




Technical characteristics


  • Scanned imaged can zoom up to 64 times;
  • Partly zoom up to 3 times;
  • Dural energy penetration system;
  • TIP program;
  • Clear and distinct image;
  • 13 kinds of image processing functions and 6 kinds of pseudo color



High Light

  • Reliable performance.
  • Friendly operation System;
  • Accurate Z7,Z8,Z9 mark for explosive and narcotics;
  • Windows 7 operation system;
  • Powerful image dealing ability;
  • Automatic save scanned image;



Installation Data:


Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.5KW (max), 0.3KW(working)
Noise: <58db




Physical Specifications:


Dimensions: Length: 2,190 mm Width: 878mm Height: 1,280mm
Tunnel Size: 600mm(W) x 400mm(H)
Conveyor Speed: 0.22m/s
Approx Weight: 700KG
System Power: 220 VAC ±10% /50Hz
Steel Penetration: 34mm guaranteed; 38mm typical
Wire Resolution: 38AWG guaranteed; 40 AWG typical

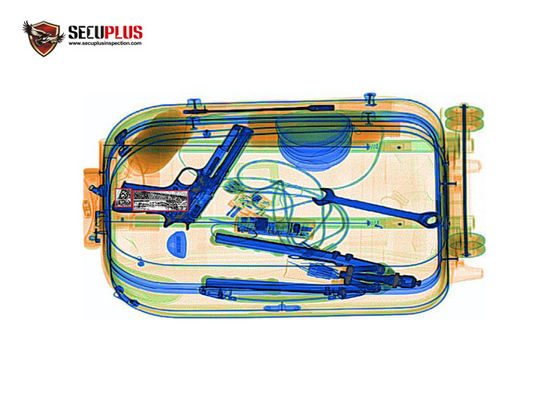

Image System:


Monitor:

High Resolution Color,  LCD Accord,  21.5 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening,
reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 60000 pictures in real time

Zones & Zoom:

1-9 Image regions,  2, 4, 8, 16 Times Enlarge,
Whole screen continuous observation





Application field


  • Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc;
  • suitable for security inspection of briefcase, hand luggage, postal parcels and other small package.


Our service:


  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.
