Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPV-918
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood pallet
Delivery Time: wthin 5 working days after receving your payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per month
Detailed Product Description
Camera: Infrared Miniature Wide-angle HD Camera Start-up Time: ≤1.0s
Continuous Working Time: No Less Than 12 Hours Total Weight: 3.4Kg
Maximum Opening Angle: 170 Degrees Battery Capacity: 5200mAh
Display Resolution: 800*480(RGB) Display: 7 Inch
High Light:

6800mW Under Vehicle Inspection System

,

5200mAh Under Vehicle Inspection System

,

1.0s Video Camera Inspection System

Portable 7 Inch Monitor Under Vehicle Video Camera Inspection System

Model: SPV-918



Details:


Micro wide-angle high definition camera, with infrared night vision ability, wider vision, clearer

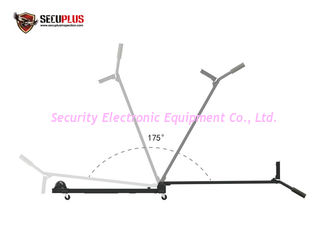

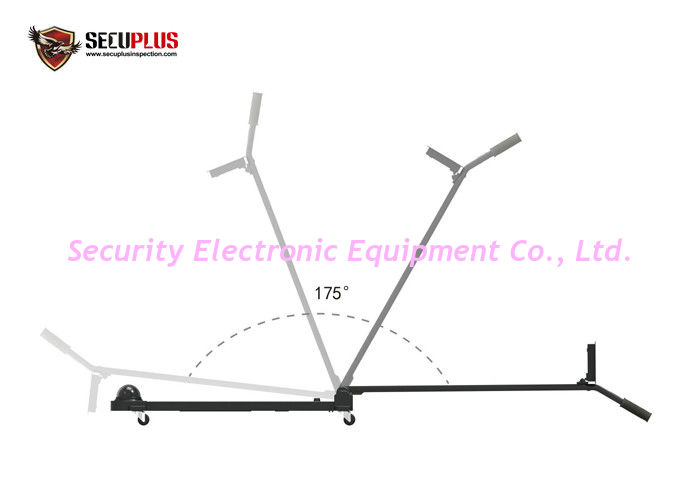

Excellent design concepts based on this system, using two folding structure, the maximum opening angle of 180 degrees, can be pushed into the 1800mm deep caves and can visit, electric control camera angle, the body is made of high strength Aluminum Alloy stamping molding, high temperature paint, beautiful light. The operation is extremely labor-saving


The package is made of ergonomically designed bags. It is light and easy to carry. It can be used both by hand and shoulder





Features

  • The use of high-capacity lithium battery power supply, with long use time, no charge memory, and small
  • size and light. The company can be customized according to customer demand for larger capacity, dualbattery version of the car detector
  • With a 7 inch high resolution LCD display, the power consumption is less than 7W, and the system
  • working time is effectively prolonged without affecting the observation effect.
  • Micro wide-angle high definition camera, with infrared night vision capability, wider vision and clearer.
  • Excellent design concepts based on this system, using two folding structure, the maximum opening angle of
  • 180 degrees, can be pushed into the 1800mm deep caves and can visit, electric control camera angle, the
  • body is made of high strength Aluminum Alloy stamping molding, high temperature paint, beautiful light.
  • The operation is extremely labor-saving.
  • Fitted with ergonomic luggage design, light and easy to carry, both portable and shoulder back.




Specifications:



Function The camera can rotate left, right, rotate and stop automatically Angle The maximum horizontal angle is 355 degrees, The minimum horizontal angle is 22.5 degrees
Focal distance 3.6mm Focal length Wide-angle
Definition 600 line and 1/3SONYCCD infrared image sensor, high definition with infrared night vision function Power supply SCM dedicated power charging and discharging technology to ensure the reliability of power supply products
Working environment temperature -20℃ to +60℃ Working current 400mA
Monitor 7 inch Color Display resolution 800*480(RGB)
Power 6800mW Start-up time ≤1.0s
Total Weight 3.4Kg Spreading length 1780mm
Folding length 1020mm Volume 1020*180*280mm
Packing 1050*210*310mm Battery capacity 5200Ah
Working voltage 9-12.6V Continuous working time no less than 12 hours





Application place:

  • This product is suitable for inspection of automobile, machinery, warehouse, schools, factories or other equipment to direct viewing area of the ideal examination mirror.

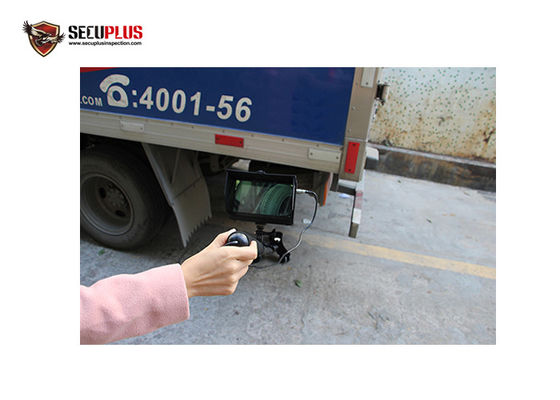

  • Under Vehicle Search Camera can be used for airport security, parking inspection, military area inspection, personal private car inspection.
  • We have provided inspection glasses for many regional sports meetings, important meetings, local police stations, high-level hotels and large factories.


Service



  • All products purchased in our company are guaranteed to keep in good repair for one year.
  • If quality problems happen in guarantee period, our company will maintain for free.
  • Additionally, our company provides technical support and fittings for life.
  • After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  • If you are caught in some problems when using our products, welcome to contact us at any time.

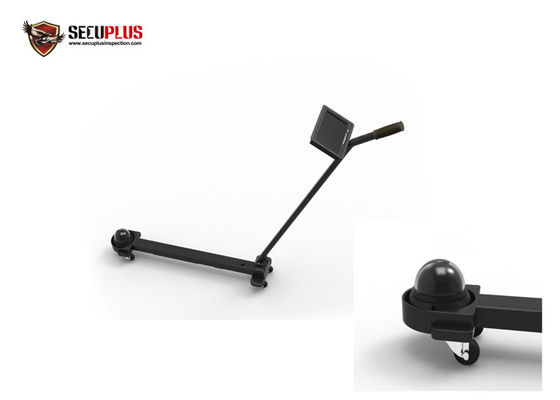

Detail Images



7" 1.0s 5200mAh 6800mW Under Vehicle Inspection System 0



7" 1.0s 5200mAh 6800mW Under Vehicle Inspection System 1
