18 Zones IR Thermal Camera 10W 50cm Metal Detector Gate

I'm Online Chat Now

18 Zones IR Thermal Camera 10W 50cm Metal Detector Gate

China 18 Zones IR Thermal Camera 10W 50cm Metal Detector Gate supplier

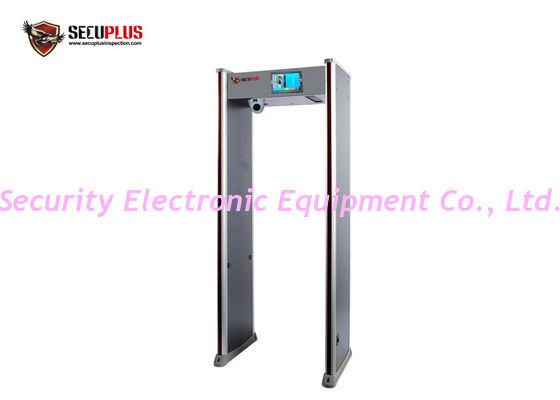

Large Image :  18 Zones IR Thermal Camera 10W 50cm Metal Detector Gate

Product Details:

Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPW-ⅢDT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: within 3 working days after receive your payment
Payment Terms: L/C, L/C, T/T, Western Union
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Temperature Deviation: 0.2-0.5 Temperature Sensor: Silicon Oxide Un-cooled Infrared Focal Plane Detector
Alarm: Sound And LED Lights Alarm Checking Distance: 0.1-50cm
Warranty: 12 Moths Zones: 6/18 Optional
Outer Frame: 2220mm (h) X 820mm (w) X 522mm (d)
High Light:

10W Metal Detector Gate


50cm Metal Detector Gate


IR Thermal Camera Security Gate

High Quality Quick Temperature Check Metal Detector Gate With IR Thermal Camera



Alarm for Fever Visitors:


  • Accurately test body temperature;
  • Non-contact fast detect temperature;
  • Show temperature and alarm for fever;
  • Actively track moving people’s face;
  • Temperature deviation: 0.3 ℃;
  • Distance: 0.8-3.0 Meter
  • Working temperature: -10 to 50 ℃


Alarm for Metal threats:

  • Multiple target locations from head to toe;
  • 6/18 zones overall inspection;
  • Extremely high sensitivity to detect tiny threats;
  • Shock proof to avoid false alarm;
  • Automatically adapt to Environmental magnetic field;



  1. High resolution monitor show visitor photo and temperature.
  2. Automatically detect temperature, no need waiting;
  3. Quick response, detect body temperature in 1 second;
  4. Audible alarm for high temperature passengers;
  5. Non-contact temperature sensor, avoid cross infection;
  6. Indoor use, please avoid high temperature and direct sunlight;
  7. Can detect ferrous and non-ferrous metal articles.
  8. Four light bars show metal threats location, visible from any angle;
  9. Metal Detector sensitivity adjustable from 1-300;
  10. Different volume alarm for metal threats;
  11. Alarm language: English, French, Italy, German, Spanish, German, Traditional Chinese
  12. 7*24h Non-stop working
  13. Easy installation


Technical specification


Electrical current AC100V~240V 50/60Hz
Power 10W
Work environment -20℃~+45℃
Gross Weight 70kg
Outer frame 2220mm (h) x 820mm (w) X 522mm (d)
Inner frame 2000mm (h) X 700mm (w) X 522mm (d)


Thermal Camera:


Basic data Visible light imaging: -40℃-80℃
Infrared thermal imaging: -10℃-75℃
Power: USB supply 5v+/- 10%
Power consumption: <1.6W
Infrared thermal camera Silicon oxide un-cooled infrared focal plane detector
Maximum image size: 356*192
Angle of view: 57 degree
Wave band: 8μm~14μm
Brand: Onsen from USA
Visible light camera Sensor: 1080P
2 milion pixels
Angle of view: 60 degree
Temperature measurement range: 30℃-45℃ (deviation < 0.3℃)





Color LED, high resolution, high contrast, high brightness, fast response,

no flickering screen, accurate tracking of moving objects.


Size 10.1 inch(16:10)
Resolution 1280*800
Contrast 500:1
Brightness 300cd/m2
Color system PAL/NTSC
Temperature Operating 0℃-50℃,storage:-20℃-80℃
Power 12V DC 2.0A
Power consumption 10W
Size 246*169*32mm
