Fixed Under Vehicle IP68 Explosive Inspection Machine

China Fixed Under Vehicle IP68 Explosive Inspection Machine supplier

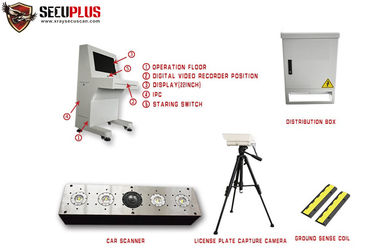

Large Image :  Fixed Under Vehicle IP68 Explosive Inspection Machine

Product Details:

Place of Origin: CHINA
Brand Name: SECUPLUS
Certification: CE, ISO9001, FCC, RoHS
Model Number: SPV-3300

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: WOODEN BOX
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100 UNITS PER MONTH
Contact Now
Detailed Product Description
Camera: To Capture Driver Face Water Proof: IP68
Alarm: Auto Alert Material: Stainless Steel
Function: To Check Under Car Bomb Display: 22 Inch Monitor
Scanning Image: Color ALPR: To Read Car Plate
High Light:

ip68 vehicle safety inspecting system

,

50t car surveillance system

fixed under vehicle explosive inspection machine vehicle safety inspecting system in government , expo
alarm Intelligent Vehicle Undercarriage Scanner system with ALPR system in bus station, building
vehicle system detector scanner to  Capture Driver Face  for surveillance-
Foreign object Detection (FoD) under car inspection system for security in border, checkpoint

-----has vehicle plate number recognize software
---- Vehicle security control at the entrance
----- To see what’s hidden under the vehicle




    SECUPLUS SPV-3300 Under Vehicle Surveillance System is the fixed solution for the fully identification of threats or modifications to a vehicle’s undercarriage. It can quickly and accurately identify threats , contraband objects and stowaway who are hidden at the bottom. Vehicles drive over the embedded scanning units while SECUPLUS’s systems compile high-resolution images of a vehicle’s undercarriage to create the vehicle’s --fingerprint." It’s easy to see any threatening objects that may be hidden on top of an axel or crossbeam. An overview/driver camera captures the normal view of car/driver and displays this on the high-resolution monitor .


Features:

1.  Multi entrance management model, management, and statistics of entering and exiting vehicles
2.  Auto digital line scan, high-resolution undercarriage imaging.
3.  High automation, easy to be used
4.  Applicable to variety of vehicles, wide vision.
5.  Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
6 . Undercarriage image can be stored, retrieved, searched  or compared with other images.
7.  Avariety of image processing methods: enlarge, stretching and cutting.



Embedded Frame :



1) Material : stainless steel
2) Dimension: 1200mm x 350mm

3) Water-proof grade: IP68

4) Load bearing Weight: 50T

5) Image resolution: 12000*6144



Color CCD Line Scan camera :



1) Resolution: 5000* 2048 pixels,

2) Camera view: > 170° & Pixels size: 14μm*14μm

3) Line rate(max)19kHz & linear array: 28mm

4) ADC Resolution: 12 bit & Responsivity : 41V/uJ/cm2

5) Type : color 6) Power Supply: 24VDC, 3A

7) Transfer interface/distance : Gigabit Ethernet/100m

8) Sealed unit to protect against heat, dust, water and vibration

9) Operating Temperature Range: -35 ℃ to +60 ℃



LED Illumination: LED light for clear image in day and night



1) Power Supply: 24VDC, 320W

2) LED light service life: 50,000 hours
3) Operating Temperature Range: -35 ℃ to +6



Computer :

1 . Brand: Grantech (SYM76941VGGA)
2 . CPU: Intel(R)Celeron(R)CPU  E3400 , 2.6GHz 2.59 GHz
3 . Memory:2G( optional 4G)
4 . Graphics:512M
5 . Hard Disk:SATA2 Hard Disk 500G
6 . Dual LAN (At least one Intel Gigabit)
7 . USB2.0 (Up to 2 pieces)
8 . Monitor: 22inch LCD, resolution up to 1920*1080
9 . Scene Video Record: 4 channel, Compression algorithm of scene video: H264

  Optional :

* ALPR-Automatic License Plate Recognition software : via IP Camera captures license plate, ALPR software    processing and automatically presents license plate on screen
* Driver Face Capture Camera : Provides picture of driver and/or view of vehicle. Image is presented on screen along with under vehicle images.
* Screen Video display: displays live video feed from overview camera on operator terminal screen.
* To connect anti-collision system, barrier, etc
* To compatibly packing management solution

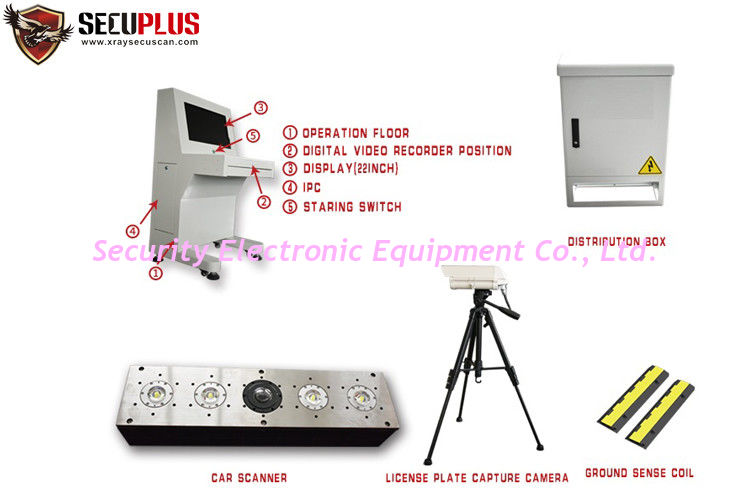

Fixed Under Vehicle IP68 Explosive Inspection Machine 0Fixed Under Vehicle IP68 Explosive Inspection Machine 1
