Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 620 * 420 Mm | Belt Load: | 170kg |
|---|---|---|---|
| Belt Speed: | 0.2 M/s | Image: | Color |
| Computer System: | Windows 7 | Software: | Multi-language Support |
| Remote: | Remote Workstation | Display: | 17'' Monitor |
| Storage: | 500GB | Multi-energy: | Identify Organic And Non-organic Objects |
| High Light: | contraband x ray cargo scanner,17'' monitor x ray luggage scanner |
||

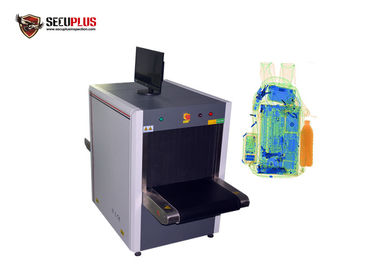

13 kinds of image processing functions and 6 kinds of pseudo color;
Technical data:
| Tunnel size | 620*420mm (w*h) |
| Conveyor speed | 0.20m/s |
| Conveyor height | 693mm |
| Max Load | 170kgs |
| Wire Resolution | 38AWG |
| Spatial resolution | vertical:diameter 1.0mm,horizontal:diameter 1.0mm |
| Penetration | 38mm steel panel |
| Monitor | 21.5 inch,resolution 1280*1024 |
| X Ray generator anode voltage | 160KV |
| Cooling/operation cycle | Oil Cooling /100% |
| X ray Dose per inspection | <0.16 μSv |
| Image processing | Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image |
| Zoom | Variable zoom up to 64X, support continuous magnification. |
| Image Checking | Continuous check back image |
| Storage capacity | Can store more than 100,000 image |
| Radiation leakage | <0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements. |
| Film safety | In accordance with ASA/ISO1600 film safe standard |
| System function | F programmable key,high density alarm,TIP；date/time display,baggage Count,User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
| Optional function | Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up |
| Frame size |
1880*858*1256mm (L*W*H)(L*W*H) |
| Weight | 450kg |
| Environment temperature/humidity | - 10℃～+50℃ / 5%～95%(non-condensing) |
| Storage temperature/humidity | -40℃～+60℃ / 5%～95%(non-condensing) |
| Power | 220VAC (+/-10%) 50+/-3HZ |
| Consumption | 0.6KvA |
| Noise Level | <55db |
