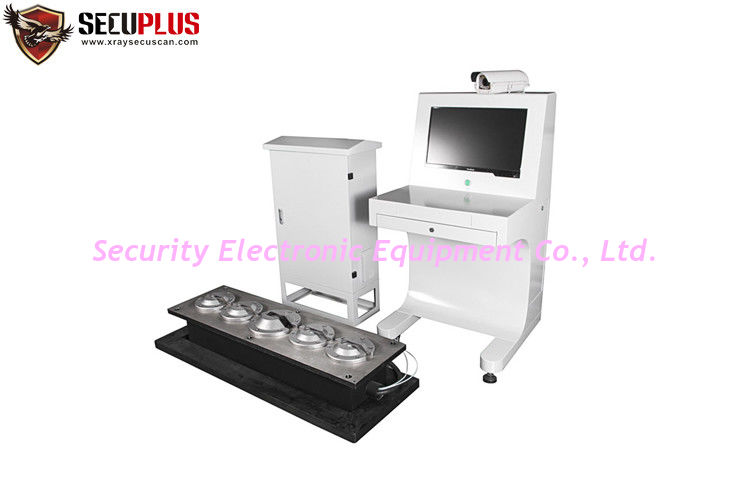

Stainless Steel Under Vehicle Surveillance System UVSS Integrated With ANPR SPV-3300

Stainless Steel Under Vehicle Surveillance System  UVSS Integrated With ANPR SPV-3300
Stainless Steel Under Vehicle Surveillance System  UVSS Integrated With ANPR SPV-3300 Stainless Steel Under Vehicle Surveillance System  UVSS Integrated With ANPR SPV-3300 Stainless Steel Under Vehicle Surveillance System  UVSS Integrated With ANPR SPV-3300

Large Image :  Stainless Steel Under Vehicle Surveillance System UVSS Integrated With ANPR SPV-3300

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: ISO, CE
Model Number: SPV-3300
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 5-7days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100Sets/month
Detailed Product Description
Material: Stainless Steel Scanning Mode: Linear Scan, Ground Coil Trigger
Water-proof Grade: IP68 Image Resolution: 12000 *6144
Load Bearing Weight: 50Ton Image: Black/white (color Optional)
Under Vehicle System: For Embassy,Hotel,Villa,Airport Resolution: 5000* 2048 Pixels
Vehicle Speed: 1-60Km/h, Suggest ≤1-30km/h Under Vehicle Inspection:: Without Stop The Vehicle
High Light:

under vehicle inspection systems

,

car surveillance system

Advanced Under Vehicle Surveillance System UVSS Integrated with ANPR SPV-3300(SECUPLUS)







Features:

1. Multi entrance management model, management, and statistics of entering and exiting vehicles
2. Auto digital line scan, high-resolution undercarriage imaging.
3. High automation, easy to be used
4. Applicable to variety of vehicles, wide vision.
5. Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
6 . Undercarriage image can be stored, retrieved, searched or compared with other images.
7. Avariety of image processing methods: enlarge, stretching and cutting.
8. ALPR-Automatic License Plate Recognition and RFID technology. associative storage of various vehicle information and undercarriage images.(Optional)


Advantage of UVIS under vehicle scanner:

1. No need to park vehicle, can bear speed below 50km/h
2. Whole image display ion monitor
3. Operator can zoom and save image
4. Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles.
5. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom.
6. UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources


General Specifications:

Features Automatic digital line scan camera, with high-resolution and clarity of the image.
The complete image of under vehicle scanning, without any omissions,
and the image is clear, complete, no distortion, can be clearly observed that the object
is not less than 2mm in diameter.
Preparation of inspection processes to meet a variety of on-site needs.
Multiple scene image monitoring, recording function.
Multi-language user interface design.
Strong scalability to easily achieve a variety of system linkage control.
ALPR(Automatic Licence Plate Recognition) (Optional)
Multiple devices networked control functions(Optional)

General Specifications
Technical parameters Embedded screening parts:
Camera: Sensor: line scan CCD
Resolution: 5000*2048 pixels
Power Supply: 24VDC, 3A
Illumination: LED, Power Supply: 24VDC,150W
Size: 1200mm x 350mm
Storaging Temperature Range -25 degree to +70 degree

Controller:
Input: 2 channels induction coil
Output: 1 Channel switch type 12VDC
Communication port: RS485, Ethernet(Optional)
Operating Temperature: -10ºC to 55ºC

System host
System host Brand: Grantech (UFO6377H-SP1-953)
CPU: Intel® Core(TM) 2 Duo CPU
P8600@2.4GHz or higher
Memory:2G( optional 4G)
Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine
Hard Disk:SATA2 Hard Disk 500G
Dual LAN (At least one Intel Gigabit)
USB2.0 (Up to 4 pieces)
Monitor: 22inch LCD, resolution up to 1920*1080
Scene Video Record: 4 channel, Compression algorithm of scene video: H264



RFQ:

Are you manufacturer?

Yes, we are professsional manufacturer of security threats detection system in south of China.
Stable quality and foremost service always be the key that we focus on.

How many days we can get the machine after payment?
Normally, with stock only need 3-5 days for leading time.
Without stock, need 10-15 days to manage the production.
Delivery by sea, air for your choices.

How about the warranty and services?
Provide one year warranty and lifetime technic support.
Accept to send our engineer to your country for training in additional cost.
Free training one-on-one in our factory for free.
