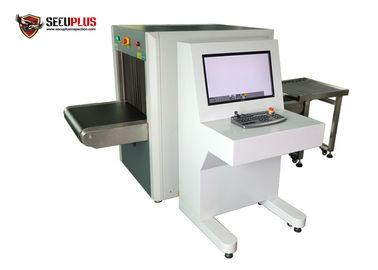

Secuplus Hotel X Ray Scanning Baggage Scanner Machine 160KV SPX-6040 With CE Approval

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

Secuplus Hotel X Ray Scanning Baggage Scanner Machine 160KV SPX-6040 With CE Approval

Secuplus Hotel X Ray Scanning Baggage Scanner Machine 160KV SPX-6040 With CE Approval
Secuplus Hotel X Ray Scanning Baggage Scanner Machine 160KV SPX-6040 With CE Approval
video play

Large Image :  Secuplus Hotel X Ray Scanning Baggage Scanner Machine 160KV SPX-6040 With CE Approval

Product Details:
Place of Origin: CHINA
Brand Name: SECUPLUS
Certification: CE, FDA, ISO9001
Model Number: SPX-6040
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden box
Payment Terms: Western Union, L/C, T/T
Supply Ability: 300 sets per month
Detailed Product Description
Material: Stainless Steel Display: LED Monitor
Network: Connect Several Machines Alert: Audio And Visual
Beam Direction: Diagnal Generator Voltage: 160KV
Keyboard: With Touch Screen Function Software: Multi-language
High Light:

airport security x ray machine

,

airport x ray machine

 Secuplus hotel SPX-6040 Xray scanning baggage scanner with CE approval



  SPX-6040 X ray inspection  system can automatically detect Explosives, Narcotics, Weapons and other threat items in real time during the scanning process by visibly highlighting a potential threat on x-ray images. Automatic dense area detection and should give visual alert. Organic & Inorganic Stripping and Image Enhancement Features.



S. No. Technical Specification Details Specification requirements
1. General Specification:
  Tunnel dimension: Width 620 mm , Height 420 mm
  Mechanical construction: Steel construction with steel panels, mounted on roller castors
  Conveyor height: 665mm
  Conveyor type: Endless bonded with no metallic joints, must be continuous piece and cannot be equipped with zippers or stitches/staples
  Conveyor speed: Approx. 0.2 m/s (adjustable)
  Conveyor load capacity: ≥170 Kg, Distributed over the whole conveyor belt
  Flow of conveyor belt: Bidirectional
  Resolution, wire delectability; Standard 40 AWG
  Penetration, steel: Standard 35 mm
  X - ray dose per inspection: ≤2 µ SV
  Film safety: Guaranteed up to ISO 1600
  Power supply: single Phase 230VAC ± 10%, 50 Hz±5%
  Power protection: On-line UPS with back up min. 15 mins, LCD Display & SNMP interface for remote monitoring of conditions.
  Power consumption Maximum 1 KVA
  Rodent protection: Fully rodent protected
  Radiation leakage: ≤ 0. 2 mrem/hr
  Duty cycle: 100 %, No warm up procedure required
  Operational environment:
  Operating temperature: 0 °c to + 40 ° c
  Humidity: 10 % - 90% , non condensing

2. X- Ray Generator:
  X-ray generator: Maintenance free
  Cooling/Housing: Hermetically sealed oil bath in a single tank with internally bellow expansion module with no oil breathing tube.
  Operational Power Operating at 160 KV
  Beam divergence: 80°
  Beam direction

View A Diagonal from side/ View B: Diagonal from Top to bottom


3. Image Generating & Processing System:
  X - ray convertor: L - shaped detector array
  Number of x-ray detector: 1280 photo diodes, Minimum
  Number of X - ray absorption 65536 gray levels & for color image grey level should be assigned to 256 colors(min.)
  Image presentation: Color and black / white

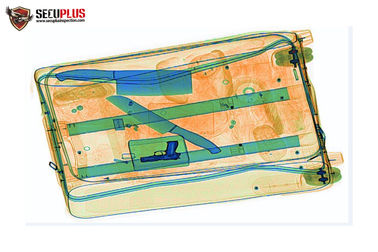

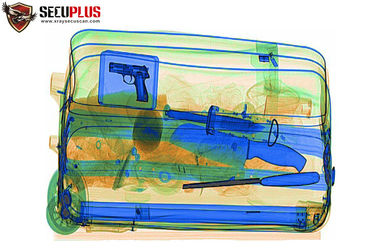

  Image Display mode: The normal images shall be displayed as follows:-
  1. Organic : Orange color
  2. Inorganic/metallic : Blue color
  3. Overlapping between organic and inorganic : Green color
  Image Resolution: 1280 X 1024/24 bits minimum
  Image Recall: At least 8 preceding images
  Image Zoom: Continuous zoom both in zooming in/out and also positioning of the zoomed area with minimum 64 times, allowing to gradually enlarge x-ray images without any steps,
4. System Controller:
  CPU: Industrial Grade Type, 2 GHz(min.)
  Hard drive: ≥ 500 GB, shock absorber mounted hard drive
  Memory: ≥ 2 GB RAM
  USB drive:  Minimum
  Monitor: 17" Color Flat Monitors, Qty-2, resolution 1280*1024(min.)
  Redundant Memory for S/W boot in case of internal hard disk failure Flash
5. Additional Features: Shall have the following ional features

  1. Control desk with locking facility
  2. Photo sensor at the entry and exit of tunnel for starting generator
  3. Scanned baggage counter online display & External display for scanned baggage, X-ray hours
  4. User/operator log in ID display online
  5. Date and time display online
  6. Operating mode display
  7. Categorizing explosives, narcotics or undesired substances
  8. Luggage marking system(acoustic)
  9. High function to identify object obscured by high absorbing material, the contrast of darker objects is increased and at the same time low observing objects are filtered out.
  10. Low function to identify low absorbing objects, through this function low absorbing items become more clearly visible.
  11. Neg function to create high observing objects appear bright and low absorbing objects appear dark.
  12. Organic only, organic stripping and inorganic for inorganic stripping
  13. Vari edge enhancement function to display those objects whose absorption range lie within the selected range.
  14. Super enhancement function to obtain the highest detail resolution
  15. High Density alert function to alert the user about the presence of high absorbing material by drawing a frame around such objects.
  16. Operator, Supervisor and Service Level User access.
  17. Automatic diagnostic features & generation of code for faults & errors
  18. Shall have functions to conduct diagnostic tests: Generator test, Conveyor belt test, Detector Line test, photo sensor test, emergency light test.
  19. Shall have at least five Emergency stop switch
6. Control Panel Shall have at least following keys/switches, buttons and indicators:-

  1. Power on/off key switch
  2. Emergency stop buttons
  3. System on and X - ray on indicators
  4. Image processing keys
  5. Automatic detection Function keys(explosive, narcotics, high density materials alerts
  6. Step and stepless zoom both
  7. Conveyor belt control keys
  8. Indicator of conveyor Directions
  9. Soft touch switches for image zoom operation
  10. Image review and resume keys
  11. Variable edge on enhancement
7. Threat Image Projection (TIP): This feature shall be active, the function shall be capable of feeding Suspicious images to the operation screen during normal scan operations on-line in real time, the function shall be operable when other functions are enabled, i.e. without the necessity to disable other functions. The system shall have TIP with enhanced performance x-ray simultaneously.
8. Operator Training System: This feature shall be active
9. Image Management System: Shall have both options of manual and auto archive for the images of the scanned baggage items, at least 50,000 image files, images can be saved on different folder, external media or remote computer via n/w.
10. Images reproduction application software Shall provide the archived images reproducing application software for the analysis on a remote computer.
11. Safety and international standard certification: with CE ISO 9001,ISO 14001, OHSAS 18001certification
12 Networking: Shall have the networking provision for remote monitoring and image management, automatic transmission of x-ray images to an external via network in standard commercial formats jpg, tif, bmp etc
13 Accessories: Standard brackets, cable with connectors, user manuals (hard copy as well as soft copy) and the X- ray System's backup software shall be furnished, Maintenance tool kit - each set with each unit
